The SunDiag main window is divided into four small windows:
•
The system status window at the upper-left of the screen displays the status
of the tests.
•
The performance monitor panel in the upper-middle of the screen displays
the performance statistics for the system that is under test.
•
The control panel is located at the right. The panel includes buttons,
exclusive choice, toggle, and pop-up menus that allow you to select test
parameters and options.
•
The console window at the bottom-left displays test messages, and allows
you, as a superuser, to use operating system commands.

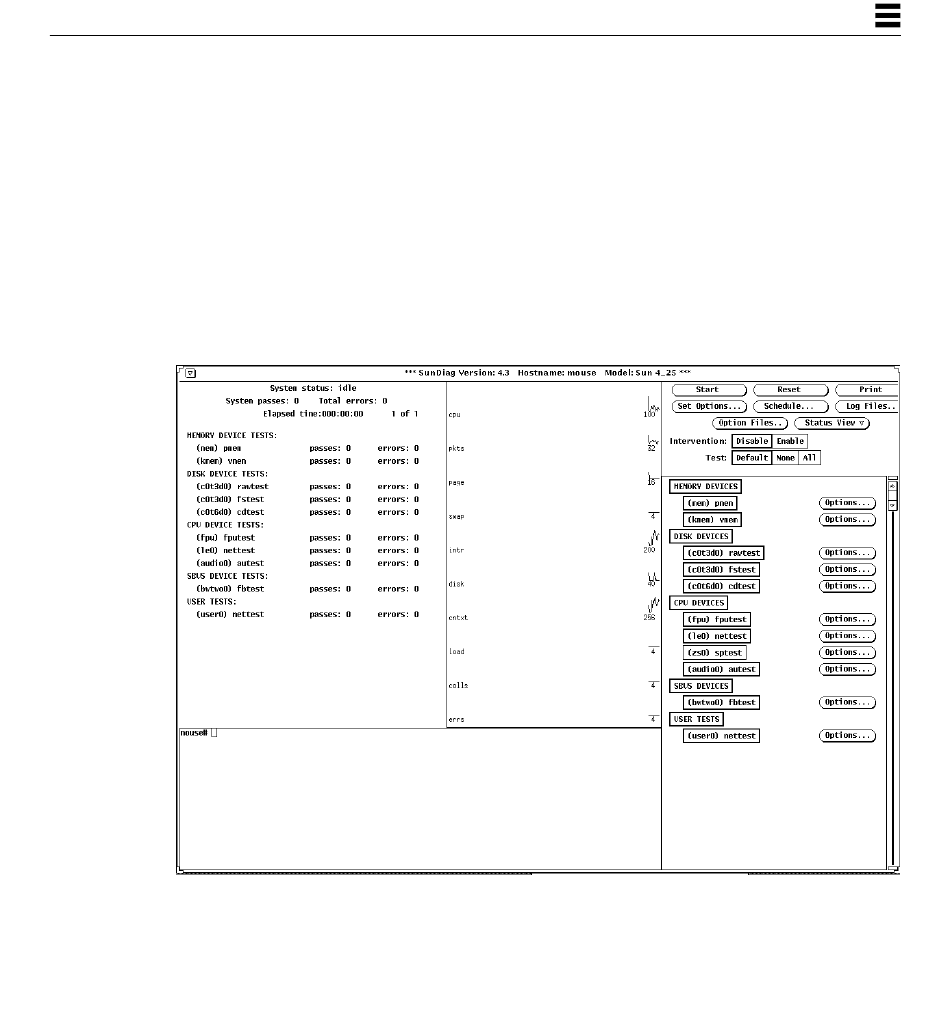

Figure B-1 SunDiag Main Window
