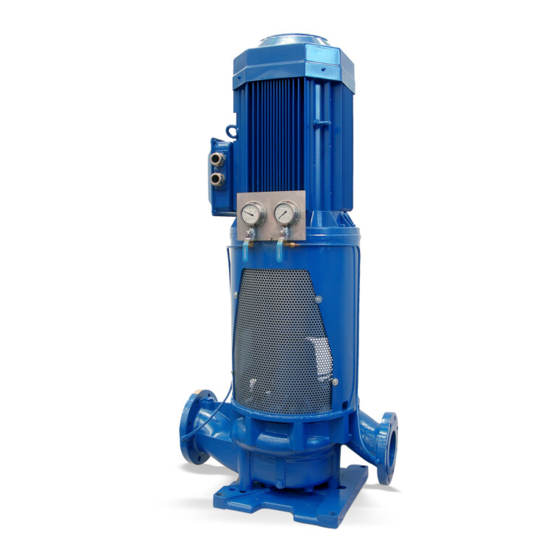

In-line Pump
ILN / ILNC / ILNR
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KSB ILN

Summary of Contents for KSB ILN

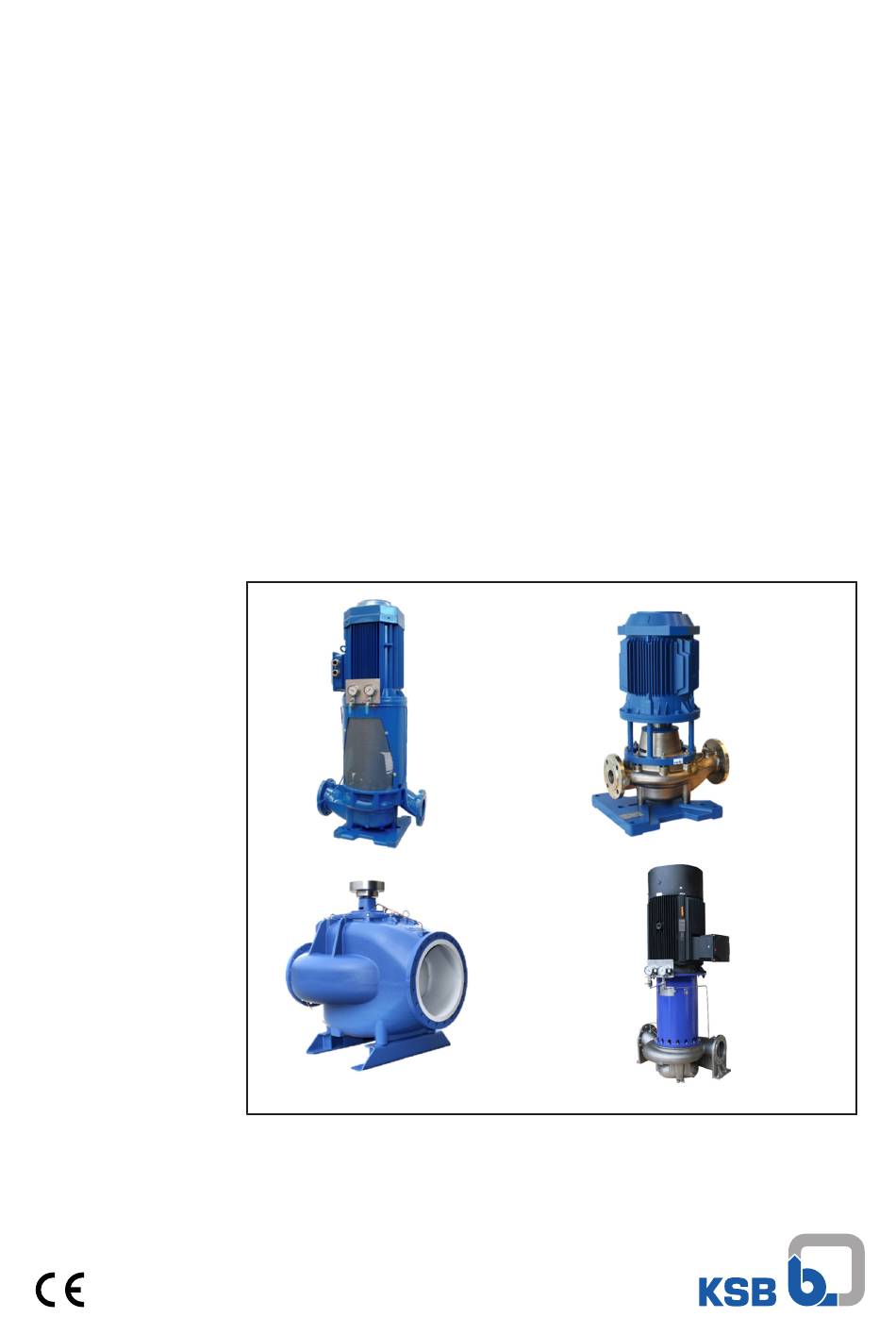

  • Page 1 In-line Pump ILN / ILNC / ILNR Operating Manual...
  • Page 2 Legal information/Copyright Operating Manual ILN / ILNC / ILNR Original operating manual All rights reserved. The contents provided herein must neither be distributed, copied, reproduced, edited or processed for any other purpose, nor otherwise transmitted, published or made available to a third party without the manufacturer's express written consent.
  • Page 3 Machine without drive, additional components or accessories Pump set Complete pump set consisting of pump, drive, additional components and accessories Suction lift line/suction head line The pipeline which is connected to the suction nozzle ILN / ILNC / ILNR 3 of 92...

  • Page 4: Table Of Contents

    Safety regulations............................ 25 Checks to be carried out prior to installation.................... 25 Installing the pump set .......................... 25 Piping ................................ 26 5.4.1 Connecting the piping........................ 26 5.4.2 Permissible forces and moments at the pump nozzles.............. 28 5.4.3 Auxiliary connections......................... 29 ILN / ILNC / ILNR 4 of 92...
  • Page 5 Installing the pump set: ILNC ...................... 58 7.5.4 Installing the pump set: ILNR ...................... 60 Tightening torques............................ 62 7.6.1 Tightening torques for ILN/ILNC ....................... 62 7.6.2 Tightening torques for the impeller nut of ILN/ILNC .............. 63 7.6.3 Tightening torques for ILNR...................... 63 Spare parts stock............................. 63 7.7.1 Ordering spare parts.......................... 63 7.7.2 Recommended spare parts stock ...................... 63...
  • Page 6 9.2.1 Wiring diagram of priming system using auxiliary pump ............... 84 9.2.2 Wiring diagram of priming system using ejector ................ 85 Certificate of Decontamination...................... 86 EU Declaration of Conformity ...................... 87 Index .............................. 88 ILN / ILNC / ILNR 6 of 92...

  • Page 7: General

    In the event of damage, immediately contact your nearest KSB service facility to maintain the right to claim under warranty. 1.2 Installation of partly completed machinery To install partly completed machinery supplied by KSB refer to the sub-sections under Servicing/Maintenance.

  • Page 8: Symbols

    Machine damage In conjunction with the signal word CAUTION this symbol indicates a hazard for the machine and its functions. ILN / ILNC / ILNR 8 of 92...

  • Page 9: Safety

    ▪ Never open the discharge-side shut-off elements further than permitted. – The maximum flow rates specified in the product literature or data sheet would be exceeded. – Risk of cavitation damage ▪ Observe all safety information and instructions in this manual. ILN / ILNC / ILNR 9 of 92...

  • Page 10: Personnel Qualification And Training

    ▪ If stopping the pump does not increase potential risk, fit an emergency-stop control device in the immediate vicinity of the pump (set) during pump set installation. ▪ Observe the application limits of the fluid handled. ILN / ILNC / ILNR 10 of 92...

  • Page 11: Safety Information For Maintenance, Inspection And Installation

    Refer to the data sheet for the applicable temperature class. 2.9.2 Repair Special regulations apply to repair work on explosion-proof pumps. Modifications or alterations of the pump set may affect explosion protection and are only permitted after consultation with the manufacturer. ILN / ILNC / ILNR 11 of 92...

  • Page 12: Transport/Storage/Disposal

    1. On transfer of goods, check each packaging unit for damage. 2. In the event of in-transit damage, assess the exact damage, document it and notify KSB or the supplying dealer and the insurer about the damage in writing immediately.

  • Page 13: Storage/Preservation

    Disconnect the control cabinets and place them in a vertical position. ▪ Check that the coating is in good condition. If the coating needs to be touched up, contact KSB for the coating specification. ▪ Preserve wetted components made of low-alloy materials. Commercially available preservatives can be used for this purpose.

  • Page 14: Return To Supplier

    2. Separate and sort the pump materials, e.g. by: - Metals - Plastics - Electronic waste - Greases and other lubricants 3. Dispose of materials in accordance with local regulations or in another controlled manner. ILN / ILNC / ILNR 14 of 92...

  • Page 15: Description Of The Pump (Set)

    ▪ Information on dismantling, recycling and disposal after decommissioning: (ð Section 3.5, Page 14) ▪ Information on benchmark efficiency or benchmark efficiency graph for MEI = 0.70 (0.40) for the pump based on the model shown in the Figure are available at: http://www.europump.org/efficiencycharts ILN / ILNC / ILNR 15 of 92...

  • Page 16: Designation

    Description Standard Non-standard (BT3D, BT3) Shaft seal type Single mechanical seal, internal circulation 22-23 Seal code Q1Q1VGG Q1Q1EGG BQ1EGG Q1Q1VMM AQ1PGG Scope of supply Pump only (Fig. 0) Pump set Special design Blank ILN / ILNC / ILNR 16 of 92...
  • Page 17 Other inspection agency 28-31 Motor rating P [kW] 0030 1320 0075 0007 0,75 Number of motor poles 2 poles 4 poles 6 poles 8 poles Motor efficiency No classification Product generation ILN/ILNC/ILNR from 2017 ILN / ILNC / ILNR 17 of 92...

  • Page 18: Name Plate

    ▪ Type of construction IM V1 ▪ Frequency 50 Hz/60 Hz ▪ Enclosure IP55 ▪ 230/400 V and 400/690 V Shaft seal ▪ Mechanical seal Impeller type ▪ Closed radial impeller Double-suction design for sizes 350-300-330 and 500-400-430 ILN / ILNC / ILNR 18 of 92...

  • Page 19: Design Details Ilnc

    – Closed deep groove ball bearing or closed double-row angular contact ball bearing – Greased for life Automation Automation options: ▪ PumpDrive ▪ PumpMeter For operation on a frequency inverter consultation with KSB is required. 4.5.2 Design details ILNC Design ▪ Close-coupled design / in-line design ▪ Vertical installation ▪ Single-stage ▪ Single-suction Pump casing ▪...

  • Page 20: Design Details Ilnr

    – Greased for life ▪ Lower bearing: – Closed deep groove ball bearing – Greased for life Automation Automation options: ▪ PumpDrive ▪ PumpMeter For operation on a frequency inverter consultation with KSB is required. ILN / ILNC / ILNR 20 of 92...

  • Page 21: Configuration And Function

    Impeller Discharge nozzle Design ILN/ILNR: The hydraulic system is connected to the motor (5) via a coupling (6). The impeller (10) is fitted on the pump shaft; the rotor is fitted on a separate drive shaft. ILNC: The hydraulic system and the motor (5) are connected via a stub shaft and form a close-coupled unit.

  • Page 22: Configuration And Function Of Ilns/Ilncs Pump Sets With Auxiliary Pump

    ▷ Set duration T2 to a maximum of 5 seconds or to the star-delta start-up time. ▷ The total runtime of the auxiliary pump must not exceed 15 seconds. T1: duration until the main pump starts up T2: duration until the solenoid valve is closed ILN / ILNC / ILNR 22 of 92...

  • Page 23: Configuration And Function Of Ilne/Ilnce Pump Sets With Ejector

    Depending on the model, the following items are included in the scope of supply: ▪ Pump T1: duration until the main pump starts up T2: duration until the solenoid valve is closed ILN / ILNC / ILNR 23 of 92...

  • Page 24: Dimensions And Weights

    Drive ▪ Surface-cooled IEC frame three-phase squirrel-cage motor Special accessories ▪ As required 4.8 Dimensions and weights For dimensions and weights refer to the general arrangement drawing/outline drawing of the pump/pump set. ILN / ILNC / ILNR 24 of 92...

  • Page 25: Installation At Site

    ▷ Observe the information in the data sheet and on the name plates of pump and motor. NOTE KSB can provide support for the selection of a piping system and foundation by means of the required data and recommendations. However, the responsibility regarding selection, installation and operation of these components lies with the plant engineer or the corresponding companies commissioned.

  • Page 26: Piping

    Incorrect earthing during welding work at the piping Destruction of rolling element bearings (pitting effect)! ▷ Never earth the electric welding equipment on the pump or baseplate. ▷ Prevent current flowing through the rolling element bearings. ILN / ILNC / ILNR 26 of 92...
  • Page 27 Use a filter with laid-in wire mesh (mesh width 0.5 mm, wire diameter 0.25 mm) of corrosion-resistant material. Use a filter with a filter area three times the cross-section of the piping. Conical filters have proved suitable. 4. Connect the pump nozzles to the piping. ILN / ILNC / ILNR 27 of 92...

  • Page 28: Permissible Forces And Moments At The Pump Nozzles

    1950 1300 1550 2250 2500 2000 1350 1050 250-200-400 2790 3130 2530 1975 1325 1575 2250 2510 2025 1375 1075 250-200-500 2790 3130 2530 1975 1325 1575 2250 2510 2025 1375 1075 ILN / ILNC / ILNR 28 of 92...

  • Page 29: Auxiliary Connections

    The mechanical seal is cooled by the circulation of the fluid handled. NOTE On pumps with a priming system a check valve must be fitted in the discharge line immediately downstream of the pump. ILN / ILNC / ILNR 29 of 92...

  • Page 30: Checking The Coupling Alignment

    ▷ Insulate the volute casing. ▷ Fit protective guard. CAUTION Heat build-up in the bearing bracket Damage to the bearing! ▷ Never insulate the bearing bracket, bearing bracket lantern and casing cover. ILN / ILNC / ILNR 30 of 92...

  • Page 31: Electrical Connection

    2. Observe the manufacturer's product literature supplied with the motor. DOL starting The motor can be wired in star configuration or delta configuration. The voltage and wiring are stamped on the name plate of the motor. ILN / ILNC / ILNR 31 of 92...

  • Page 32: Connecting The Priming System

    Risk of injuries, damage to the pump! ▷ Always disconnect the pump set from the power supply and secure it against unintentional start-up before inserting your hands or other objects into the pump. ILN / ILNC / ILNR 32 of 92...
  • Page 33 The motor's direction of rotation must match the arrow indicating the direction of rotation on the pump. 3. If the motor is running in the wrong direction of rotation, check the electrical connection of the motor and the control system if applicable. ILN / ILNC / ILNR 33 of 92...

  • Page 34: Commissioning/Start-Up/Shutdown

    ▪ After prolonged shutdown of the pump (set), the activities required for returning the equipment to service have been carried out. (ð Section 6.4, Page 41) 6.1.2 Filling in the lubricant Versions ILN, ILNC and reinforced sizes of version ILNR The bearings are closed and grease-packed for life. They do not need to be re- greased.
  • Page 35 ▷ The total runtime of the auxiliary pump must not exceed 15 seconds. NOTE Electric control devices for the auxiliary pump are not included in the scope of supply unless explicitly agreed. ILN / ILNC / ILNR 35 of 92...

  • Page 36: Start-Up

    ▷ Never operate the pump with the shut-off elements in the suction line and/or discharge line closed. ▷ Only start up the pump set with the discharge-side shut-off element slightly or fully open. ILN / ILNC / ILNR 36 of 92...
  • Page 37 Seal leakages at operating temperature Leakage of hot or toxic fluid handled! ▷ Once the operating temperature has been reached, re-tighten the hexagon socket head cap screws between casing and casing cover. ILN / ILNC / ILNR 37 of 92...

  • Page 38: Shutdown

    6.2.1 Ambient temperature CAUTION Operation outside the permissible ambient temperature Damage to the pump (set)! ▷ Observe the specified limits for permissible ambient temperatures. Observe the following parameters and values during operation: ILN / ILNC / ILNR 38 of 92...

  • Page 39: Frequency Of Starts

    The below calculation formula determines the minimum flow rate for fluids whose physical properties differ from water: Maximum permissible flow rate for the pump Unless specified otherwise in the characteristic curves or in the data sheets, the following applies: = 1.1 × Q ILN / ILNC / ILNR 39 of 92...

  • Page 40: Maximum Permissible Speed

    6.2.3.4 Fluid temperature The maximum permissible fluid temperature is indicated in the data sheet or ATEX declaration of conformity. For a higher fluid temperature consultation with KSB is required. 6.2.3.5 Viscosity of the fluid handled The power input of the pump set will change in proportion to the viscosity of the fluid handled.

  • Page 41: Shutdown/Storage/Preservation

    ▷ As soon as the work is completed, properly re-install and re-activate any safety- relevant devices and protective devices. NOTE If the equipment has been out of service for more than one year, replace all elastomer seals. ILN / ILNC / ILNR 41 of 92...

  • Page 42: Servicing/Maintenance

    NOTE All maintenance work, service work and installation work can be carried out by KSB Service or authorised workshops. For contact details refer to the enclosed "Addresses" booklet or visit "www.ksb.com/contact" on the Internet.
  • Page 43 CAUTION Operation outside the permissible bearing temperature Damage to the pump! ▷ The bearing temperature of the pump (set) must never exceed 90 °C (measured on the outside of the motor housing). ILN / ILNC / ILNR 43 of 92...

  • Page 44: Inspection Work

    ▷ Clean filter at appropriate intervals. 7.2.2.2 Lubrication and lubricant change of rolling element bearings Versions ILN, ILNC and reinforced sizes of version ILNR The bearings are sealed on both sides, they are grease-packed and maintenance-free. For this reason, the pump is not equipped with a lubricating nipple.
  • Page 45 Impeller, rings Checking for wear Dismantling the casing, visual Annually inspection Shaft, bearing Checking for wear Dismantling the support, Annually visual inspection Flexible coupling Replacing the coupling (ð Section 7.5.2.5, Page 58) Every 6 months If applicable ILN / ILNC / ILNR 45 of 92...

  • Page 46: Drainage/Cleaning

    For dismantling and reassembly, refer to the general assembly drawing. NOTE All maintenance work, service work and installation work can be carried out by KSB Service or authorised workshops. For contact details please refer to the enclosed "Addresses" booklet or the Internet at "www.ksb.com/contact“.

  • Page 47: Preparing The Pump Set

    1. De-energise the pump set and secure it against unintentional start-up. 2. Reduce pressure in the piping by opening a consumer installation. 3. Disconnect and remove all auxiliary pipework. 7.4.3 Dismantling the pump set: ILN 7.4.3.1 Dismantling the complete pump set NOTE The pump casing can remain installed in the piping for further dismantling.
  • Page 48 3. Undo impeller nut 922. 4. Remove impeller 230. 5. Place impeller 230 on a clean and level surface. ð After the impeller has been removed, casing wear ring 502.2 is accessible. ILN / ILNC / ILNR 48 of 92...
  • Page 49 (ð Section 7.4.3.6, Page 49) have been observed/carried out. ü The bearing bracket has been placed in a clean and level assembly area. 1. Undo hexagon socket head cap screws 914.2. Remove bearing cover 360.2. 2. Remove bearing bushes 545.1/2. ILN / ILNC / ILNR 49 of 92...

  • Page 50: Dismantling The Pump Set: Ilnc

    4. Pull the back pull-out unit out of volute casing 102. 5. Place the back pull-out unit on a clean and level surface. ð After the back pull-out unit has been removed, casing wear ring 502.1 is accessible. ILN / ILNC / ILNR 50 of 92...

  • Page 51: Dismantling The Pump Set: Ilnr

    1. Disconnect the discharge nozzle and suction nozzle from the piping. 2. Depending on the pump/motor size, remove the supports from the pump set. 3. Remove the complete pump set from the piping. ILN / ILNC / ILNR 51 of 92...
  • Page 52 1. Undo impeller nut 922. 2. Remove impeller 230. 3. Place impeller 230 on a clean and level surface. ð After the impeller has been removed, casing wear ring 502.2 is accessible. ILN / ILNC / ILNR 52 of 92...

  • Page 53: Reassembling The Pump Set

    7.5.1 General information/Safety regulations WARNING Improper lifting/moving of heavy assemblies or components Personal injury and damage to property! ▷ Use suitable transport devices, lifting equipment and lifting tackle to move heavy assemblies or components. ILN / ILNC / ILNR 53 of 92...

  • Page 54: Assembling The Pump Set: Iln

    Prior to reassembly, screw back any forcing screws and adjusting screws. Tightening torques For reassembly, tighten all screws and bolts as specified in this manual. (ð Section 7.6, Page 62) 7.5.2 Assembling the pump set: ILN 7.5.2.1 Installing the bearing assembly Single-suction version General assembly drawings per pump size (ð Table 27) .
  • Page 55 6. Tighten hexagon head bolt 901.4. 7.5.2.2 Installing the mechanical seal The following rules must be observed when installing the mechanical seal: ▪ Work cleanly and accurately. ▪ Prevent any damage to the seal faces or O-rings. ILN / ILNC / ILNR 55 of 92...
  • Page 56 ▷ Use water as assembly lubricant. ▷ Never use oil or grease as assembly lubricant. NOTE When fitting the mechanical seal, wet the shaft protecting sleeve and stationary ring with water to prevent friction. ILN / ILNC / ILNR 56 of 92...
  • Page 57 2. Insert casing wear ring 502.1 into volute casing 102. 3. Insert the back pull-out unit into volute casing 102. 4. Tighten hexagon socket head cap screws 914. Observe the tightening torques. (ð Section 7.6, Page 62) ILN / ILNC / ILNR 57 of 92...

  • Page 58: Installing The Pump Set: Ilnc

    3. Insert the teeth of the pump-end coupling half into the flexible coupling elements of the drive-end coupling half . 4. For single-suction version ILN only: Fit and tighten spacer. After the motor has been mounted, (ð Section 7.5.2.6, Page 58) the coupling must be aligned.
  • Page 59 1. If required, suspend or support the back pull-out unit to prevent it from tilting. 2. Insert casing wear ring 502.1 into volute casing 102. 3. Insert the back pull-out unit into volute casing 102. ILN / ILNC / ILNR 59 of 92...

  • Page 60: Installing The Pump Set: Ilnr

    7. Press deep groove ball bearing 321 onto shaft 210 as far as it will go. 8. Insert circlip 932.1. 9. Press bearing cover 360 into bearing bracket 330 and tighten lower hexagon socket head cap screw 914. ILN / ILNC / ILNR 60 of 92...
  • Page 61 1. Fit casing wear ring 502.2 onto casing cover 161. 2. Insert key 940.1 and slide impeller 230 onto shaft 210. 3. Screw on and tighten impeller nut 922. Observe the tightening torques. (ð Section 7.6, Page 62) ILN / ILNC / ILNR 61 of 92...

  • Page 62: Tightening Torques

    1. Place the motor on drive lantern 341. 2. Tighten hexagon head bolts 901.1. 3. Align the pump and motor. (ð Section 5.5, Page 30) 7.6 Tightening torques 7.6.1 Tightening torques for ILN/ILNC Table 17: Tightening torques for bolts, screws and/or nuts Thread Steel Stainless steel...

  • Page 63: Tightening Torques For The Impeller Nut Of Iln/Ilnc

    7 Servicing/Maintenance 7.6.2 Tightening torques for the impeller nut of ILN/ILNC Table 18: Tightening torques for the impeller nut of ILN/ILNC Thread Tightening torques [Nm] M14x1,5 M20x1,5 M27x1,5 M33x1,5 M52x1,5 2000 7.6.3 Tightening torques for ILNR Table 19: Tightening torques for ILNR...
  • Page 64 Shaft sleeve Locking sleeve 11)12) Bearing bush Coupling Coupling part Impeller nut Circlip For design variant ILNR only For design variant ILN/ILNC only For double-suction design only For design variant ILN only ILN / ILNC / ILNR 64 of 92...
  • Page 65 Mechanical seal Valve Valve disc Hexagon head bolt Table 25: Spare parts for 5 years’ operation Part No. Description Quantity Valve Valve disc Impeller Gasket Joint ring O-ring Mechanical seal Hexagon head bolt ILN / ILNC / ILNR 65 of 92...

  • Page 66: Trouble-Shooting

    Re-balance the impeller. Replace the impeller. ✘ ✘ - Wear rings worn or fitted incorrectly. Replace the wear rings. Only for versions with automatic priming system Only for versions without automatic priming system ILN / ILNC / ILNR 66 of 92...
  • Page 67 Check and adjust compressed air ✘ ejector supply. ✘ - Incorrect operation of ejector Contact KSB - Discharge nozzle of ejector clogged Check discharge nozzle. ✘ ✘ Pressure set too high at pressure Contact KSB controller ILN / ILNC / ILNR 67 of 92...

  • Page 68: Related Documents

    300-250-400 ‒ ‒ ‒ ‒ ‒ ✔ ✔ 300-250-500 ‒ ‒ ‒ ‒ ‒ ✔ ✔ 350-300-400 ‒ ‒ ‒ ‒ ‒ ✔ ✔ 350-300-500 ‒ ‒ ‒ ‒ ‒ ✔ ✔ ILN / ILNC / ILNR 68 of 92...

  • Page 69: General Assembly Drawing 1 Iln

    9 Related Documents 9.1.1 General assembly drawing 1 ILN Fig. 11: General assembly drawing 1 ILN Table 28: List of components Part No. Description Part No. Description Volute casing Thrower Casing cover Washer Pump stool Pressure gauge Shaft 710.1/.2 Pipe ILN / ILNC / ILNR...
  • Page 70 Spring plate 940.1/.2 502.1/.2 Casing wear ring The relevant version is indicated in the product literature supplied. Not for ILNE and ILNS Bearing design depending on pump size Not on all versions ILN / ILNC / ILNR 70 of 92...

  • Page 71: General Assembly Drawing 2 Iln

    9 Related Documents 9.1.2 General assembly drawing 2 ILN Fig. 12: General assembly drawing 2 ILN Table 29: List of components Part No. Description Part No. Description Volute casing Thrower Casing cover Washer Pump stool Pressure gauge Shaft 710.1/.2 Pipe ILN / ILNC / ILNR...
  • Page 72 Spring plate 940.1/.2 502.1/.2 Casing wear ring The relevant version is indicated in the product literature supplied. Not for ILNE and ILNS Bearing design depending on pump size Not on all versions ILN / ILNC / ILNR 72 of 92...

  • Page 73: General Assembly Drawing 3 Iln

    9 Related Documents 9.1.3 General assembly drawing 3 ILN Fig. 13: General assembly drawing 3 ILN Bearing bush ILN 300-330 Bearing bush ILN 400-430 Detailed view of bearing assembly ILN / ILNC / ILNR 73 of 92...
  • Page 74 Stud 411.1 Joint ring 914.1/.2 Hexagon socket head cap screw 412.1/.2/.3 O-ring 916.1 Plug Mechanical seal 502.1/.2 Casing wear ring Impeller nut Thrower 932.1/.2 Circlip Shaft sleeve 940.1/.2 545.1/.2 Bearing bush Spring ILN / ILNC / ILNR 74 of 92...

  • Page 75: General Assembly Drawing 4 Ilnc

    Impeller nut O-ring 932.1/.2 Circlip Mechanical seal The relevant version is indicated in the product literature supplied. Not on all versions Bearing design depending on motor size Not for ILNCE and ILNCS ILN / ILNC / ILNR 75 of 92...

  • Page 76: General Assembly Drawing 5 Ilnc

    Pipe union Radial ball bearing 901.1/.2/.3/.4 Hexagon head bolt Drive lantern Grub screw Bearing housing 916.1/.2 Plug 411.1/.2 Joint ring Impeller nut O-ring 932.1/.2 Circlip Mechanical seal Not for ILNCE and ILNCS ILN / ILNC / ILNR 76 of 92...

  • Page 77: General Assembly Drawing 6 Ilnr

    Detailed view of radial ball bearing B Detailed view of radial ball bearing C Table 33: List of components Part No. Description Part No. Description Volute casing Washer Casing cover Coupling guard Shaft Pressure gauge Impeller 710.1 Pipe ILN / ILNC / ILNR 77 of 92...
  • Page 78 Coupling part Drive lantern 901.1/.2/.3 Hexagon head bolt Bearing cover 902.2/.3 Stud 400.1/.2 Gasket 903.1 Screw plug 411.1/.2 Joint ring 920.2/.3 Mechanical seal Impeller nut 500.1/.2 Ring 940.1/.2 502.1/.2 Casing wear ring ILN / ILNC / ILNR 78 of 92...

  • Page 79: General Assembly Drawing 7 Ilnr, Reinforced Version

    Pressure gauge Shaft 710.1 Pipe Impeller 731.1/.2/.3 Pipe union Rolling element bearing Coupling Radial ball bearing Coupling part Bearing bracket 901.1/.3/.4 Hexagon head bolt Drive lantern 902.2/.3 Stud Not for ILNRE and ILNRS ILN / ILNC / ILNR 79 of 92...
  • Page 80 Bearing cover 903.1/.2 Screw plug 400.1/.2 Gasket Hexagon socket head cap screw 411.1/.2 Joint ring 920.2/.3/.20 Mechanical seal Impeller nut 502.1/.2 Casing wear ring Lock washer Thrower 932.1/.2 Circlip 550.1 Washer 940.1/.2 ILN / ILNC / ILNR 80 of 92...

  • Page 81: General Assembly Drawing Of Priming System With Auxiliary Pump Ilns/Ilncs

    Connection of pressure controller at discharge nozzle of ILNS ILNCS Table 35: List of components Part No. Description Part No. Description 59-40 Auxiliary pump 740.50 Valve 693.50 Pressure controller 742.50 Check valves 710.2/.51 Pipe 745.50 Filter 731.2/.50/.51/.52/.53/.54/. Pipe union ILN / ILNC / ILNR 81 of 92...

  • Page 82: General Assembly Drawing, Priming System With Ejector, Ilne/Ilnce

    Part No. Description Part No. Description 411.20 Joint ring 740.20/.50 Valve 59-3.20 Cylinder 742.50 Check valves Venting device 75-3.20 Nozzle 693.50 Pressure controller 81-14.20 Collector 710.2/.20/.51 Pipe 916.20 Plug 731.2/.20/.21/.22/.50/.51/. Pipe union 52/.53/.54/.55 ILN / ILNC / ILNR 82 of 92...
  • Page 83 Part No. Description Pump casing Valve disc Cover Motor Impeller 901.1/.2 Hexagon head bolt Bearing bracket Stud Joint ring Screw plug 412.1/.2 O-ring Grub screw Mechanical seal Hexagon socket head cap screw Valve ILN / ILNC / ILNR 83 of 92...

  • Page 84: Wiring Diagrams

    9.2.1 Wiring diagram of priming system using auxiliary pump Fig. 21: Wiring diagram of priming system using auxiliary pump Auxiliary pump Main pump Float Pressure controller Solenoid valve Mains supply Time relay T1 Time relay T2 ILN / ILNC / ILNR 84 of 92...

  • Page 85: Wiring Diagram Of Priming System Using Ejector

    9.2.2 Wiring diagram of priming system using ejector Fig. 22: Wiring diagram of priming system using ejector Main pump Float Pressure controller EV 1/2 Solenoid valves Mains supply Time relay T1 Time relay T2 ILN / ILNC / ILNR 85 of 92...

  • Page 86: Certificate Of Decontamination

    We confirm that the above data and information are correct and complete and that dispatch is effected in accordance with the relevant legal provisions....................................Place, date and signature Address Company stamp Required field ILN / ILNC / ILNR 86 of 92...

  • Page 87: Eu Declaration Of Conformity

    Apart from the standards listed here referring to the Machinery Directive, further standards are observed for explosion-proof versions (ATEX Directive) as applicable and are listed in the legally binding EU Declaration of Conformity. A signed, legally binding EU Declaration of Conformity is supplied with the product. ILN / ILNC / ILNR 87 of 92...

  • Page 88: Index

    Function 21 Shutdown 41 Spare part Ordering spare parts 63 Grease lubrication Spare parts for commissioning/start-up 64, 65 Grease quality 44, 45 Intervals 44 Special accessories 24 Start-up 37 Storage 13 Impeller type 18, 19, 20 Installation at site 25 Intended use 9 Transport 12 ILN / ILNC / ILNR 88 of 92...
  • Page 89 Index Warnings 8 Warranty claims 7 ILN / ILNC / ILNR 89 of 92...
