Submersible borehole pump

Advertisement

Quick Links

Submersible Borehole Pump
Ixo N
Installation/Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ixo N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KSB Ixo N

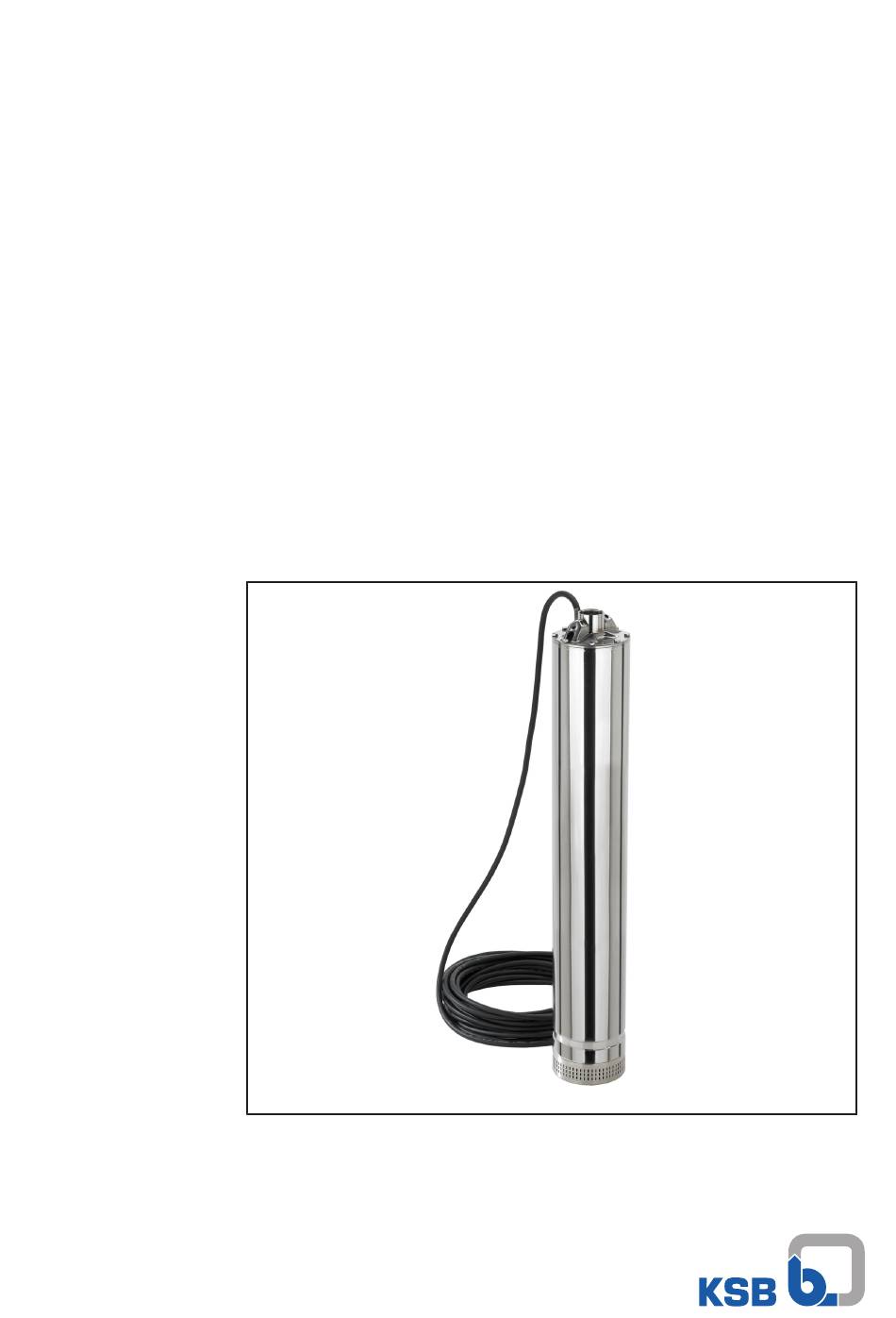

  • Page 1 Submersible Borehole Pump Ixo N Installation/Operating Manual...
  • Page 2 All rights reserved. The contents provided herein must neither be distributed, copied, reproduced, edited or processed for any other purpose, nor otherwise transmitted, published or made available to a third party without the manufacturer's express written consent. Subject to technical modification without prior notice. © KSB SE & Co. KGaA, Frankenthal 08/01/2019...
  • Page 3: Table Of Contents

    Description............................ 13 General description ............................ 13 Designation.............................. 13 Name plate.............................. 13 Design details.............................. 13 Configuration and function........................... 14 Scope of supply............................... 14 Ixo N ................................ 15 Installation at Site .......................... 16 Installing the pump set .......................... 16 Connecting the piping ........................... 17 Electrical connection ............................ 18 Commissioning/Start-up/Shutdown.................... 20 Commissioning/Start-up .......................... 20 6.1.1...
  • Page 4 Contents EU Declaration of Conformity ...................... 29 Certificate of Decontamination...................... 30 Index .............................. 31 Ixo N 4 of 32...
  • Page 5: Glossary

    Close-coupled design Motor directly fitted to the pump via a flange or a drive lantern Pump Machine without drive, additional components or accessories Pump set Complete pump set consisting of pump, drive, additional components and accessories Ixo N 5 of 32...
  • Page 6: General

    The serial number uniquely describes the product and is used as identification in all further business processes. In the event of damage, immediately contact your nearest KSB Service centre to maintain the right to claim under warranty. 1.2 Target group This operating manual is aimed at the target group of trained and qualified specialist technical personnel.
  • Page 7 In conjunction with one of the signal words this symbol indicates a hazard involving electrical voltage and identifies information about protection against electrical voltage. Machine damage In conjunction with the signal word CAUTION this symbol indicates a hazard for the machine and its functions. Ixo N 7 of 32...
  • Page 8: Safety

    Deficits in knowledge must be rectified by means of training and instruction provided by sufficiently trained specialist personnel. If required, the operator can commission the manufacturer/supplier to train the personnel. Training on the pump (set) must always be supervised by technical specialist personnel. Ixo N 8 of 32...
  • Page 9: Consequences And Risks Caused By Non-Compliance With This Manual

    ▪ Only perform work on the pump set when it has been disconnected from the power supply (de-energised). ▪ The pump (set) must have cooled down to ambient temperature. ▪ Pump pressure must have been released and the pump must have been drained. Ixo N 9 of 32...
  • Page 10: Unauthorised Modes Of Operation

    Never operate the pump (set) outside the limits stated in the data sheet and in this manual. The warranty relating to the operating reliability and safety of the supplied pump (set) is only valid if the equipment is used in accordance with its intended use. (ð Section 2.2, Page 8) Ixo N 10 of 32...
  • Page 11: Transport/Temporary Storage/Disposal

    1. On transfer of goods, check each packaging unit for damage. 2. In the event of in-transit damage, assess the exact damage, document it and notify KSB or the supplying dealer and the insurer about the damage in writing immediately.
  • Page 12: Return To Supplier

    Contact your local waste disposal partner for returns. If the used electrical or electronic equipment contains personal data, the user is responsible for deleting it before the equipment is returned. Ixo N 12 of 32...
  • Page 13: Description

    New generation Number of stages Maximum flow rate [m³/h] Single-phase AC motor 4.3 Name plate 2014 KSB SAS, 4, allée des Barbanniers 92230 GENNEVILLIERS IXO N 45 E 0115000022 Q min/max 1/4,5 m H max/min 41,5/16 m IP 68 1-20 0,55 kW (0,75 Hp) S.F.
  • Page 14: Configuration And Function

    ▪ Multistage submersible borehole pump ▪ Single-phase AC motor (with integrated thermal protection, 230 V, 50 Hz, IP 68, built-in capacitor, 23- metre motor power cable with mains plug) ▪ Three-phase motor (400 V, 50 Hz, IP 68, 23-metre motor power cable) Ixo N 14 of 32...
  • Page 15: Ixo N

    4 Description 4.7 Ixo N G 1 1/4 ISO 228 Ø 133 Fig. 2: Ixo N pump Table 4: Dimensions Size [mm] Ixo N 45 E/D Ixo N 55 E/D Ixo N 65 E/D Ixo N 48 E/D Ixo N 58 E/D...
  • Page 16: Installation At Site

    The pump set can be installed as follows: ≥140 mm Fig. 3: Pump set suspended from the discharge line Pressure gauge Vent valve Safety rope Gate valve Lift check valve Discharge line Power cable Ixo N 16 of 32...
  • Page 17: Connecting The Piping

    ▷ Secure the pump set during the entire installation procedure. ▷ Dimension any securing devices (supporting clamps, supports, etc.) so that they can carry all weights during the installation. See cable manufacturer's documentation or DIN VDE 0298-3. Ixo N 17 of 32...
  • Page 18: Electrical Connection

    ▷ Observe the technical specifications of the local energy supply companies. DANGER Connection of damaged power cables Danger of death from electric shock! ▷ Check the power cables for damage before connecting them. ▷ Never connect damaged power cables. ▷ Replace damaged power cables. Ixo N 18 of 32...
  • Page 19 (after 2 to 4 minutes), the thermal switch starts up the motor again. ▪ Pump sets with three-phase motor (Ixo N D) For these pump sets install a motor protection switch (curve type D) in the control cabinet. Observe the current requirement indicated on the name plate.
  • Page 20: Commissioning/Start-Up/Shutdown

    Head H [m] ≤ 65 Fluid temperature T [°C] ≥ +5 ≤ +35 6.3 Operating limits ▪ Only suitable for vertical operation. ▪ Maximum immersion depth: 20 m ▪ Maximum particle size: 2 mm ▪ Maximum number of start-ups/hour: 30 Ixo N 20 of 32...
  • Page 21: Taking The Pump Set Out Of Service

    If the pump set is not in service for a prolonged period of time, taking the following measures is recommended. 1. Remove the pump set from the tank / rainwater storage tank. 2. Drain the pipelines and the pump set. 3. Store the pump set properly. (ð Section 3.3, Page 11) Ixo N 21 of 32...
  • Page 22: Servicing/Maintenance

    Refer to the name plate for all data. Also specify the following data: ▪ Quantity of spare parts ▪ Part number and description ▪ Shipping address ▪ Mode of dispatch (freight, mail, express freight, air freight) Ixo N 22 of 32...
  • Page 23: Spare Parts

    ✘ ✘ ✘ ✘ ✘ ✘ (900.01 - 900.11) Shaft nut Lock washer ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ 932.01/02 Circlip ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ ✘ Ixo N 23 of 32...
  • Page 24: Trouble-Shooting

    Have the motor connection (cable connection) checked by ✘ rotation specialist personnel. ✘ - Pipelines and valves with Use pipelines and valves in accordance with the corresponding too small a nominal recommendations for use. diameter are causing excessive losses. Ixo N 24 of 32...
  • Page 25 ✘ Contact faces damaged by Install a suction-side filter. If necessary, also select a special shaft abrasive particles, score seal for the fluid handled. marks, rubbing marks. Ixo N 25 of 32...
  • Page 26: Related Documents

    9 Related Documents 9 Related Documents 9.1 General assembly drawing Fig. 6: General assembly drawing Ixo N 26 of 32...
  • Page 27: Exploded View

    9 Related Documents 9.2 Exploded view Fig. 7: Exploded view Ixo N 27 of 32...
  • Page 28 9 Related Documents Ixo N 28 of 32...
  • Page 29: Eu Declaration Of Conformity

    – EN 60335-1/A1, EN 60335-2-41 Person authorised to compile the technical file: Christian Appel Head of Product Management Well and Ring-section Pumps KSB SE & Co. KGaA Johann-Klein-Straße 9 67227 Frankenthal (Germany) The EU Declaration of Conformity was issued in/on:...
  • Page 30: Certificate Of Decontamination

    We confirm that the above data and information are correct and complete and that dispatch is effected in accordance with the relevant legal provisions....................................Place, date and signature Address Company stamp Required fields Ixo N 30 of 32...
  • Page 31: Index

    Ordering spare parts 22 Faults Causes and remedies 24 Fields of application 8 Intended use 8 Key to safety symbols/markings 6 Operating properties 20 Return to supplier 12 Safety 8 Safety awareness 9 Shaft seal 14 Spare part Ordering spare parts 22 Spare parts 23 Transport 11 Warnings 6 Warranty claims 6 Ixo N 31 of 32...
  • Page 32 KSB SE & Co. KGaA Johann-Klein-Straße 9 • 67227 Frankenthal (Germany) Tel. +49 6233 86-0 www.ksb.com...
