Page 1: User Manual

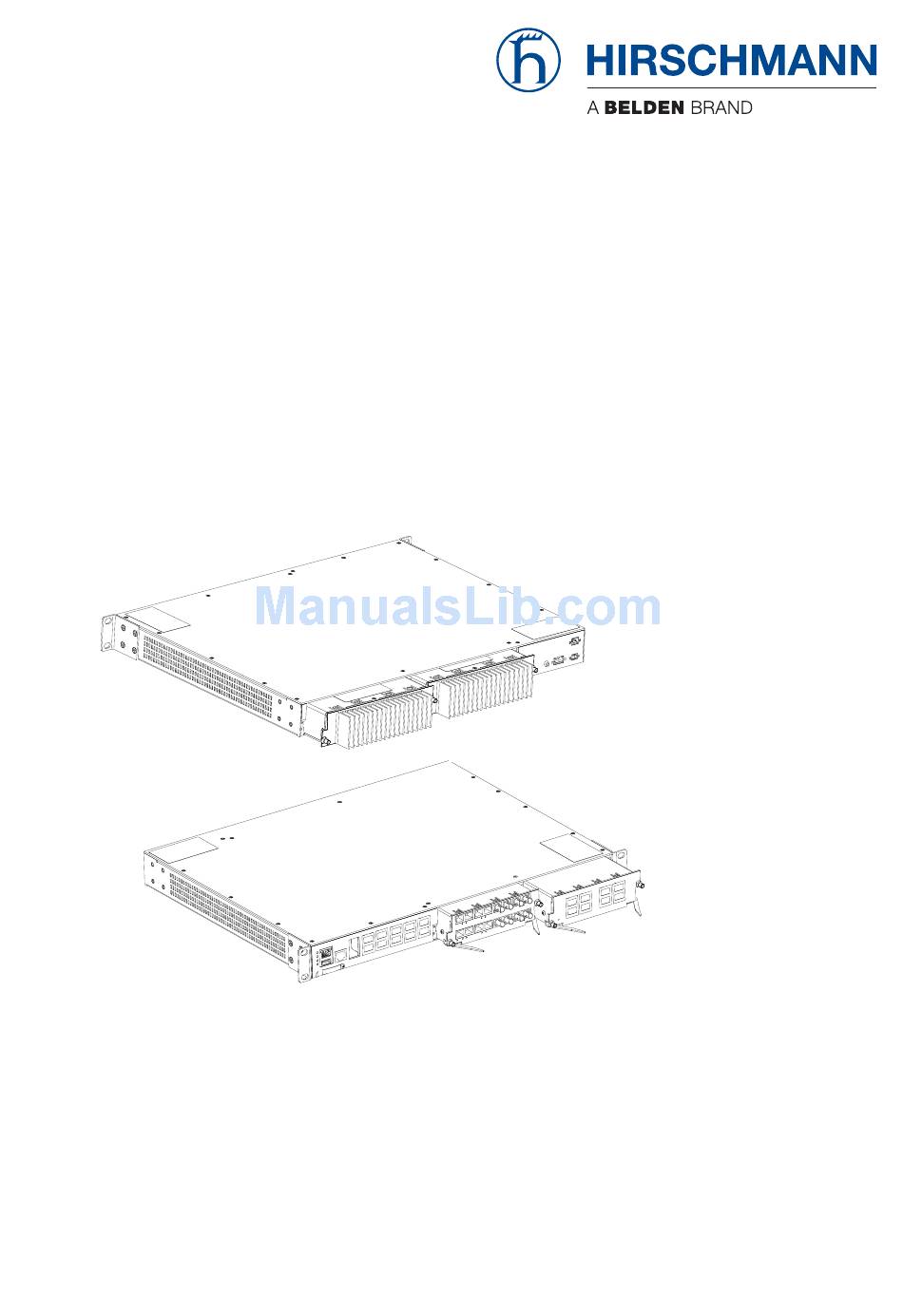

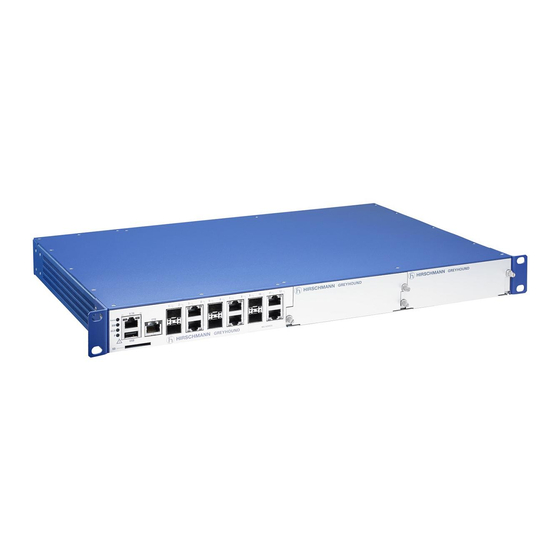

User Manual Installation GREYHOUND Switch - GRS1042/GRS1142 GREYHOUND Power Supply Unit - GPS1/GPS2/GPS3 GREYHOUND Media Module - GMM20/30/32/40/42 Installation GREYHOUND Switch Technical support Release 01 04/2016 https://hirschmann-support.belden.eu.com... - Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
Contents Safety instructions About this Manual Legend Description General device description Device name and product code 1.2.1 Basic device 1.2.2 Power supply units 1.2.3 Media modules Device views 1.3.1 GRS1042 1.3.2 GRS1142 1.3.3 Power supply units 1.3.4 Media modules Power supply Signal contact Ethernet ports 1.6.1 1/2.5 Gbit/s F/O port... - Page 4 Mounting the cover panel and the power supply unit (optional) 2.3.1 Mounting the cover panel 2.3.2 Mounting the power supply unit Mounting a media module (optional) Installing and grounding the device Connecting the terminal blocks 2.6.1 Supply voltage 2.6.2 Signal contact Installing an SFP transceiver (optional) Operating the device Connecting data cables...
-
Page 5: Safety Instructions
Operate the device with undamaged components exclusively. The device is free of any service components. In case of a damaged or malfunctioning the device, turn off the supply voltage and return the device to Hirschmann for inspection. Qualification requirements for personnel ... - Page 6 Correct usage Only use the device for those purposes specified in the catalog and in the technical description. Only operate the device with external devices and components that are recommended and permitted by the manufacturer. The proper and safe operation of this product depends on proper handling during transport, proper storage, assembly and installation, and conscientious operation and maintenance procedures.
- Page 7 Supply with DC voltage: The wire diameter of the power supply cable is at least 1 mm² (North America: AWG16) on the supply voltage input. The cross-section of the protective conductor is the same size as or bigger than the cross-section of the power supply cables. ...
- Page 8 ESD Guidelines The modules are equipped with electrostatically sensitive components. These can be destroyed, or their life cycles reduced, by the effects of an electrical field or by a charge equalization if the connections are touched. You will find information about electrostatically endangered assemblies in DIN EN 61340-5-1 (2007-08) and DIN EN 61340-5-2 (2007-08).
-
Page 9: Operating Conditions
Only technicians authorized by the manufacturer are permitted to open the casing. Keep the ventilation slits free to ensure good air circulation. Make sure there is at least 3.94 inches (10 cm) of space in front of the ventilation slits of the housing. - Page 10 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany Tel.: +49 1805 141538...
- Page 11 FCC note: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; (2) this device must accept any interference received, including interference that may cause undesired operation. Appropriate testing has established that this device fulfills the requirements of a class A digital device in line with part 15 of the FCC regulations.
-
Page 12: About This Manual
About this Manual The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. Legend The symbols used in this manual have the following meanings: ... -
Page 13: Description
Description General device description The GREYHOUND devices are designed for the special requirements of industrial automation. They meet the relevant industry standards, provide very high operational reliability, even under extreme conditions, and also long-term reliability and flexibility. The devices allow you to set up switched industrial Ethernet networks that conform to the IEEE 802.3 standard. -
Page 14: Media Modules
Power supply units GREYHOUND Power Supply Unit You have the option to select either 1 or 2 power supply units with different input voltages: Low Voltage / Power over Ethernet PoE(+) High Voltage You obtain the power supply units as accessories. See “Order number”... -
Page 15: Device Name And Product Code
Device name and product code The device name corresponds to the product code. The product code is made up of characteristics with defined positions. The characteristic values stand for specific product properties. 1.2.1 Basic device Item Characteristic Character Description istic value 1 ... - Page 16 20 ... 21 Customer-specific Hirschmann standard version Hardware Standard configuration Software configuration E Entry (Hirschmann Standard) 24 ... 25 Software level HiOS Layer 2 Advanced HiOS Layer 3 Advanced 26 ... 27 Software packages Reserved Unicast Routing Unicast + Multicast Routing 28 ...
-
Page 17: Power Supply Units
You will find detailed information on the certificates and declarations declarations applying to your device in a separate overview. See “Assignment: application cases, certificates and declarations, characteristic values” on page 19. 10 ... 11 Customer-specific Hirschmann version Installation GREYHOUND Switch Release 01 04/2016... -
Page 18: Media Modules
You will find detailed information on the certificates and declarations declarations applying to your device in a separate overview. See “Assignment: application cases, certificates and declarations, characteristic values” on page 19. 18 ... 19 Customer-specific Hirschmann version Hardware Standard configuration Software configuration 9 without configuration 22 ... - Page 19 Application case Certificates and declarations Characteristic value Standard applications ATEX Zone 2 EN 60950-1 EN 61131-2 ISA 12.12.01 – Class I, Div. 2 cUL 60950-1 Substation applications IEC 61850-3 IEEE 1613 Navy applications DNV GL Railway applications EN 50121-4 (trackside) EN 50155 Table 1: Assignment: application cases, certificates and declarations, characteristic values...
-
Page 20: Device Views
Device views 1.3.1 GRS1042 11 11 Front view - 6TX/6FX LED display elements for device status Display elements for power supply unit status V.24 interface SFP slot for 1/2.5 Gbit/s F/O connections SFP slot for 100/1000 Mbit/s F/O connections 6 ... 7 Cover panels for media module slot RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections Out-of-band management port Slot for the SD card... -
Page 21: Grs1142
1.3.2 GRS1142 Front view - 6TX/6FX and 10TX/2FX Cover panel for power supply unit slot 1 Cover panel for power supply unit slot 2 LED display elements for device status LED display elements for port status Display elements for power supply unit status V.24 interface Out-of-band management port Slot for the SD card... -
Page 22: Power Supply Units
1.3.3 Power supply units GPS1-C GPS1-K GPS3-P Installation GREYHOUND Switch Release 01 04/2016... -
Page 23: Media Modules
1.3.4 Media modules GMM20-VVUUMMNN Port Port description 1, 3 2 × DSC singlemode socket 5, 7 2 × ST singlemode socket 2, 4 2 × DSC multimode socket 6, 8 2 × ST multimode socket GMM30-MMNNTTTT / GMM32-MMNNTTTT Port Port description 1, 3 2 ×... - Page 24 2, 4 2 × RJ45 socket 6, 8 2 × RJ45 socket GMM40-OOOOOOOO Port Port description 1, 3 2 × SFP slot 5, 7 2 × SFP slot 2, 4 2 × SFP slot 6, 8 2 × SFP slot GMM40-OOOOTTTT / GMM42-OOOOTTTT Port Port description...
-
Page 25: Power Supply
Power supply You have the following options to supply your device with voltage: GRS1042 GRS1142 via 2-pin terminal blocks Device variants with characteristic value LL GRS1042 GRS1142 via 3-pin terminal blocks Device variants with characteristic value HH GRS1042 GRS1142 ... -
Page 26: Signal Contact
Signal contact GRS1042 GRS1142 Figure 1: Signal contact: 2-pin terminal block with screw locking The signal contact is a potential-free relay contact. The device allows you to perform remote diagnosis via the signal contact. In the process, the device signals events such as a line interruption. When an event occurs, the device opens the relay contact and interrupts the closed circuit. -
Page 27: Ethernet Ports
Ethernet ports You can connect end devices and other segments to the device and media module ports using twisted pair cables or optical fibers (F/O). 1.6.1 1/2.5 Gbit/s F/O port The port allows you to connect network components according to the IEEE 802.3 1000BASE-SX/1000BASE-LX standard. -
Page 28: 10/100/1000 Mbit/S Twisted Pair Port
1.6.4 10/100/1000 Mbit/s twisted pair port This port is an RJ45 socket. The 10/100/1000 Mbit/s twisted pair port offers you the ability to connect network components according to the IEEE 802.3 10BASE-T/100BASE- TX/1000BASE-T standard. This port supports: Autonegotiation Autopolarity ... -
Page 29: Out-Of-Band Management Port
Telnet HTTP/HTTPS For more information see the Command Line Interface reference manual. You can download the manual on the Internet at the Hirschmann product pages www.hirschmann.com. Pin assignments RJ45 10/100 Mbit/s 1000 Mbit/s MDI mode BI_DA+ Positive V TX−... -
Page 30: Display Elements
Display elements After the working voltage is set up, the software starts and initializes itself. Afterwards, the device performs a self-test. During this process, various LEDs light up. 1.8.1 Device state These LEDs provide information about conditions which affect the operation of the whole device. - Page 31 Display Color Activity Meaning Storage medium — None ACA storage medium not connected ACA22 Green Lights up ACA storage medium connected ACA31 Flashes 3 Device writes to/reads from the storage times a period medium Yellow Lights up ACA storage medium inoperative Supply voltage —...
-
Page 32: Port State
1.8.2 Port state These LEDs provide port-related information. GRS1142 GRS1042 Slot 1 Slot 2 GRS1142 V.24 MGMT GRS1142 V.24 MGMT GRS1042 MGMT LED Display Color Activity Meaning Link state/ — None Device detects an invalid or missing data traffic link Green Lights up Device detects a valid link Flashes 1 time a... - Page 33 Switching LEDs LED display Position on the device Service panel Only device variants GRS 1142 Port panel GRS 1042 and 1142 With device variants GRS 1142 the port status is displayed on the service panel by default. You have the option of changing between the LED displays using the command line interface (CLI).
-
Page 34: Media Module Status
1.8.3 Media module status GMM20/GMM30/GMM40 Power Power Power Power Power Display Color Activity Meaning Power Supply — None Media module is inoperative voltage Green Lights up Voltage supply to the media module is Link state/ — None Device detects an invalid or missing link data traffic Green Lights up Device detects a valid link Flashes... - Page 35 GMM32/GMM42 Power Power Power Power Power Power Display Color Activity Meaning Power Supply voltage — None Media module is inoperative Green Lights up Voltage supply to the media module is on Voltage supply to the PoE port is on Yellow Lights up PoE voltage is missing or is too low Link state/...
-
Page 36: Management Interfaces
Management interfaces 1.9.1 V.24 interface (external management) GRS1042 GRS1142 A serial interface is provided on the RJ45 socket (V.24 interface) for the local connection of an external management station (VT100 terminal or PC with corresponding terminal emulation). This enables you to set up a connection to the Command Line Interface (CLI) and to the system monitor. -
Page 37: Usb Interface
1.9.2 USB interface GRS1042 GRS1142 The USB interface allows you to connect the AutoConfiguration Adapter ACA22 storage medium. This is used for saving/loading the configuration data and diagnostic information, and for loading the software. See “Accessories” on page 71. On the front of the device there is an LED display that informs you about the status of the interface. -
Page 38: Sd Card Interface
1.9.3 SD card interface Prerequisite: Only use Hirschmann SD cards. See “Accessories” on page 71. GRS1042 GRS1142 The SD card interface allows you to connect the AutoConfiguration Adapter ACA31 storage medium. This is used for saving/loading the configuration data and diagnostic information, and for loading the software. -
Page 39: Installation
Installation The devices have been developed for practical application in a harsh industrial environment. On delivery, the device is ready for operation. Perform the following steps to install and configure the device: Checking the package contents Installing the SD card (optional) ... -
Page 40: Mounting The Cover Panel And The Power Supply Unit (Optional)
Fasten the cover panel to the device by tightening the 2 screws. 2.3.2 Mounting the power supply unit Hirschmann supplies the power supply units in a ready-to-operate state. The power supply units are hot-swap-capable. You have the option of mounting the power supply units while the device is operating. -
Page 41: Mounting A Media Module (Optional)
Mounting a media module (optional) Hirschmann supplies the media modules in a ready-to-operate state. By using a media module, you obtain up to 8 additional Fast and/or Gigabit Ethernet ports. The media modules are hot-swap-capable. You have the option of mounting the media modules while the device is operating. -
Page 42: Installing And Grounding The Device
Installing and grounding the device You have the following options for mounting your device: Mounting in a switch cabinet Mounting on a vertical flat surface WARNING ELECTRIC SHOCK Install this device solely in a switch cabinet or in an operating site with restricted access, to which maintenance staff have exclusive access. - Page 43 Mounting in a switch cabinet Note: When operating the device in an environment with continuous vibration loads of greater than 0.7 g, you must additionally fasten the device to the switch cabinet using 2 holding brackets on the front and back of the device.
- Page 44 Mounting on a vertical flat surface WARNING FIRE HAZARD Install the device in a fire protected shell if you are mounting it vertically. Failure to follow these instructions can result in death, serious injury, or equipment damage. Proceed as follows: ...
-
Page 45: Grounding The Device
Grounding the device The device variants have a connection for protective grounding. Applies to device variants featuring supply voltage with characteristic value H: The device is grounded via the ground screw and also via the power supply socket. Proceed as follows: ... -
Page 46: Connecting The Terminal Blocks
Connecting the terminal blocks 2.6.1 Supply voltage WARNING ELECTRIC SHOCK Connect only a supply voltage that corresponds to the type plate of your device. Never insert sharp objects (small screwdrivers, wires, etc.) into the connection terminals for electric conductors, and do not touch the terminals. Failure to follow these instructions can result in death, serious injury, or equipment damage. - Page 47 Supply voltage with characteristic value LL GRS1142 GRS1042 RELAY Supply voltage with characteristic value HH GRS1142 GRS1042 Installation GREYHOUND Switch Release 01 04/2016...
- Page 48 Supply voltage with characteristic value HL GRS1142 GRS1042 RELAY Type of the voltages Specification of the supply Connections that can be voltage connected DC voltage Rated voltage range DC Plus terminal of the supply voltage 24 V ... 48 V −...
-
Page 49: Signal Contact
2.6.2 Signal contact GRS1042 GRS1142 Figure 2: Signal contact: 2-pin terminal block with screw locking Connect the signal contact wires with the connectors of the terminal block. Fasten the wires connected by tightening the terminal screws. Installation GREYHOUND Switch Release 01 04/2016... -
Page 50: Installing An Sfp Transceiver (Optional)
Installing an SFP transceiver (optional) Prerequisite: Only use Hirschmann SFP transceivers. See “Accessories” on page 71. Proceed as follows: Remove the protection cap from the SFP transceiver. Push the SFP transceiver with the lock closed into the slot until it latches in. -
Page 51: Operating The Device
Operating the device Relevant for North America: The torque for tightening the supply voltage terminal block on the device is 4.5 lb-in (0.51 Nm). The torque for tightening the terminal block for the signal contact on the device is 3 lb-in (0.34 Nm). Proceed as follows: ... -
Page 52: Making Basic Settings
Making basic settings Note: Two or more devices configured with the same IP address can cause unpredictable operation of your network. Install and maintain a process that assigns a unique IP address to every device in the network. The IP parameters must be entered when the device is installed for the first time. -
Page 53: Monitoring The Ambient Air Temperature
Monitoring the ambient air temperature Operate the device below the specified maximum ambient air temperature exclusively. See “General technical data” on page 58. The ambient air temperature is the temperature of the air at a distance of 2 in (5 cm) from the device. It depends on the installation conditions of the device, e.g. -
Page 54: Maintenance And Service
Maintenance and service When designing this device, Hirschmann largely avoided using high-wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications. -
Page 55: Disassembly
Disassembly Removing a power supply unit Proceed as follows: Remove the screws on the front panel of the power supply unit. Pull the power supply unit out of the slot. Close the power supply unit slot on the basic device using a cover panel. ... -
Page 56: Removing A Media Module
Removing a media module Proceed as follows: Loosen the screws in the front panel of the media module. Open the lock of the media module by pressing the locking lever outwards (steps 1 and 2). Pull the media module out of the slot (step 3). ... -
Page 57: Removing The Device
Removing the device WARNING ELECTRIC SHOCK Disconnect the grounding only after disconnecting all other cables. Failure to follow these instructions can result in death, serious injury, or equipment damage. Proceed as follows: Disconnect the data cables. Disable the supply voltage. ... -
Page 58: Technical Data
Technical data General technical data 7.1.1 Basic device Dimensions See “Dimension drawings” on page 62. W × H × D Weight 7.93 lb (3.6 kg) Power supply Nominal voltage DC 24 V ... 48 V Supply voltage 48 V... 54 V with characteristic Back-up fuse for each voltage Nominal rating:... -
Page 59: Power Supply Units
Pollution degree Protection classes Laser protection Class 1 in compliance with IEC 60825-1 Degree of protection IP30 a. Temperature of the ambient air at a distance of 2 inches (5 cm) from the device b. If you are using SFP modules without the “EEC” extension, an operating temperature range of +32 °F to +140 °F (0 °C to +60 °C) applies for your device. - Page 60 Power supply unit The supply voltage inputs are designed for operation with safety extra- Characteristic value P low voltage. Connect only SELV circuits with voltage restrictions in line with IEC/EN 60950-1 to the supply voltage connections. Make sure that the connected supply voltage complies the requirements of IEEE 802.3af or IEEE 802.3at: ...
-
Page 61: Media Modules
Protection classes Laser protection Class 1 in compliance with IEC 60825-1 a. Hirschmann recommends to use SFP transceivers with the "EEC" extension. b. Use SFP transceivers with the “EEC” extension only, otherwise the standard temperature range applies. Installation GREYHOUND Switch... -
Page 62: Dimension Drawings
Dimension drawings 7.2.1 Basic device inch 0.39 0.27 Installation GREYHOUND Switch Release 01 04/2016... -
Page 63: Power Supply Units
7.2.2 Power supply units inch Installation GREYHOUND Switch Release 01 04/2016... -
Page 64: Media Modules
7.2.3 Media modules inch Installation GREYHOUND Switch Release 01 04/2016... - Page 65 EMC and immunity EMC interference Standard Merchant Navy Railway Substation emission applications applications applications (trackside) Radiated emission EN 55022 Class A Class A Class A Class A GL Guidelines — EMC 1 — — FCC 47 CFR Part 15 Class A Class A Class A...
- Page 66 EMC interference Standard Merchant Navy Railway Substation immunity applications applications applications (trackside) EN 61000-4-3 80 MHz ... 3000 MHz 10 V/m 10 V/m 20 V/m 10 V/m IEEE 1613 80 MHz ... 1000 MHz — — — 35 V/m Fast transients (burst) EN 61000-4-4 DC supply connection ±...
- Page 67 EMC interference Standard Merchant Navy Railway Substation immunity applications applications applications (trackside) Damped vibration – DC supply connection EN 61000-4-12 line/ground — — — 2.5 kV IEEE C37.90.1 EN 61000-4-12 line/line — — — 1 kV IEEE C37.90.1 Damped oscillation - data line EN 61000-4-12 line/ground —...
- Page 68 Network range Note: The line lengths specified for the transceivers apply for the respective fiber data (fiber attenuation and BLP/dispersion). Product Wave Fiber System Example Fiber code length attenuatio for F/O attenuatio dispersion M-SFP-... line length -SX/LC... MM 850 nm 50/125 µm 0-7.5 dB 0-550 m...
- Page 69 Product Wave Fiber System Example Fiber BLP/ code length attenuatio for F/O line attenuation dispersion M-FAST- length SFP-... -MM/LC... MM 1310 nm 50/125 µm 0-8 dB 0-5 km 1.0 dB/km 800 MHz×km -MM/LC... MM 1310 nm 62.5/125 µm 0-11 dB 0-4 km 1.0 dB/km 500 MHz×km...
-
Page 70: Scope Of Delivery
Power consumption/power output Name Maximum Maximum power consumption power output Basic devices + 1 PSU GRS1042 AT2Z... 32 W 110 Btu (IT)/h GRS1142 AT2Z... GRS1042 6T6Z... GRS1142 6T6Z... Power supply units GPS1-K + 2.5 W 9 Btu (IT)/h GPS1-C + 3.5 W 12 Btu (IT)/h GPS3-P... - Page 71 Accessories Note that products recommended as accessories may have different characteristics to those of the device, which may limit the application range of the overall system. For example, if you add an accessory with IP 20 to a device with IP 65, the IP of the overall system is reduced to 20. Gigabit Ethernet SFP transceiver Order number M-SFP-TX/RJ45...
- Page 72 Fast Ethernet SFP transceiver Order number M-FAST SFP-SM/LC 943 866-001 M-FAST SFP-SM/LC EEC 943 946-001 M-FAST SFP-SM+/LC 943 867-001 M-FAST SFP-SM+/LC EEC 943 947-501 M-FAST SFP-LH/LC 943 868-001 M-FAST SFP-LH/LC EEC 943 948-001 Other accessories Order number AutoConfiguration Adapter ACA 22-USB (EEC) 942 124-001 AutoConfiguration Adapter ACA 31 942 074-001...
- Page 73 Underlying technical standards Name ATEX ATEX – Intended use of equipment and protection systems in (2014/34/EU) potentially explosive areas. Australian Regulatory Compliance Mark (RCM) Australian Radiocommunications Standard 2008, Radiocommunications Act 1992 FCC 47 CFR Part 15 Code of Federal Regulations Germanischer Lloyd Rules for Classification and Construction VI-7-2 –...
- Page 74 If your device has a shipping approval according to Germanischer Lloyd, you find the approval mark printed on the device label. You will find out whether your device has other shipping approvals on the Hirschmann website under www.hirschmann.com in the product information.
-
Page 75: A Further Support
Further Support Technical Questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You will find the addresses of our partners on the Internet at http://www.hirschmann.com Contact our support at https://hirschmann-support.belden.eu.com You can contact us in the EMEA region at ...
