User Manual
Installation
Lite Managed Switch
GECKO
Installation GECKO
Technical support
Release 04 04/2021
https://hirschmann-support.belden.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GECKO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hirschmann GECKO

Summary of Contents for Hirschmann GECKO

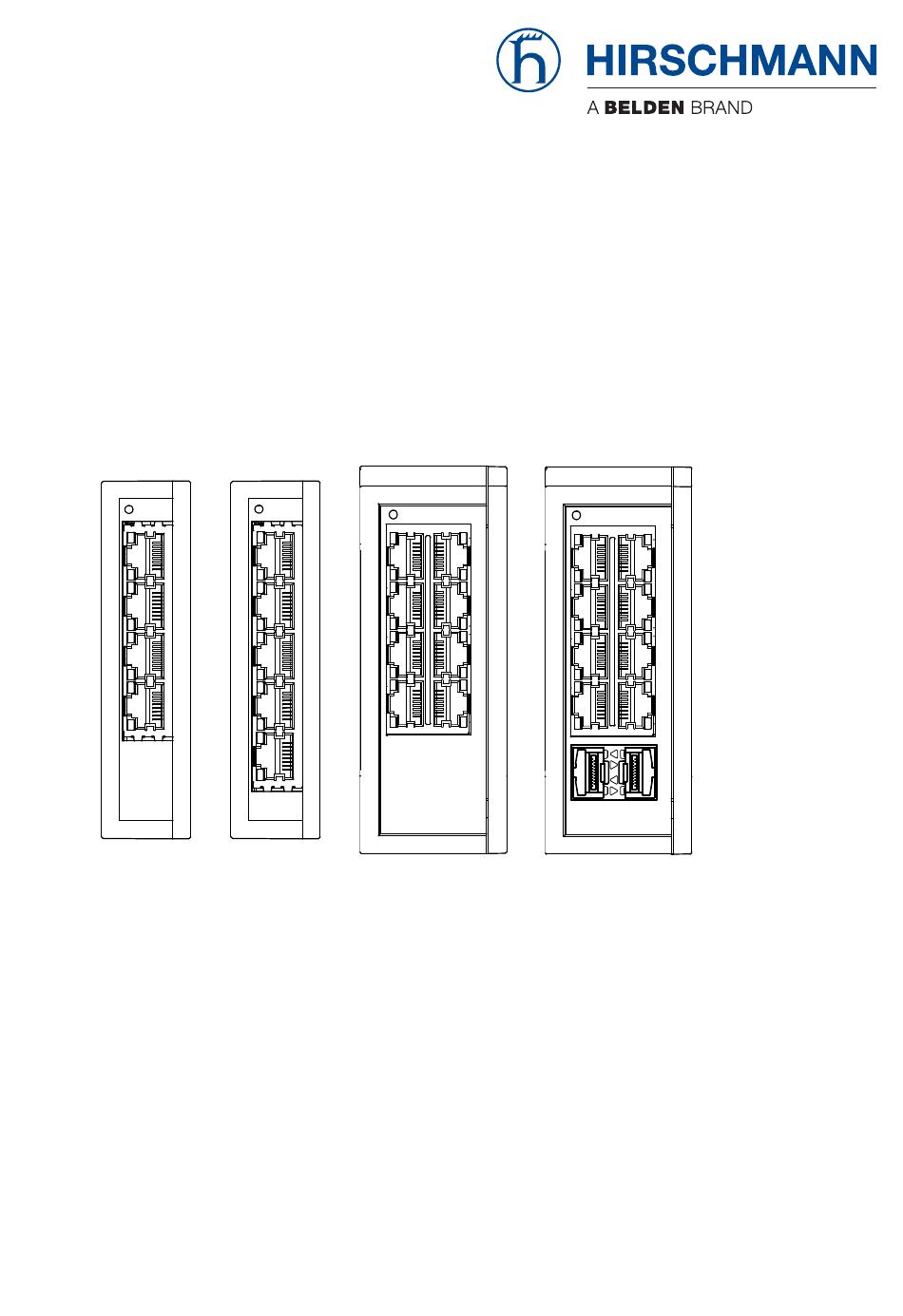

  • Page 1 User Manual Installation Lite Managed Switch GECKO Installation GECKO Technical support Release 04 04/2021 https://hirschmann-support.belden.com...
  • Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.

  • Page 3: Table Of Contents

    Contents Important information Safety instructions About this Manual Description General description Device view 1.2.1 GECKO 4TX / GECKO 5TX 1.2.2 GECKO 8TX 1.2.3 GECKO 8TX/2SFP Power supply Ethernet ports 1.4.1 10/100 Mbit/s twisted pair port 1.4.2 100/1000 Mbit/s F/O port Display elements 1.5.1 Device state...
  • Page 4 Disassembly Removing an SFP transceiver (optional) Removing the device Technical data General technical data 7.1.1 GECKO 4TX / GECKO 5TX 7.1.2 GECKO 8TX / GECKO 8TX/2SFP Dimension drawings 7.2.1 GECKO 4TX / GECKO 5TX 7.2.2 GECKO 8TX 7.2.3 GECKO 8TX/2SFP EMC and immunity 7.3.1 GECKO 4TX / GECKO 5TX...
  • Page 5 11.1 GECKO 4TX / GECKO 5TX 11.2 GECKO 8TX / GECKO 8TX/2SFP Installation GECKO Release 04 04/2021...

  • Page 6: Important Information

    WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a possible danger which, if not avoided, may result in minor injuries. Installation GECKO Release 04 04/2021...
  • Page 7 NOTICE NOTE provides information about procedures that do not involve the risk of injury. Installation GECKO Release 04 04/2021...

  • Page 8: Safety Instructions

    Certified usage   Use the product only for the application cases described in the Hirschmann product information, including this manual.  Operate the product only according to the technical specifications. See “Technical data” on page 33.  Connect to the product only components suitable for the requirements of the specific application case.
  • Page 9 Verify that the electrical installation meets local or nationally applicable safety regulations. Grounding the device  The device is grounded by a 3-pin terminal block.  Ground the device before connecting any other cables.  Disconnect the grounding only after disconnecting all other cables. Installation GECKO Release 04 04/2021...
  • Page 10 See “Technical data” on page 33. Table 2: Requirements for connecting the supply voltage LED or laser components  LED or LASER components according to IEC 60825-1 (2014): CLASS 1 LASER PRODUCT CLASS 1 LED PRODUCT Installation GECKO Release 04 04/2021...
  • Page 11 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany You find the EU conformity declaration as PDF file for downloading on the Internet at: https://www.doc.hirschmann.com/certificates.html...
  • Page 12 Recycling note  After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal regulations of your county, state, and country. Installation GECKO Release 04 04/2021...

  • Page 13: About This Manual

    Documentation mentioned in the “User Manual Installation” that is not supplied with your device as a printout can be found as PDF files for downloading on the Internet at: https://www.doc.hirschmann.com Installation GECKO Release 04 04/2021...

  • Page 14: Key

    The symbols used in this manual have the following meanings:  Listing Work step   Subheading Installation GECKO Release 04 04/2021...

  • Page 15: Description

    Network management software (for example Industrial HiVision) The Network Management Software Industrial HiVision provides you with options for smooth configuration and monitoring. You find further information on the Internet at the Hirschmann product pages: http://www.hirschmann.com/en/QR/INET-Industrial-HiVision The Hirschmann network components help you ensure continuous communication across all levels of the company.
  • Page 16 Example Application  Redundant data link Redundancy procedure: Rapid Spanning Tree Protocol Control Lite Managed Switch GECKO Data link Production cell Installation GECKO Release 04 04/2021...

  • Page 17: Device View

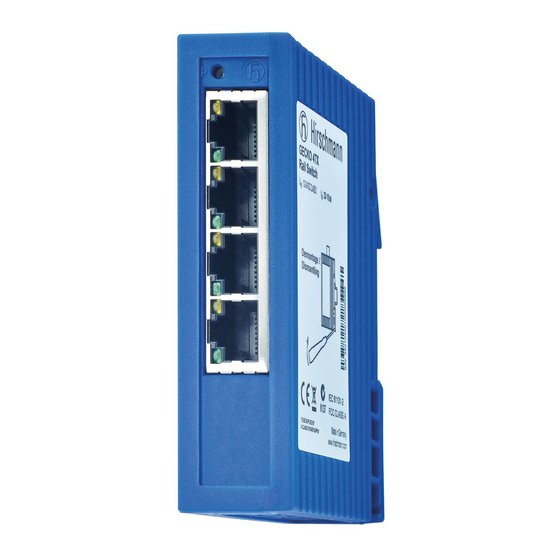

    Device view 1.2.1 GECKO 4TX / GECKO 5TX LED display element Device Status 3-pin terminal block for the supply voltage and the grounding 3 a Ports 1 ... 4 10/100 Mbit/s twisted pair ports 3 b Ports 1 ... 5...

  • Page 18: Gecko 8Tx

    1.2.2 GECKO 8TX LED display element Device Status 3-pin terminal block for the supply voltage and the grounding Ports 1 ... 8 10/100 Mbit/s twisted pair ports LED display elements Port status Installation GECKO Release 04 04/2021...

  • Page 19: Gecko 8Tx/2Sfp

    1.2.3 GECKO 8TX/2SFP LED display element Device Status 3-pin terminal block for the supply voltage and the grounding Ports 1 ... 8 10/100 Mbit/s twisted pair ports LED display elements Port status SFP slot for 100/1000 Mbit/s F/O connections Ports 9 ... 10...

  • Page 20: Ethernet Ports

    100 Mbit/s, full duplex  1000 Mbit/s full duplex Delivery state:  100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver  1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver Installation GECKO Release 04 04/2021...

  • Page 21: Display Elements

    For “Profinet Enabled” device variants the assignment of the IP address happens via the configuration tool “Proneta” from Siemens. Only when the IP address has been assigned with the configuration tool “Proneta”, the LED stops flashing and lights up. Installation GECKO Release 04 04/2021...

  • Page 22: Port Status

    100 Mbit/s connection none 10 Mbit/s connection Link status green lights up Device detects a valid link data flashing Device is transmitting and/or receiving data none Device detects an invalid or missing link Installation GECKO Release 04 04/2021...

  • Page 23: Installation

    To mount the device onto a horizontally mounted 35 mm DIN rail according to DIN EN 60715, proceed as follows:  Slide the upper snap-in guide of the device into the DIN rail.  Slide the bottom part of the device onto the DIN rail. Installation GECKO Release 04 04/2021...

  • Page 24: Installing An Sfp Transceiver (Optional)

    Installing an SFP transceiver (optional) Prerequisites: Exclusively use Hirschmann SFP transceivers. See “Accessories” on page 47. Figure 1: Installing SFP transceivers: Installation sequence Proceed as follows:  Take the SFP transceiver out of the transport packaging (1).  Remove the protection cap from the SFP transceiver (2).

  • Page 25: Wiring The Terminal Block For The Supply Voltage And The Grounding

    Note: Ground the device before connecting any other cables. Note: The shielding ground of the connectable twisted pair cables is connected to the ground connection as a conductor. 2.4.1 GECKO 4TX / GECKO 5TX Figure Pin assignment on the device Specification of the supply...

  • Page 26: Gecko 8Tx / Gecko 8Tx/2Sfp

    Note: Relevant for North America: The torque for tightening the supply voltage terminal block on the device is 4.5 lb-in (0.51 Nm). 2.4.2 GECKO 8TX / GECKO 8TX/2SFP Figure Pin assignment on the device Specification of the supply voltage +24 V...

  • Page 27: Connecting Data Cables

    SF/UTP cables according to ISO/IEC 11801. Exclusively use shielded data cables to meet EMC requirements according to EN 50121- 4 and marine applications.  Connect the data cables according to your requirements. See “Ethernet ports” on page 20. Installation GECKO Release 04 04/2021...

  • Page 28: Configuration

     When you log on to the device with the Command Line Interface, then the device prompts you to confirm you new password.  Log on to the device again with your new password. Installation GECKO Release 04 04/2021...

  • Page 29: Monitoring The Ambient Air Temperature

    The ambient air temperature is the temperature of the air at a distance of 2 in (5 cm) from the device. It depends on the installation conditions of the device, for example the distance from other devices or other objects, and the output of neighboring devices. Installation GECKO Release 04 04/2021...

  • Page 30: Maintenance And Service

    Hirschmann is continually working on improving and developing their software. Check regularly whether there is an updated version of the software that provides you with additional benefits. You find information and software downloads on the Hirschmann product pages on the Internet (http://www.hirschmann.com). ...

  • Page 31: Disassembly

     Open the locking mechanism of the SFP transceiver (1).  Pull the SFP transceiver out of the slot via the open locking mechanism (2).  Close the SFP transceiver with the protection cap (3). Installation GECKO Release 04 04/2021...

  • Page 32: Removing The Device

    To remove the device from the DIN rail, you proceed as follows:  Insert a screwdriver below the housing into the indentation of the lock.  Use the screwdriver to pull the lock downwards.  Lift the bottom of the device away from the DIN rail. Installation GECKO Release 04 04/2021...

  • Page 33: Technical Data

    Technical data General technical data 7.1.1 GECKO 4TX / GECKO 5TX Dimensions See “GECKO 4TX / GECKO 5TX” on page 35. W × H × D Weight GECKO 4TX 103 g (3.63 oz) GECKO 5TX 110 g (3.87 oz) Power supply...

  • Page 34: Gecko 8Tx / Gecko 8Tx/2Sfp

    7.1.2 GECKO 8TX / GECKO 8TX/2SFP Dimensions See “GECKO 8TX” on page 36. W × H × D See “GECKO 8TX/2SFP” on page 36. Weight GECKO 8TX 223 g (7.85 oz) GECKO 8TX/2SFP 223 g (7.85 oz) Power supply Safety extra-low voltage (SELV)

  • Page 35: Dimension Drawings

    Dimension drawings 7.2.1 GECKO 4TX / GECKO 5TX 73,5 inch 2.89 78,5 3.09 0.98 Installation GECKO Release 04 04/2021...

  • Page 36: Gecko 8Tx

    7.2.2 GECKO 8TX 45,4 inch 1.79 4,37 0.17 0.24 15,5 3.22 0.61 0.55 7.2.3 GECKO 8TX/2SFP 45,4 inch 1.79 4,37 0.17 0.24 15,5 3.22 0.61 0.55 Installation GECKO Release 04 04/2021...

  • Page 37: Emc And Immunity

    EMC and immunity 7.3.1 GECKO 4TX / GECKO 5TX EMC interference emission Radiated emission EN 55032 Class A FCC 47 CFR Part 15 Class A EN 61000-6-4 Fulfilled Conducted emission EN 55032 DC supply connection Class A FCC 47 CFR Part 15...

  • Page 38: Gecko 8Tx / Gecko 8Tx/2Sfp

    7.3.2 GECKO 8TX / GECKO 8TX/2SFP EMC interference emission Radiated emission EN 55032 Class A FCC 47 CFR Part 15 Class A EN 61000-6-4 Fulfilled Conducted emission EN 55032 DC supply connection Class A FCC 47 CFR Part 15 DC supply connection...

  • Page 39: Network Range

    Network range 7.4.1 10/100/1000 Mbit/s twisted pair port 10/100/1000 Mbit/s twisted pair port Length of a twisted pair segment max. 328 ft (100 m) (for Cat5e cable) Table 6: Network range: 10/100/1000 Mbit/s twisted pair port 7.4.2 Fast Ethernet SFP transceiver Product code Mode Wave length...

  • Page 40: Gigabit Ethernet Sfp Transceiver

    7.4.3 Gigabit Ethernet SFP transceiver Product code Mode Wave length Fiber System Example for F/O Fiber /Dispersion M-SFP-... attenuation cable length attenuation -SX/LC... 850 nm 50/125 µm 0 dB ... 7.5 dB 0 mi ... 0.34 mi 3.0 dB/km 400 MHz×km (0 km ...
  • Page 41 Product code Mode Wave length Fiber System Example for F/O Fiber /Dispersion M-SFP-... attenuation cable length attenuation -LH+/LC... 1550 nm 9/125 µm 13 dB ... 32 dB 38.52 mi ... 0.25 dB/km 19 ps/(nm×km) 72.07 mi (62 km ... 116 km) -LH+/LC...

  • Page 42: Bidirectional Gigabit Ethernet Sfp Transceiver

    7.4.4 Bidirectional Gigabit Ethernet SFP transceiver Product code Mode Wave length Wave length Fiber System Example for F/O Fiber Dispersion M-SFP-BIDI... attenuation cable length attenuation Type A LX/LC EEC SM 1310 nm 1550 nm 9/125 µm 0 dB ... 11 dB 0 mi ...
  • Page 43 Product code Mode Wave length Wave length Fiber System Example for F/O Fiber Dispersion SFP-GIG-B... attenuation cable length attenuation SFP-GIG-BA LH/ 1490 nm 1550 nm 9/125 µm 4 dB ... 24 dB 11.80 mi ... 0.25 dB/km 19 ps/(nm×km) LC EEC 49.71 mi (19 km ...

  • Page 44: Power Consumption/Power Output

    Power consumption/power output Maximum Power output power consumption GECKO 4TX 2.35 W 8.0 Btu (IT)/h GECKO 5TX 1.8 W 6.1 Btu (IT)/h GECKO 8TX 3.9 W 13.3 Btu (IT)/h GECKO 8TX/2SFP 5.3 W 18.1 Btu (IT)/h Installation GECKO Release 04 04/2021...

  • Page 45: Scope Of Delivery

    Scope of delivery Amou Article 1 × Device 1 × 3-pin terminal block for the supply voltage and the grounding 1 × Safety and general information sheet Installation GECKO Release 04 04/2021...

  • Page 46: Order Numbers

    Order numbers Device Order number GECKO 4TX 942 104-001 GECKO 4TX-PN 942 104-301 GECKO 4TX-EIP 942 104-401 GECKO 5TX 942 104-002 GECKO 5TX-PN 942 104-302 GECKO 5TX-EIP 942 104-402 GECKO 8TX 942 291-001 GECKO 8TX/2SFP 942 291-002 GECKO 8TX-PN 942 291-301...

  • Page 47: 10 Accessories

    SFP-FAST-SM/LC 942 195-001 SFP-FAST-SM/LC EEC 942 195-002 Table 11: Accessory: Fast Ethernet SFP transceiver a. You will find further information on certifications on the Internet on the Hirschmann product pages (www.hirschmann.com). 10.2 Gigabit Ethernet SFP transceiver Gigabit Ethernet SFP transceiver...

  • Page 48: Bidirectional Gigabit Ethernet Sfp Transceiver

    SFP-GIG-LX/LC 942 196-001 SFP-GIG-LX/LC EEC 942 196-002 Table 12: Accessory: Gigabit Ethernet SFP transceiver a. You will find further information on certifications on the Internet on the Hirschmann product pages (www.hirschmann.com). 10.3 Bidirectional Gigabit Ethernet SFP transceiver Bidirectional Gigabit Ethernet SFP transceiver...

  • Page 49: Other Accessories

    You find further information on certifications on the Internet on the Hirschmann product pages (www.hirschmann.com). 10.4 Other accessories Other accessories Order number Network management software 943 156-xxx Industrial HiVision Rail Power Supply RPS 15 943 662-015 Rail Power Supply RPS 30...

  • Page 50: 11 Underlying Technical Standards

    11 Underlying technical standards 11.1 GECKO 4TX / GECKO 5TX Designation CSA C22.2 No. 142 Canadian National Standard(s) – Process Control Equipment – Industrial Products EN 55011 Industrial, scientific and medical equipment – Radio disturbance – Limits and methods of measurement EN 55032 Electromagnetic compatibility of multimedia equipment –...
  • Page 51 11.2 GECKO 8TX / GECKO 8TX/2SFP Designation CSA C22.2 No. 142 Canadian National Standard(s) – Process Control Equipment – Industrial Products EN 55011 Industrial, scientific and medical equipment – Radio disturbance – Limits and methods of measurement EN 55032 Electromagnetic compatibility of multimedia equipment – Emission...
  • Page 52 Further support Technical questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You find the addresses of our partners on the Internet at http://www.hirschmann.com. A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https://hirschmann-support.belden.com.
  • Page 53 Installation GECKO Release 04 04/2021...
