Ortech WP-100W Manual

LED Wall Packs
MODEL WP-100W
1. DO NOT remove any part of the fixture
2. Terminal block to be used shall conform to UL standard and shall be specified as following:
a. The type of terminal — Threaded terminal
b. Number of terminals — 5 poles
c. Rated voltage — Minimum 120V (low voltage); 347V (high voltage)
d. Rated connecting capacity — Minimum 18AWG, 600V
e. Fixing method — fixed inside the connecting box
3. Before using the light, please check if the light was damaged during transportation. If any damage is there, please DO NOT install or use it
4. The product itself and all its components should NOT be mechanically stressed
5. Installation MUST NOT damage or destroy conducting paths or other parts of the product
6. Correct electrical polarity needs to be observed. Wrong polarity may damage or destroy the LED products
7. If fixing on metallic or otherwise conductive surfaces, there should be an electrical insulator between the product and the mounting surface
8. ALL LEDs are static sensitive. Precautions should be taken to ensure that LEDs are well protected from ESD during handling, even though the
9.....chips are safe in low static-electric discharge events
9. DO NOT operate LEDs in reverse bias
10. Identify Positive (+) and negative (-) outputs of the power supply by using a multimeter
11. Electrical connection should be in a dry area unless adequately sealed
12. This product series emits high light output. DO NOT look directly into the light emitting area. Direct exposure to the light over an extended
12. period of time may harm eyes
13. Minimum +105°C supply conductors
14. This product MUST be installed in accordance with the applicable installation code by a person familiar with the construction and operation of
14. the product and the hazards involved
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property.
If in any doubt about the installation or use of this product, consult a competent electrician.

INSTALLATION GUIDE

info@ortechindustries.com
www.ortechindustries.com

WARNING

WARNING — THE INSTALLATION MUST BE CARRIED OUT BY
A QUALIFIED ELECTRICIAN.
1. LED Wall Packs are suitable for using in wet location
2. Please keep the LED Wall Packs away from any corrosive substance, and please use dry or
damp cloth when you clean it
3. LED Wall Packs can only be installed by a qualified electrician
4. Before installation or maintenance, please disconnect the power to prevent electric shock

Application Notice

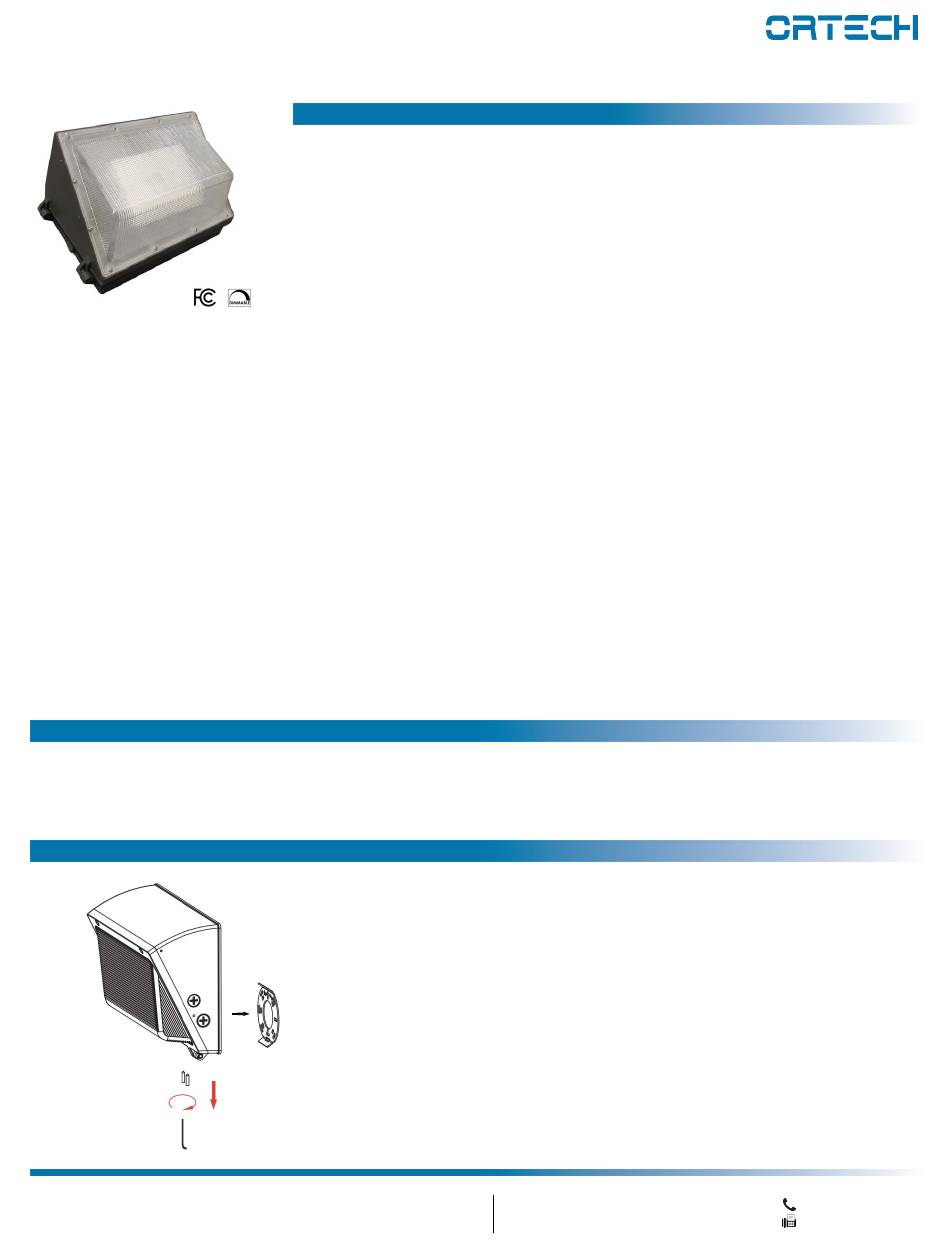

1. Get the screw on the fixture loosened by using the hexagon wrench.
DO NOT make it off from the fixture completely.
Then, take off the mounting plate on the fixture.
13376 Comber Way
Surrey BC V3W 5V9
375 Admiral Blvd
Mississauga ,
ON L5T 2N1
