RH Teen VALENTINA Assembly Instructions

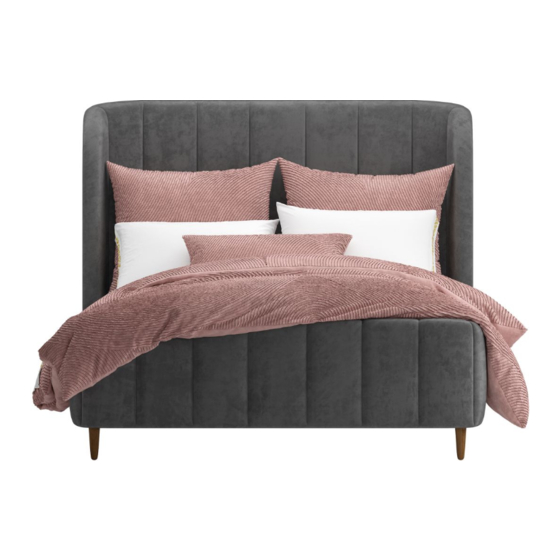

VALENTINA UPHOLSTERED PLATFORM BED TWIN - ASSEMBLY INSTRUCTIONS
A. HEADBOARD (1)
B. SIDE RAILS (2)
C. FOOTBOARD (1)
D. SLATS (4)
E. PLATFORMS (2)
Phillips-Head Screwdriver (not included)
Stand the Headboard (A) upright and insert Thread Rods (1) into the prefabricated holes. Align the Side Rails (B).
Attach Curved Washer (2), Lock Washer (3), and Nuts (4) onto the Thread Rods (1) and tighten the Nuts (4)
and Thread Rods (1) with Spanner Wrech (5), as shown in Diagram I. Repeat the procedure to attach Side Rails
(B) to Footboard (C).
Place the Slats (D) on the top of the Side Rail's (B) side slats and fasten using Screw (7), as shown in
Diagram II.
Lay the Platform Panel (E) on the top of the Slats (D), then fasten with Screw (6), as shown in Diagram III.
1 of 2
