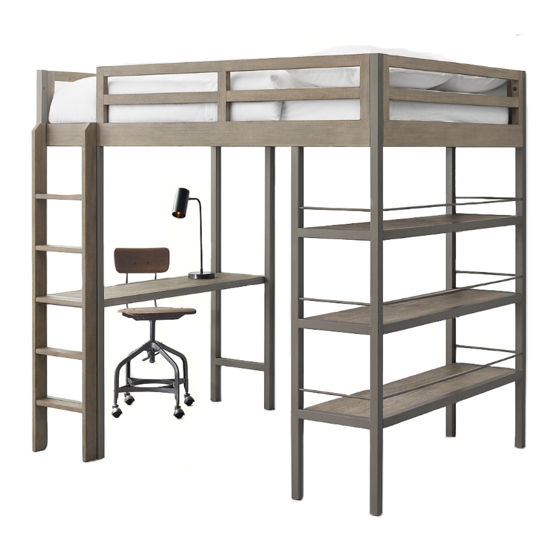

RH Teen KIERAN 0288-12/13 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Made in Vietnam
Model No: 0288 - 12/13
Distributed in the U.S.A by:
RH Baby&Child
2900 N MACARTHUR DRIVE
TRACY, CA 95376
www.rhbabyandchild.com
Distributed in Canada by:
RH Canada, Inc.
1500-1055 West Georgia Street
Vancouver, British Columbia
V6E4N7
W A RN IN G : Rea d all
Instr uct i ons be for e a s s e mb l in g
thi s pr o du ct .
KEEP I N STR UCT I O NS FO R
FUTURE US E .
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact us first. You can also order parts by writing to
the address above. Include the product model number, color, and a brief description of the part. Or call 1-800-762-1751.
CARE AND CLEANING
DO NOT scratch or chip the finish. DO NOT use abrasive chemicals for cleaning. If the crib is to be stored, store in a cool,
dry place and carefully package all original hardware to protect from loss.
TOOLS AND INSTALLATION
Tools needed: Key Wrench (included).
Two people are recommended for assembly.
When inserting bolts, turn clockwise until tight. Then loosen 1/2-3/4 of a turn. After bed is completely assembled,
return to each bolt and tighten.
K I E RA N S T UD Y LO FT BED
Page 1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the KIERAN 0288-12/13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RH Teen KIERAN 0288-12/13

Summary of Contents for RH Teen KIERAN 0288-12/13

  • Page 1 K I E RA N S T UD Y LO FT BED Made in Vietnam Model No: 0288 - 12/13 Distributed in the U.S.A by: RH Baby&Child 2900 N MACARTHUR DRIVE TRACY, CA 95376 www.rhbabyandchild.com Distributed in Canada by: RH Canada, Inc. 1500-1055 West Georgia Street Vancouver, British Columbia V6E4N7...
  • Page 2 K I E R A N S T UD Y LOFT BED I M P O R T A N T S A F E T Y I N F O R M A T I O N F O R B U N K B E D 1.
  • Page 3 K I ERA N S T U D Y LOFT BED P A R T S I D E N T I F I C A T I O N (A) Headboard (x1 piece) (B) Footboard (x1 piece) (C) Long Guard Rail (x1 piece) (D) Front Guard Rail (x1 piece) (E) Shelf Panels (x4 pieces) (F) Support Bars (x4 pieces)

  • Page 4: Tools Needed

    K I E R A N S T UD Y LOFT BED H A R D W A R E I N C L U D E D ITEM DESCRIPTION QTY. 1 piece Key Wrench 4mm 4 pieces Small Bolts 1/4"x 5/8" Long Bolt 5/16"x 2-1/2"...
  • Page 5 K I E RA N S T U D Y LOFT BED STEP 1: Insert the Threaded Rods (4) into the posts of Headboard/Footboard (A, B), (as seen below). STEP 2: Lay the Shelf Panels (E) into the Headboadr (A) and the Footboard (B) (as seen below).
  • Page 6 K I E RA N S T U D Y LOFT BED STEP 3: Attach the Shelf panels (E) to the Headboadr (A) and the Footboard (B) using 28 Short Screws (9), and tighten with Phillips-head screwdrive (not included). STEP 4: Lay the Long Guard Rail (C), Front Guard Rail (D), 9 (x28 pcs.) to the posts of the headboard /footboard...
  • Page 7 K I ERA N S T U D Y LOFT BED STEP 5: Attach the Long Guard Rail (C) and Front Guard Rail (D) on top the posts of headboard/footboard, using Small Bolts (2) and tighten with Allen Key (1). STEP 6: Insert Long Bolts (3) and tighten with Allen Key (1).
  • Page 8 K I ERA N S T U D Y LOFT BED STEP 7: Position the Ladder (H) in the opening between the Front Guard Rail (D) and Footboard (B). Hook the Ladder (H) over the cross bar of Front Guard Rail (D) and Right Leg of Footboard (B). Insert the 2 Middle Screws (8), and tighten with Phillips-head screwdrive (not included).
  • Page 9 K I E R A N S T UD Y LOFT BED STEP 8: Lay the Support Bars (F) between the Long Guard Rail (C) and Front Guard Rail (D), using Long Screws (7) and tighten with Phillips - head screwdriver (not included). Phillips-head screwdriver.
  • Page 10 K I E R A N S T UD Y LOFT BED W A R N I N G : After the bunk bed is completely assembled, return to each bolt and tighten to snug fit. DO NOT over tighten. Can be adjusted by using leveler.
  • Page 11 K IE R A N S T UD Y LOF T BED INSTALL MATTRESS STEP 10: MATTRESS SPECIFICATIONS FOR TOP BUNK: The following size mattress and foundation are specified for use with this bunk bed: MATTRESS DIMENSION SPECIFICATIONS FOR TOP BUNK Twin-Over-Twin bunk: 75"...
