RH Teen MESA TWIN BED Instructions

PARTS INCLUDED
A [1] HEADBOARD
B1 [1] LEFT SIDE RAIL
B2 [1] RIGHT SIDE RAIL
C [1] FOOTBOARD
D [1] SET OF BED SLATS
ASSEMBLY INSTRUCTIONS
1. Place the headboard (A) upright in the position you wish the bed to be in when fully
assembled. Secure the threaded rod (1) to the fixed nut in the headboard (A) by simply
turning it manually. Raise the Left side rail (B1) up and place the rod (1) to align with the
bore holes on the end of the Left side rail (B1). Put the Left side rail (B1) up against the
headboard (A) so the threaded rods go through the bore holes. Insert curved washer (2)
and lock washer (3), place hex nuts (4) on threaded rod (1) and tighten hex nuts (4) with
wrench (5). See FIGURE 1.
2. Repeat the above procedure with the Right side rail (B2) to attach it to the headboard (A),
and then repeat to connect Side rails (B1/B2) to the footboard (C).

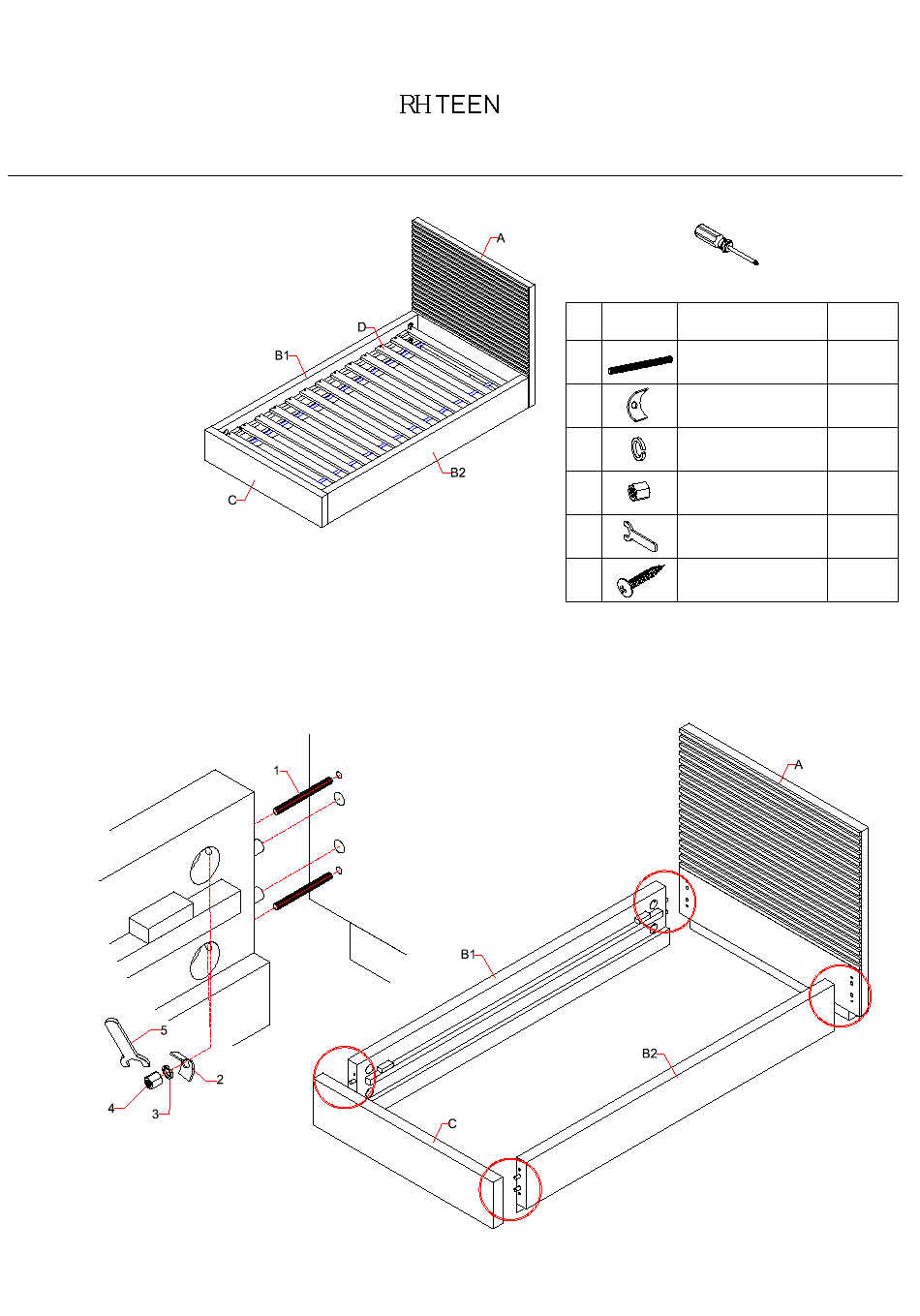

FIGURE 1
M E S A T W I N B E D I N S T R U C T I O N S
TOOLS NEEDED
Phillips Screwdriver
(Not provided)
HARDWARE INCLUDED
NO. ITEM
1
2
3
4
5
6
DESCRIPTION QTY.
Threaded Rod
8 pcs.
Curved Washer
8 pcs.
8 pcs.
Lock Washer
8 pcs.
Hex Nut
1 pc
Wrench
26 pcs.
Round head screw
Page 1 of 2
