BDI SEQUEL Assembly Instructions

Component List
A - 4mm Hex L-Wrench x 1
B - Cabinet x 1
C - 8-32 x 12mm
Phillips Screw x 20
D - Brake Caster x 2
E - Center Caster x 1
F - Rear Caster x 2
G - 8-32 x 22mm
Phillips Screw x 4
H - Drawer Pull x 2
I - 1/4-20 x 15mm
Screw x 3
J - Glass Top x 1
K - Legal File Folder
Stretchers x 4
L - Rubber Stem Bumpers x 2
Designed by Matthew Weatherly
These distinctive product configurations are protected by US and international
patents, trade dress, and/or copyright laws.
BDI are trademarks of Becker Designed, Inc.
All Rights reserved. © 2010 BDI
6005 TALL FILE PEDESTAL Revision: 04-13-2011
SEQUEL

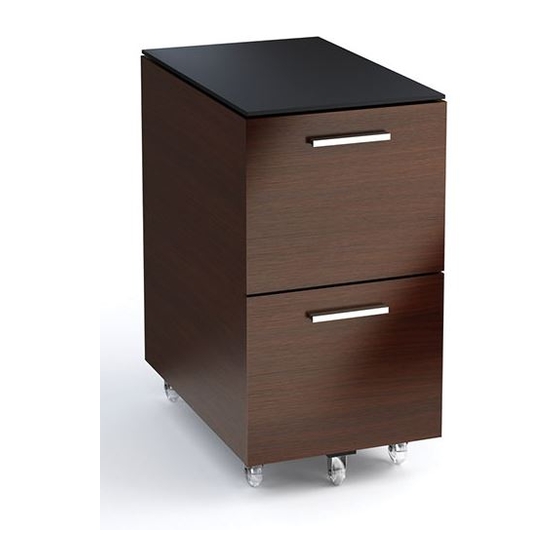

6005 TALL FILE PEDESTAL
SEQUEL 6005 TALL FILE PEDESTAL is engineered for easy assembly. Carefully
follow this procedure to prevent any damage.
Placement and Maintenance
SEQUEL 6005 TALL FILE PEDESTAL is designed for indoor use on level floors.
Clean glass with glass cleaner, and wood veneer with a moist cloth.
Step 1
Unpack and Identify
Unpack and identify the components at left. Note that some components
are shipped inside the cabinet. The assembly workspace should be a nonmarring
surface such as carpet. A Phillips Screwdriver will be needed for
assembly. For missing hardware pieces, please contact BDI Customer
Service at customerservice@bdiusa.com. For all other concerns, please
contact your BDI Retailer.
Step 2
Install Casters
Carefully position Cabinet (B) on its top surface so that bottom surface is
up, then attach a Caster at each of the five (5) exposed installation plates
using 8-32 x 12mm Phillips Screw (C) and a Phillips Screwdriver.
BDIUSA.COM
E x 1
C x 4
1
ASSEMBLY INSTRUCTIONS
CUSTOMERSERVICE@BDIUSA.COM
FRONT
D x 2
C x 8
F x 2
C x 8
