  • Page 1 SI-06 Series User Manual...
  • Page 2 Revision Release Date V0.1 2013/04/11 V0.2 2014/09/23...
  • Page 3 Copyright © 2013 IBASE Technology INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC.

  • Page 4: Table Of Contents

    Table of Contents Setting up your system ......................5 Care during use ........................6 Acknowledgments ....................... 7 Table: Terms and Abbreviation .................... 7 Accessories ......................8 Components ......................8 I/O View ..........................8 System Specification ....................10 Mechanical Specification ..................11 SI-06 Mounting Bracket Solution ..................12 SI-06 VESA Mounting Solution ...................

  • Page 5: Setting Up Your System

    Safety Information Your SI-06 is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system  Read and follow all instructions in the documentation before you operate your system.

  • Page 6: Care During Use

    Care during use  Do not walk on the power cord or allow anything to rest on it.  Do not spill water or any other liquids on your system.  When the system is turned off, a small amount of electrical current still flows. Always unplug all power, and network cables from the power outlets before cleaning the system.

  • Page 7: Acknowledgments

    Acknowledgments  AMI is a registered trademark of AMI Software International, Inc.  Intel are registered trademarks of Intel Corporation.  Microsoft Windows is a registered trademark of Microsoft Corporation.  FINTEK is a registered trademark of FINTEK Electronics Corporation. ...

  • Page 8: Accessories

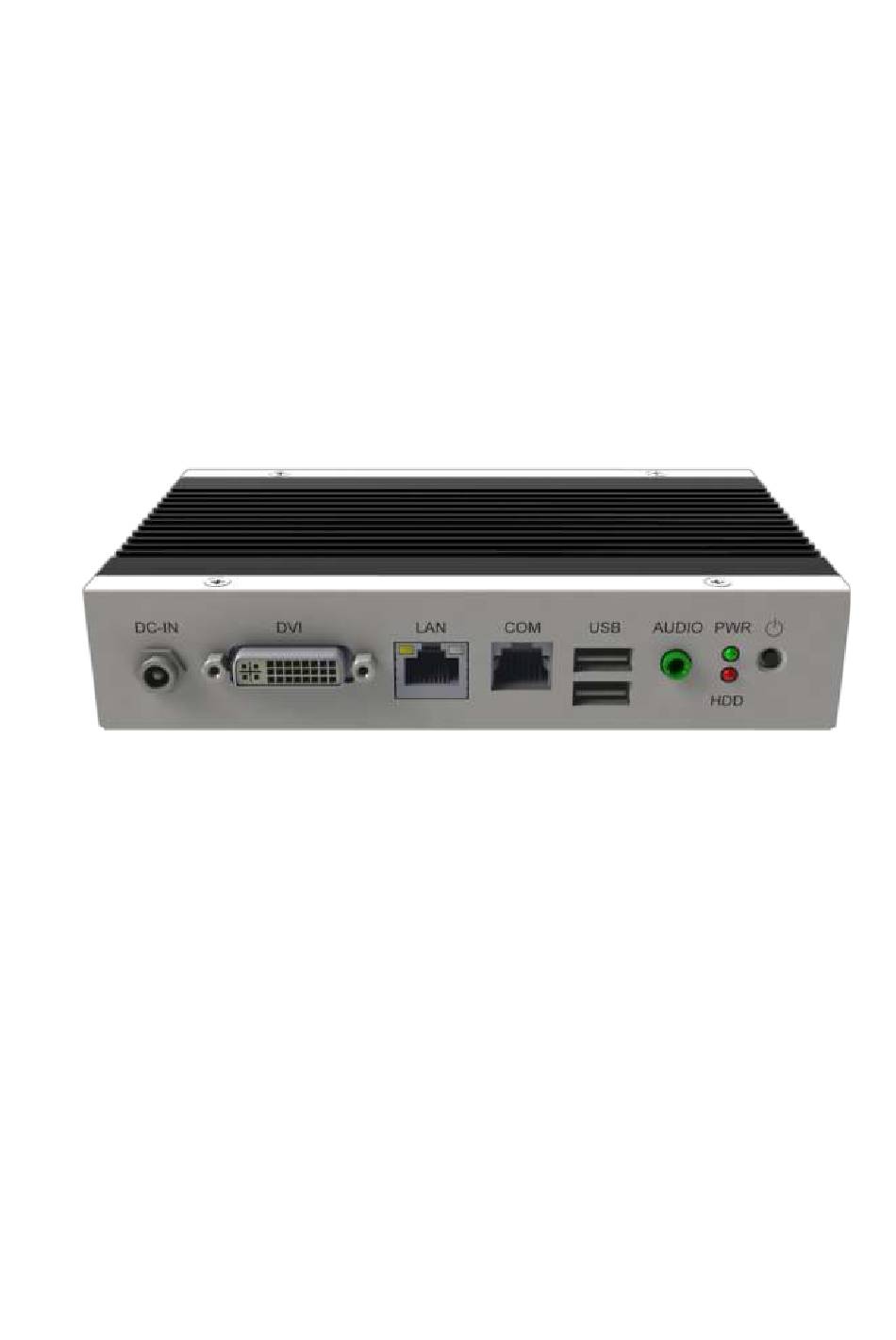

    Accessories Components I/O View Refer to the diagram below to identify the components on this side of the system.
  • Page 9 Power Button The power switch allows powering ON and OFF the system. The hard disk LED blinks when data is being written into or read from the hard disk. Power The power bottom LED illuminated when system been power on. DVI-I Port The DVI-I interface is to transmitting uncompressed digital data.

  • Page 10: System Specification

    System Specifications ‧ This specification is subject to change without prior notice.

  • Page 11: Mechanical Specification

    Mechanical Specification...

  • Page 12: Mounting Bracket Solution

    SI-06 Mounting Bracket Solution SI-06 mounting bracket (IBASE) part number: SC2SIMK1---0A1100P Install SI-06 to the mounting bracket using 4 screws, as shown in the picture.

  • Page 13: Vesa Mounting Solution

    SI-06 VESA Mounting Solution You can install SI-06 on plastic (LCD monitor), wood, drywall surface over studs, or a solid concrete or metal plane directly. Ensure the installer uses at least four M3 length 6mm screws to secure the system on wall. Six M3 length 6mm screws are recommended to secure the system on wall.

  • Page 14: Exploded View Of The Si-06 Assembly

    Exploded View of the SI-06 Assembly Parts Description Part No. Description Part No. Description Top cover Main chassis Rear panel SI-06 MB HDD holder 2.5” HDD Brackets Installation...

  • Page 15: Installing The Memory

    Installing the memory The IB901 board supports two DDR3 memory socket for a maximum total memory of 16GB in DDR3 SO-DIMM memory type. Installing and Removing Memory Modules To install the DDR3 modules, locate the memory slot on the board and perform the following steps: Hold the DDR3 module so that the key of the DDR3 module aligns with that on the memory slot.

  • Page 16: Jumper Locations On Ib901

    Setting the Jumpers The following lists the connectors on IB901 and their respective functions. Jumper Locations on IB901...

  • Page 17: Connector Locations On Ib901

    J3: Clear CMOS Contents Setting Function Pin 1-2 Normal Short/Closed Pin 2-3 Clear CMOS Short/Closed Connector Locations on IB901 Top Side Bottom Side...
  • Page 18 SW1: Power Switch CN1: 3G SIM Card Slot CN2: SATA 2.5” HDD/SSD Connector CN4: Gigabit LAN Connector (Realtek RTL8111E) This RJ45 LAN connector features LAN wakeup. CN5: COM Serial Port Pin # Signal Name DSR, Data set ready GND, ground GND, ground TXD, Transmit data RXD, Receive data...
  • Page 19 CN8: DVI-I Connector CRT via DVI-I connector Signal Name Signal Name Pin # Pin # DATA 2- HOT POWER DATA 2+ DATA 0- Shield 2/4 DATA 0+ DATA 4- SHIELD 0/5 DATA 4+ DATA 5- DDC CLOCK DATA 5+ DDC DATA SHIELD CLK VSYNC CLOCK -...

  • Page 20: Bios Setup

    BIOS Setup BIOS Introduction The BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.
  • Page 21 Advanced Settings This section allows you to configure and improve your system and allows you to set up some system features according to your preference. Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit Legacy OpROM Support Launch PXE OpROM Disabled ►...
  • Page 22 PCI Subsystem Settings Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit PCI Bus Driver Version V 2.05.01 PCI ROM Priority Legacy ROM PCI Common Settings → ←→ ← Select Screen ↑↓ Select Item PCI Latency Timer 32 PCI Bus Clocks Enter: Select VGA Palette Snoop Disabled...
  • Page 23 ACPI Settings Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit ACPI Settings → ← Select Screen Enable ACPI Auto Configuration Disabled ↑↓ Select Item Enter: Select Change Opt Enable Hibernation Enabled F1: General Help ACPI Sleep State S1 (CPU Stop Clock) F2: Previous Values F3: Optimized Default...
  • Page 24 CPU Configuration This section shows the CPU configuration parameters. Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit CPU Configuration Processor Type Intel(R) Atom(TM) CPU EMT64 Supported Processor Speed 1865 MHz System Bus Speed 533 MHz Ratio Status Actual Ratio System Bus Speed 533 MHz...
  • Page 25 iSmart Controller Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit iSmart Controller → ← Select Screen Power-On after Power failure Enable ↑↓ Select Item Enter: Select Schedule Slot 1 None Change Opt F1: General Help Schedule Slot 2 None F2: Previous Values F3: Optimized Default...
  • Page 26 USB Configuration Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit USB Configuration USB Devices: None Legacy USB Support Enabled → ← Select Screen EHCI Hand-off Enabled ↑↓ Select Item Enter: Select Change Opt USB hardware delays and time-outs: F1: General Help USB Transfer time-out 20 sec...
  • Page 27 Super IO Configuration Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit Super IO Configuration → ← Select Screen ↑↓ Select Item Super IO Chip F81801 Enter: Select Change Opt ► Serial Port 0 Configuration F1: General Help F2: Previous Values F3: Optimized Default F4: Save &...
  • Page 28 Chipset Settings This section allows you to configure and improve your system and allows you to set up some system features according to your preference. Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit → ← Select Screen ►...
  • Page 29 Host Bridge This section allows you to configure the Host Bridge Chipset. Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit ► Memory Frequency and Timing → ← Select Screen ↑↓ Select Item Enter: Select Change Opt ************Memory Information************ F1: General Help F2: Previous Values Memory Frequency...
  • Page 30 South Bridge This section allows you to configure the South Bridge Chipset. Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit ► TPT Device ► PCI Express Root Port0 ► PCI Express Root Port1 → ← Select Screen ↑↓...
  • Page 31 PCI Express Root Port0 Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit PCI Express Port 0 Enabled → ← Select Screen ↑↓ Select Item Port 0 IOxAPIC Disabled Enter: Select Automatic ASPM Manual Change Opt ASPM L0s Disabled F1: General Help F2: Previous Values...
  • Page 32 Boot Settings Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit Boot Configuration Setup Prompt Timeout Bootup NumLock State Quiet Boot Disabled Fast Boot Disabled CSM16 Module Version 07.68 → ← Select Screen GateA20 Active Upon Request ↑↓ Select Item Enter: Select Option ROM Messages Force BIOS...
  • Page 33 Security Settings This section allows you to configure and improve your system and allows you to set up some system features according to your preference. Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit Password Description If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.
  • Page 34 Save & Exit Settings Aptio Setup Utility Main Advanced Chipset Boot Security Save & Exit Save Changes and Exit Discard Changes and Exit Save Changes and Reset Discard Changes and Reset Save Options → ← Select Screen Save Changes ↑↓ Select Item Discard Changes Enter: Select Restore Defaults...

  • Page 35: Drivers Installation

    Drivers Installation IMPORTANT NOTE: After installing your Windows operating system, you must install first the Intel Chipset Software Installation Utility before proceeding with the drivers installation. Intel Chipset Software Installation Utility The Intel Chipset Drivers should be installed first before the software drivers to enable Plug &...
  • Page 36 VGA Drivers Installation To install the VGA drivers, follow the steps below to proceed with the installation. 1. Click Intel(R) Cedarview Graphics Driver. 2. When the Welcome screen appears, click Next to continue. 3. Click Yes to to agree with the license agreement and continue the installation. 4.
  • Page 37 Realtek HD Audio Driver Installation 1. Click Realtek High Definition Audio Driver. 2. On the Welcome to the InstallShield Wizard screen, click Next to proceed with and complete the installation process. 3. Restart the computer when prompted.
  • Page 38 Realtek LAN Controller Drivers Installation Follow the steps below to install the Realtek LAN Drivers. 1. Click Realtek GbE_FE Ethernet PCI-E NIC Driver. 2. When the welcome screen to InstallShield Wizard appears, click Next to start the installation. 3. On Ready to Install the Program screen, click Install to continue. 4.

  • Page 39: Appendix

    Appendix A. I/O Port Address Map Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used. Address Device Description 0000-001F Direct memory access controller 0000-001F...
  • Page 40 Address Device Description 03F8-03FF Communications Port (COM1) 04D0-04D1 Programmable interrupt controller 0D00-FFFF PCI bus E000-E0FF Realtek PCIe GBE Family Controller E000-E0FF Intel(R) N10/ICH7 Family PCI Express Root Port - 27D0 F000-F01F Intel(R) N10/ICH7 Family SMBus Controller - 27DA F020-0xF03F Intel(R) N10/ICH7 Family USB Universal Host Controller - 27CA F040-F05F Intel(R) N10/ICH7 Family USB Universal Host Controller - 27C8 F060-F06F...
  • Page 41 B. Interrupt Request Lines (IRQ) Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices. Level Function IRQ 0 System timer IRQ 1 Standard PS/2 Keyboard IRQ 4 Communications Port (COM1) IRQ 7 Intel(R) N10/ICH7 Family SMBus Controller - 27DA...
  • Page 42 C. Watchdog Timer Configuration The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sorts of circumstances, the timer will count to zero and the selected outputs will be driven.
  • Page 43 printf("System will reset after %d seconds\n", bTime); if (bTime) {EnableWDT(bTime);}else {DisableWDT(); return 0; //--------------------------------------------------------------------------- void EnableWDT(int interval) unsigned char bBuf; bBuf = Get_F81801_Reg(0x2B); bBuf &= (~0x30); Set_F81801_Reg(0x2B, bBuf); //Enable WDTO Set_F81801_LD(0x07); //switch to logic device 7 Set_F81801_Reg(0x30, 0x01); //enable timer bBuf = Get_F81801_Reg(0xF5);...
  • Page 44 void DisableWDT(void) unsigned char bBuf; Set_F81801_LD(0x07); //switch to logic device 7 bBuf = Get_F81801_Reg(0xFA); bBuf &= ~0x01; Set_F81801_Reg(0xFA, bBuf); //disable WDTO output bBuf = Get_F81801_Reg(0xF5); bBuf &= ~0x20; bBuf |= 0x40; Set_F81801_Reg(0xF5, bBuf); //disable WDT //---------------------------------------------------------------------------...
