Set up

Adjustment volume
Adjustment elements
Q-Pulse Id TMS484
16
6 Set up

6.1 Adjustment of the pressure transmitter

zero - measuring range begin
l
span - measuring range end
l
ti - Integration time
l
TRANSMITTER
1
OPERATE
1 2 3
TRANSMITTER

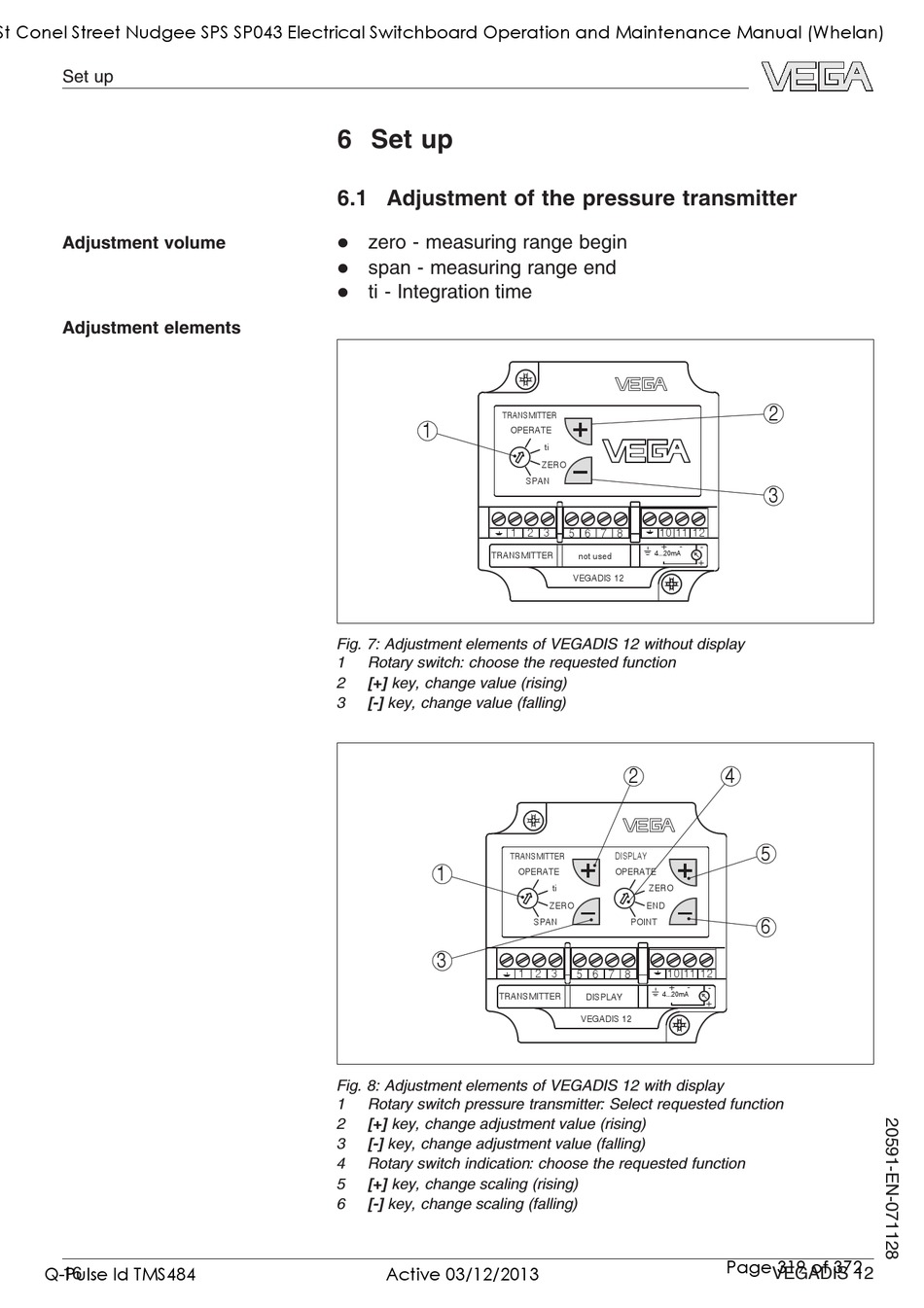

Fig. 7: Adjustment elements of VEGADIS 12 without display
1 Rotary switch: choose the requested function
2 [+] key, change value (rising)
3 [-] key, change value (falling)
TRANSMITTER
1
3
TRANSMITTER
Fig. 8: Adjustment elements of VEGADIS 12 with display
1 Rotary switch pressure transmitter: Select requested function
2 [+] key, change adjustment value (rising)
3 [-] key, change adjustment value (falling)
4 Rotary switch indication: choose the requested function
5 [+] key, change scaling (rising)
6 [-] key, change scaling (falling)
Active 03/12/2013
ti
ZERO
SPAN
5 6 7 8 10 11 12
-
+
4...20mA
not used
VEGADIS 12
2
DISPLAY
OPERATE OPERATE
ti ZERO
ZERO END
SPAN POINT
1 2 3 10 11
5 6 7 8
+ -
4...20mA
DISPLAY
VEGADIS 12
2
3
-
+
4
5
6
12
-
+
Page 319 of 372
VEGADIS 12
