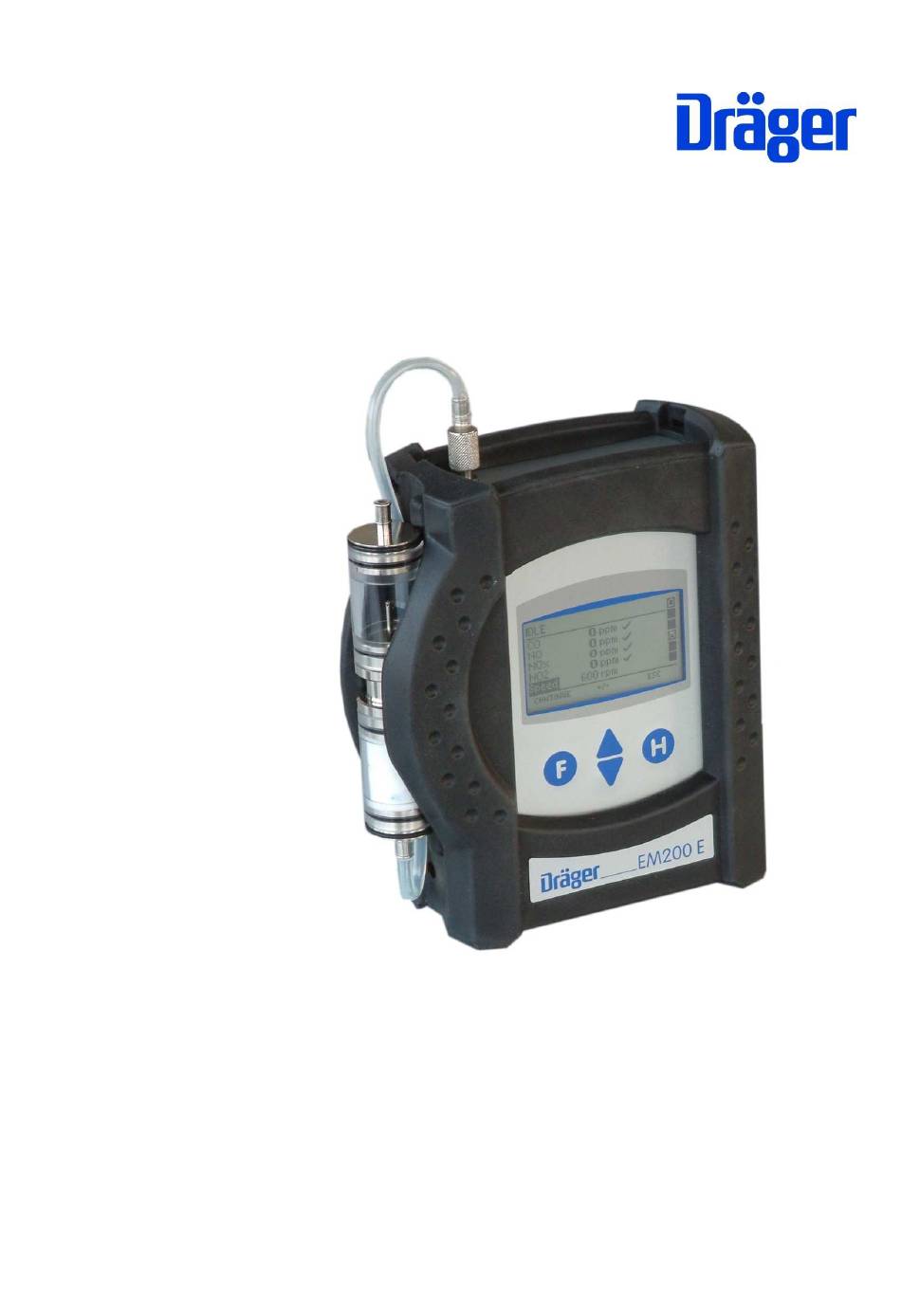

- Page 1 Instruction Manual Dräger MSI EM200-E Dräger MSI GmbH Rohrstraße 32 58093 Hagen Tel.: +49-2331 / 9584 - 0 Fax: +49-2331 / 9584 - 29 e-mail: info@draeger-msi.de 5695022 Edition 08 – February 2017 (Edition 01 – July 2010)
-
Page 2: Table Of Contents
1.4 Specifications for Disposal according WEEE .............. 3 2. The Instrument ......................... 4 3. On / Off Switching of the MSI EM200-E ................5 3.1 Preparing the Instrument .................... 5 3.2 Switching on and Starting of the Check Function ............5 3.3 Check Function of the MSI EM200-E ................ - Page 3 Instruction Manual Dräger MSI EM200-E 13. Technical Data ......................27 13.1 General Technical Data ..................27 13.2 Technical Data of Measured and Calculated Values ..........27 14. Maintenance and Service .................... 28 14.1 Storing ........................28 14.2 Maintenance ......................28 14.3 Service ........................
-
Page 4: Reference Notes
(Trucks etc.). The MSI EM200-E is unlicensed as a gas detection alarm or personal security equipment. Any use of the MSI EM200-E requires a full understanding and strict adherence to these instructions and to national and international standards. -
Page 5: The Instrument
Instruction Manual Dräger MSI EM200-E 2. The Instrument The MSI EM200-E is an electronic multiple channel measuring instrument, analysing the exhaust gas concentrations for engineers, service, etc.. All measurements and checks may be documented by printing or data storage. Front... -
Page 6: On / Off Switching Of The Msi Em200-E
3.2 Switching on and Starting of the Check Function Switch on the instrument by pushing for a second the buttons "F" and "H" together. If the annual Service has to be done, a month earlier the MSI EM200-E displays a reminder to you with the following display screen: After pushing "F"... -
Page 7: Check Function Of The Msi Em200-E
Instruction Manual Dräger MSI EM200-E 3.3 Check Function of the MSI EM200-E Electronic, measuring system and all sensors are tested. If all checks have proved to be error free, then the display will read: With "F" ( ) you affirm the result and call the menu "Selection of Functions" (see 4.). -
Page 8: Selection Of Functions
In every display screen the first line shows the actual function or menu name and the last line informs about the functions of the keys. If you push "H" ( ) the MSI EM200-E marks "Switch off". ▲ ▼ With pushing "... -
Page 9: Emission Measurement
If you push "H" ( ) the MSI EM200-E skips back to "Selection of Functions" (see 4.). ▲ ▼ With pushing "... -
Page 10: Gas Measurement
If the test condition has been selected, the display reads: If you push "H" ( ) the MSI EM200-E skips back to “Emission Test”. With "F" ( ) the measurement values for the actual selected condition are locked,... -
Page 11: Special Functions
The instrument is equipped with a special function protecting the sensors from getting harmed by too high CO-concentrations. During the first contact with the exhaust gas the MSI EM200-E automatically assesses how fast the concentration rises and recognises if the measuring range (8,000 ppm) will be ex- ceeded. -
Page 12: Documentation Menu
Next Measurement = The MSI EM200-E skips back to “Emission test”. A mark behind a condition indicates, that the measurement for this condition has already been done. -
Page 13: Data Processing
) the selected data record is overwritten. With "F" ( ) you skip back to the former display screen. After storing is complete or after pushing "H" ( ) the MSI EM200-E returns to that display screen, from where this function has been called. -
Page 14: Data Menu
Instruction Manual Dräger MSI EM200-E 8.2 Data Menu If "Memory" has been selected, the display reads: With pushing "H" ( ) you may skip back to "Selection of Functions" (see 4.). ▲ ▼ With pushing " " ( ) you may mark the wanted function. -
Page 15: Show Stored Data Records
Instruction Manual Dräger MSI EM200-E 8.4 Show Stored Data Records If "Show: first" or "Show: last" has been called, the stored data records are displayed. In the first case the first data record is marked, in the other case the last one is marked. -
Page 16: Clear Data Memory
8.5 Clear Data Memory After selecting this function the display reads: With "F" ( ) the MSI EM200-E calls "Data Menu" (see 8.2) without deleting data. With "H" ( ) all stored data records are deleted and "Data Menu" (see 8.2) is shown. - Page 17 Instruction Manual Dräger MSI EM200-E In this case the data record listing is displayed like this: 8.6.2 Table with Engine Numbers After selecting "Table settings" the display reads e.g.: For displaying data records with engine numbers push "▼" ( ▲▼...
-
Page 18: Info Function
9. Info Function After selecting "Info" the display reads: You are informed about the analyser (MSI EM200-E), the manufacturer (Dräger MSI GmbH), the date and time when Info Function was called, the version of the firmware (1.1,056), the date of next service (7/2010) and the serial number of the analyser (KRZN-2000). -
Page 19: Selection Or Input Of Engine Number
Engine Number With this function you may create new engine numbers, or if numbers are stored in the MSI EM200-E you may select one of them or alter it. If "Engine No." has been called the display reads e.g.: With "H" ( ) you may skip back to the function from where "Selection or Input of En-... -
Page 20: Select Or Modify Engine Number
Instruction Manual Dräger MSI EM200-E 10.2 Select or Modify Engine Number If "Select or Modify Engine No." is selected, the display reads e.g.: The display informs about engine number. With pushing "H" ( ) "Selection or Input of Engine No." (see 10.) is called again. -
Page 21: Settings
Instruction Manual Dräger MSI EM200-E 11. Settings After selecting "Settings" the display reads: With pushing "H" ( ) you may stop the "Settings" and skip back to the menu "Selection of Functions" (see 4.). ▲ ▼ With pushing " " ( ) you may mark the wanted function. -
Page 22: Date And Time Adjust
Instruction Manual Dräger MSI EM200-E 11.1 Date and Time Adjust If "Clock" has been selected, the display will read e.g.: With pushing "▲ or ▼" ( ) you may modify the position marked with With pushing "F" ( ) you may mark the next position. -
Page 23: Key Beep Switch On / Off
Instruction Manual Dräger MSI EM200-E 11.3 Key Beep Switch on / off After selecting "Key Beep" the display reads: ▲ ▼ With pushing " " ( ) you may select "Key beep ON" or "Key Beep OFF". ON / OFF With pushing "H"... -
Page 24: Display Contrast Adjust
With pushing "▲ or ▼" ( ) you mark the wanted function. ▲▼ With "H" ( ) no more restoring is done and the MSI EM200-E switches to the menu "Set- tings" (see 11.) again. -
Page 25: Display Language Selection
With pushing " " ( ) you may select the wanted language. ▲/▼ With "H" ( ) the marked language is selected and the MSI EM200-E shows the menu "Settings" (see 11.). The selected language remains held after switch off. -
Page 26: Error Messages And Operation References
Instruction Manual Dräger MSI EM200-E Error Messages and Operation References After being switched on, as well as during the measurement process, the MSI EM200-E checks the function of all measuring channels (see 3.3). Error messages are shown before the selection of functions or during normal function. -
Page 27: Operation References
Change battery only with an original MSI spare part. If the charging has been forgotten, the instrument will been shut off automatically. If it is impossible to switch on the MSI EM200-E, because of low voltage, plug in the charger and switch on the instrument again!! - Page 28 Instruction Manual Dräger MSI EM200-E 13. Technical Data 13.1 General Technical Data General Technical Data Humidity 10 - 90 % r.h. not condensing Barometric pressure 800 … 1700 hPa Operating temperature +5 °C ... + 40 °C Storage temperature -20 °C ... + 50 °C Dimensions ca.
- Page 29 Instruction Manual Dräger MSI EM200-E 14. Maintenance and Service 14.1 Storing El.-chem. gas sensors react to gases in ambient conditions, even if the instrument is switched off. Make sure, that the instrument is stored in a place with room temperature with- out contamination with solvents, exhaust gases or combustibles and that it becomes re- charged periodically.
- Page 30 Instruction Manual Dräger MSI EM200-E 15. China RoHS 2 Hazardous Substances Lead Mercury Cadmium Hexavalent Polybromin- Polybromin- Part Name (Pb) (Hg) (Cd) Chromium ated biphenyls ated diphenyl (Cr(VI)) (PBB) ethers (PBDE) O2 sensor PCBA main PCBA display brass parts This table is prepared in accordance with the Provisions of SJ/T 11364.
