to in-facility paging zones), and Audio Enable, step 29 (so that it automatically opens an audio channel
between the door speaker and your telephone access (or attendant access).
Answering the Doorbell
The person inside the building, having heard the door chime, can simply dial the proper extension and
establish two-way communications with the door speaker.
If the input zone (door bell) has been optioned for Audio Enable, then the user's telephone access (or
attendant access, depending on the option chosen in Audio Enable) connects via the paging system to
the door speaker, for a period of 1 0 seconds. If the user doesn't pick up the phone until after the 1 0 sec-
onds has passed, he must dial the Door Speaker zone code to talk.
If the doorbell input has a higher priority than T/A (i.e., is Input #1), and is activated while T/A paging is in
progress, or during a dial tone, then the user will hear the door chime tone and be automatically routed
to the door speaker for two-way communication.
Required Programming: Type of Zone, step 17 (interface the door speaker- phone as an output zone),
Output Zone Type, step 21, (configure output for Audio to the door speaker-phone), Page Enable, step
22, (enables page to the door speaker), Talkback Enable, step 24 (enable talk-back for the door
speaker), and Audio Routing, step 30 (route the telephone access audio to the door speaker-phone).
Door Unlock
The person inside the building can also remotely unlock the door, by entering a numeric code (Door
Code) on the telephone's keypad.
Required Programming: Type of Zone, step 17, (set the door lock device as an output zone), and Output
Zone Type, step 21 (momentary, normally-open switch).
Note: The door ajar switch, if any, should be programmed similarly to a doorbell as an input zone, result-
ing in a tone.
Technical Manuals Online! - http://www.tech-man.com Technical Manuals Online! - http://www.tech-man.com

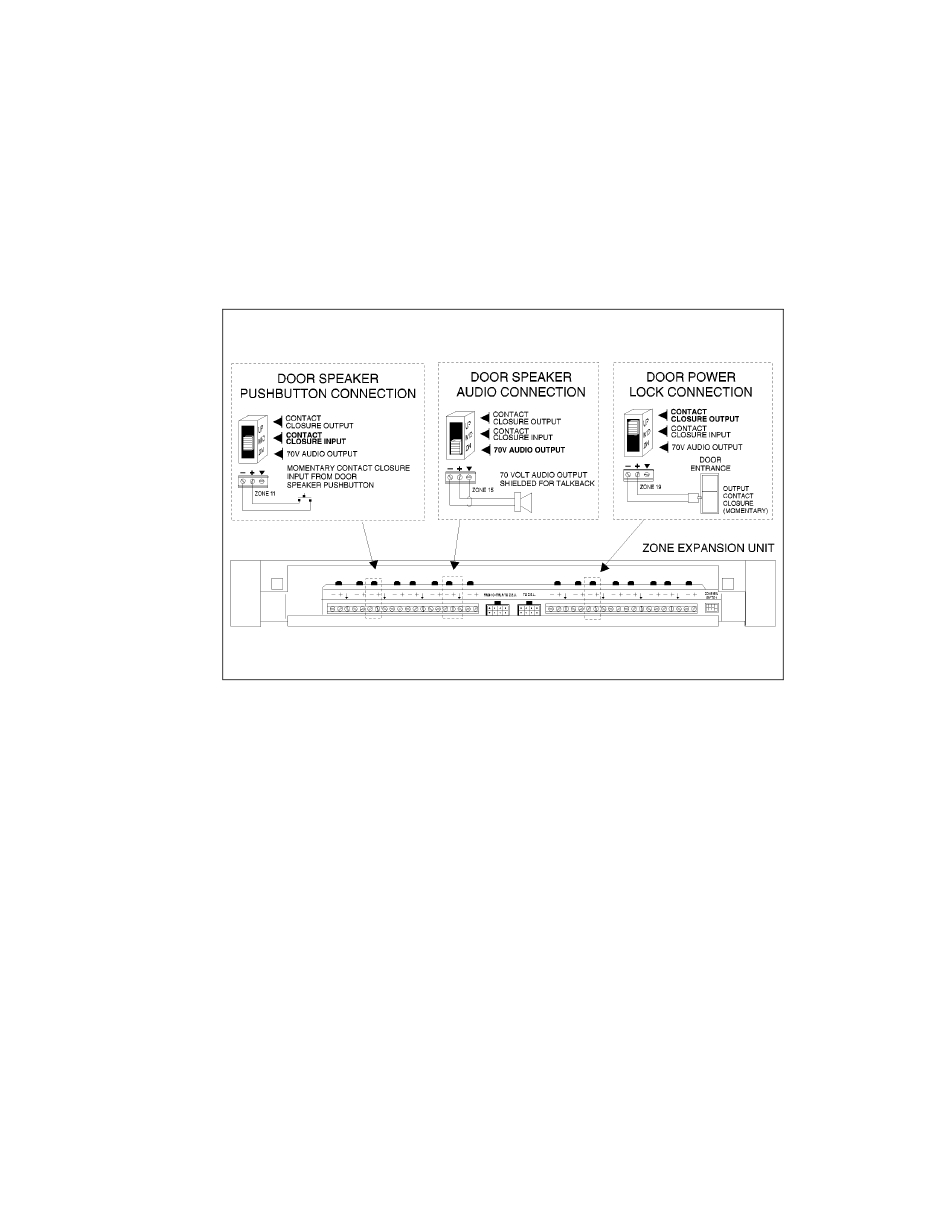

Figure 21. Door Speaker and Control Interfaces
