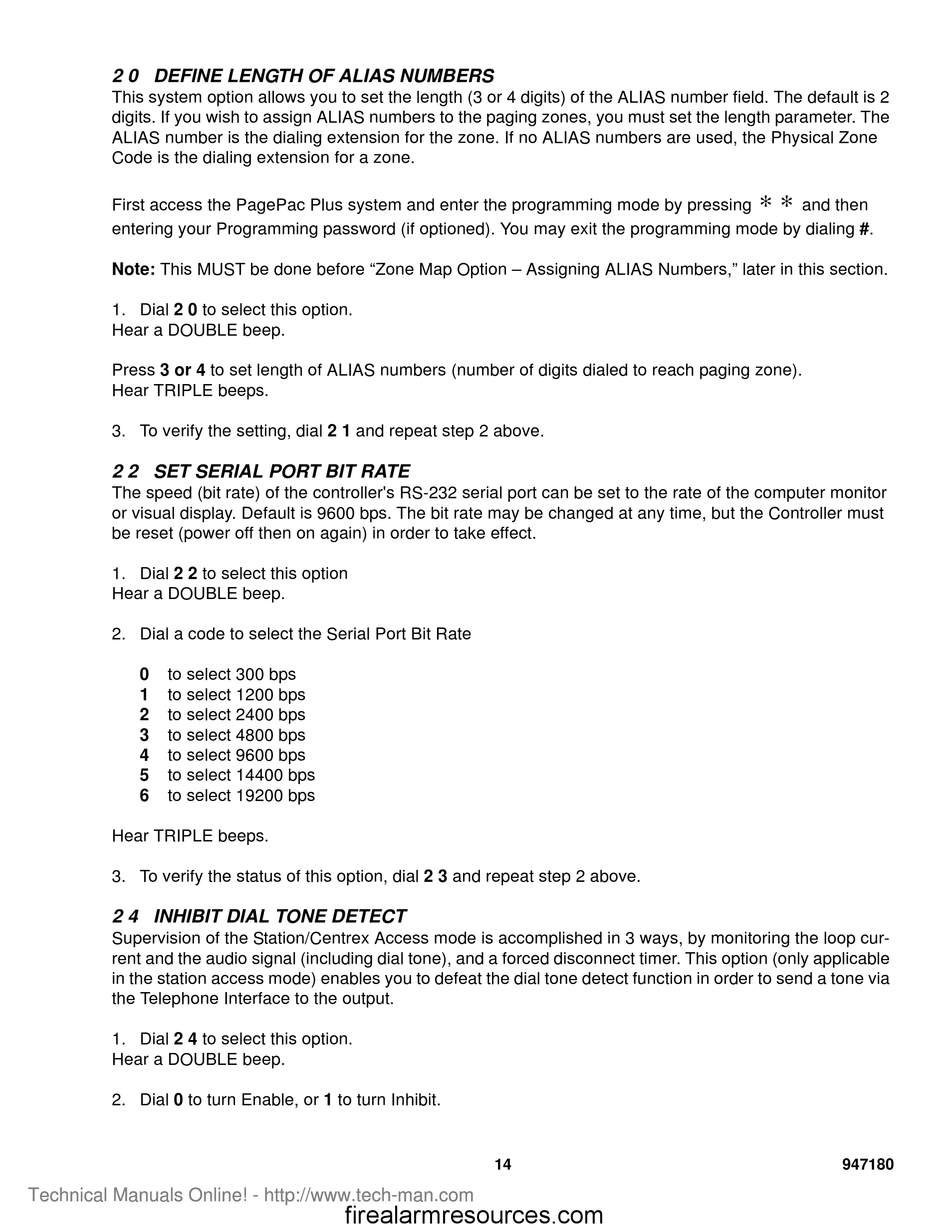

Valcom PagePac Plus V-5323100 Manual page 14

2 0 DEFINE LENGTH OF ALIAS NUMBERS
This system option allows you to set the length (3 or 4 digits) of the ALIAS number field. The default is 2
digits. If you wish to assign ALIAS numbers to the paging zones, you must set the length parameter. The
ALIAS number is the dialing extension for the zone. If no ALIAS numbers are used, the Physical Zone
Code is the dialing extension for a zone.
First access the PagePac Plus system and enter the programming mode by pressing
entering your Programming password (if optioned). You may exit the programming mode by dialing #.
Note: This MUST be done before "Zone Map Option – Assigning ALIAS Numbers," later in this section.
1. Dial 2 0 to select this option.
Hear a DOUBLE beep.
Press 3 or 4 to set length of ALIAS numbers (number of digits dialed to reach paging zone).
Hear TRIPLE beeps.
3. To verify the setting, dial 2 1 and repeat step 2 above.
2 2 SET SERIAL PORT BIT RATE
The speed (bit rate) of the controller's RS-232 serial port can be set to the rate of the computer monitor
or visual display. Default is 9600 bps. The bit rate may be changed at any time, but the Controller must
be reset (power off then on again) in order to take effect.
1. Dial 2 2 to select this option
Hear a DOUBLE beep.
2. Dial a code to select the Serial Port Bit Rate
0 to select 300 bps
1 to select 1200 bps
2 to select 2400 bps
3 to select 4800 bps
4 to select 9600 bps
5 to select 14400 bps
6 to select 19200 bps
Hear TRIPLE beeps.
3. To verify the status of this option, dial 2 3 and repeat step 2 above.
2 4 INHIBIT DIAL TONE DETECT
Supervision of the Station/Centrex Access mode is accomplished in 3 ways, by monitoring the loop cur-
rent and the audio signal (including dial tone), and a forced disconnect timer. This option (only applicable
in the station access mode) enables you to defeat the dial tone detect function in order to send a tone via
the Telephone Interface to the output.
1. Dial 2 4 to select this option.
Hear a DOUBLE beep.
2. Dial 0 to turn Enable, or 1 to turn Inhibit.
