CONTROLLER TO D-SERIES AMPLICENTER
To install a Controller to a D-Series AmpliCenter (see Figure 18):
1. Connect 6-conductor cord from Controller (To Amp) to AmpliCenter Page Input.
2. Connect 70V audio out from AmpliCenter to Controller Amplified Audio terminals.
3. Connect host telephone system input to Controller.
4. Plug power pack connector into Controller.

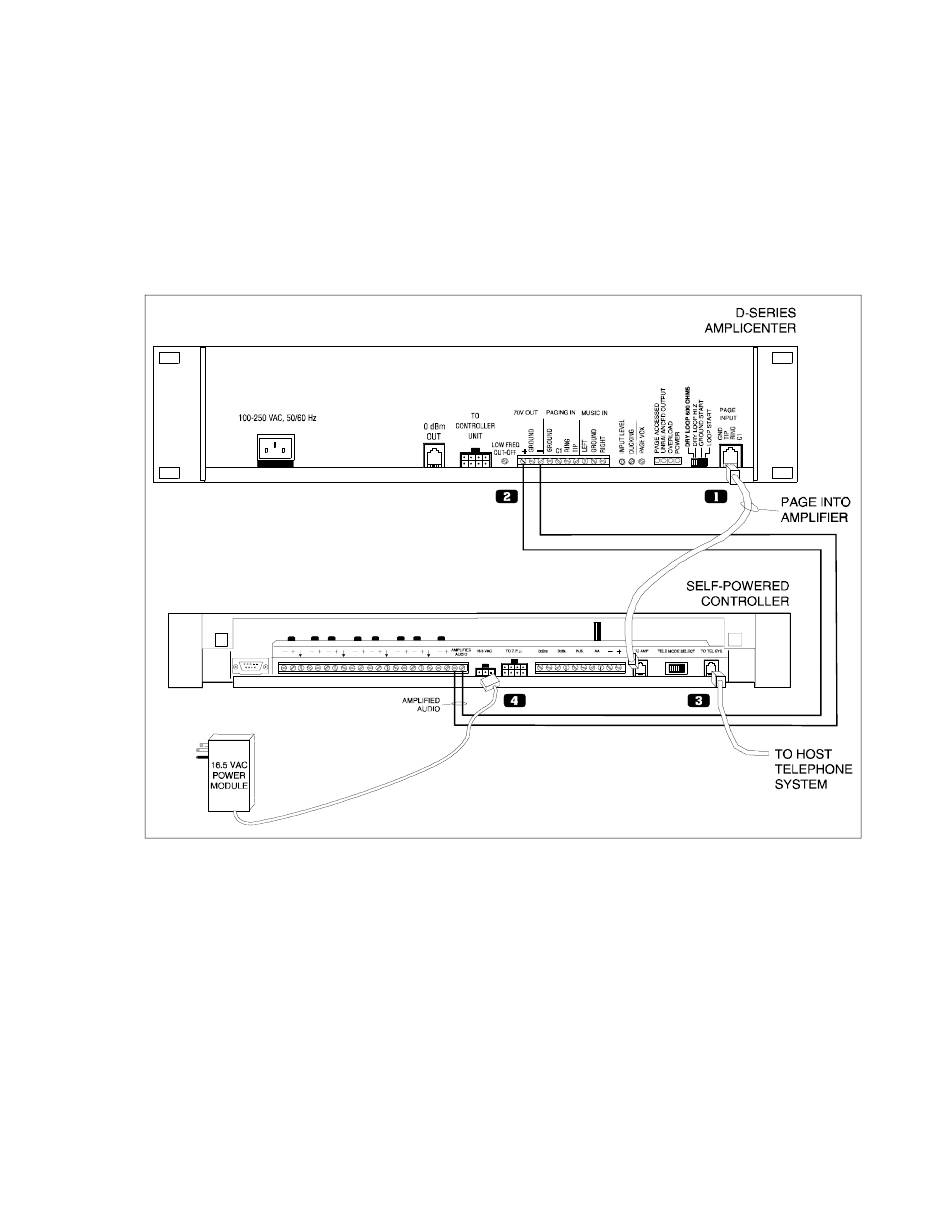

Figure 18. Self-Powered Controller Connected to the PagePac D-Series AmpliCenter
