M-system Mini-M M2EXM Operating Manual page 12

■ OPTION MODE
Option Mode
*1. Refer to [60] Unit (INP Scaling) or [61] Unit (OUT Scaling) for usable unit.
• Parameters
MODE ITEM SETTING PARAMETER
Option 60
61
67
69
70
71
72
01
*1
*1
0 – 30
-5.000 – 5.000
95.000 – 105.000
-5.000 – 5.000
95.000 – 105.000
Lock / Unlock
RANGE
Unit (INP Scaling) Choose from 68 types
Unit (OUT Scaling) Choose from 68 types
Filter time constant 0 – 30
Input Zero fine adjust -5.000 – 5.000
Input Span fine adjust 95.000 – 105.000
Output Zero fine adjust -5.000 – 5.000
Output Span fine adjust 95.000 – 105.000
Lockout setting Lock / Unlock
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

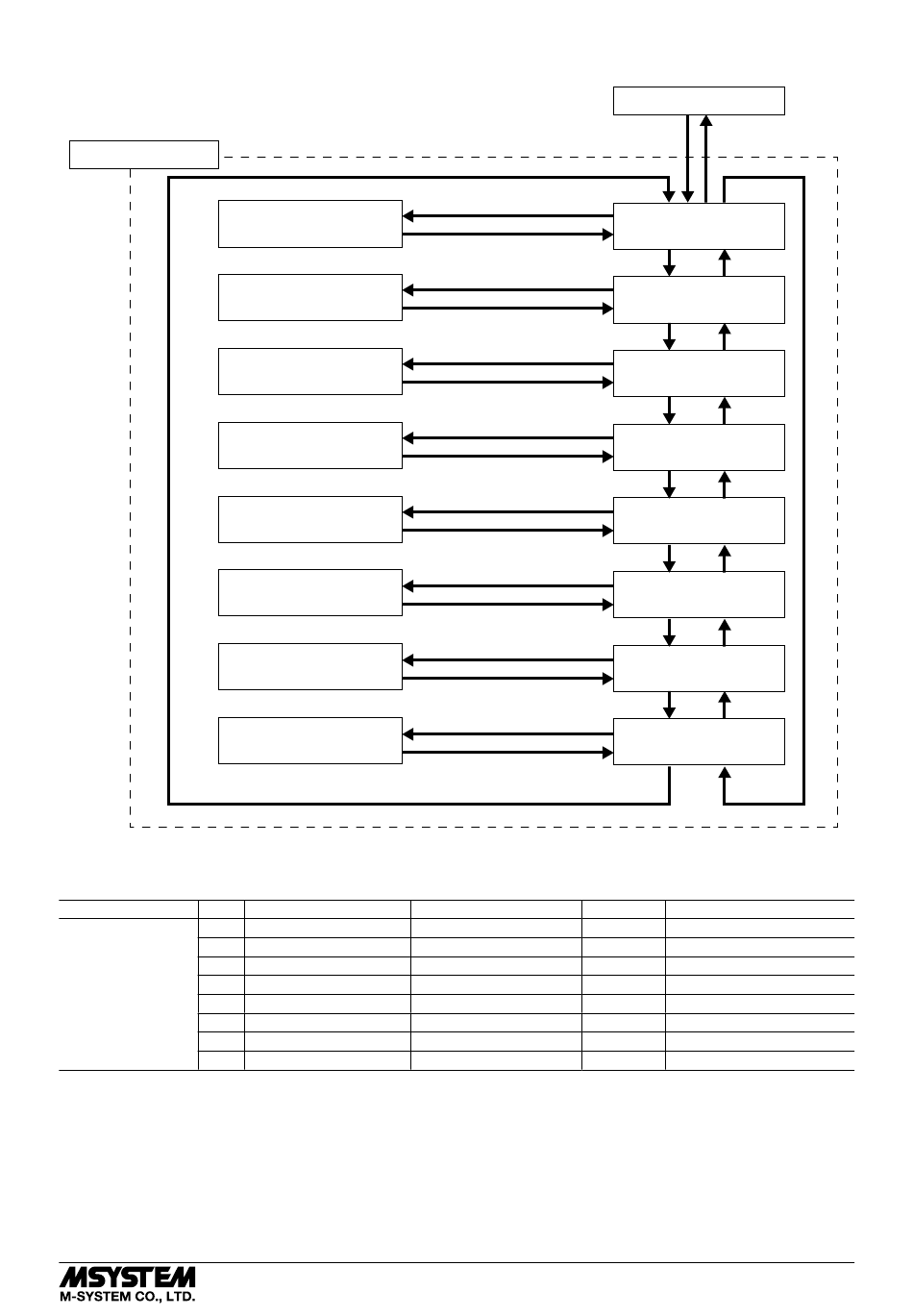

Measuring Mode
