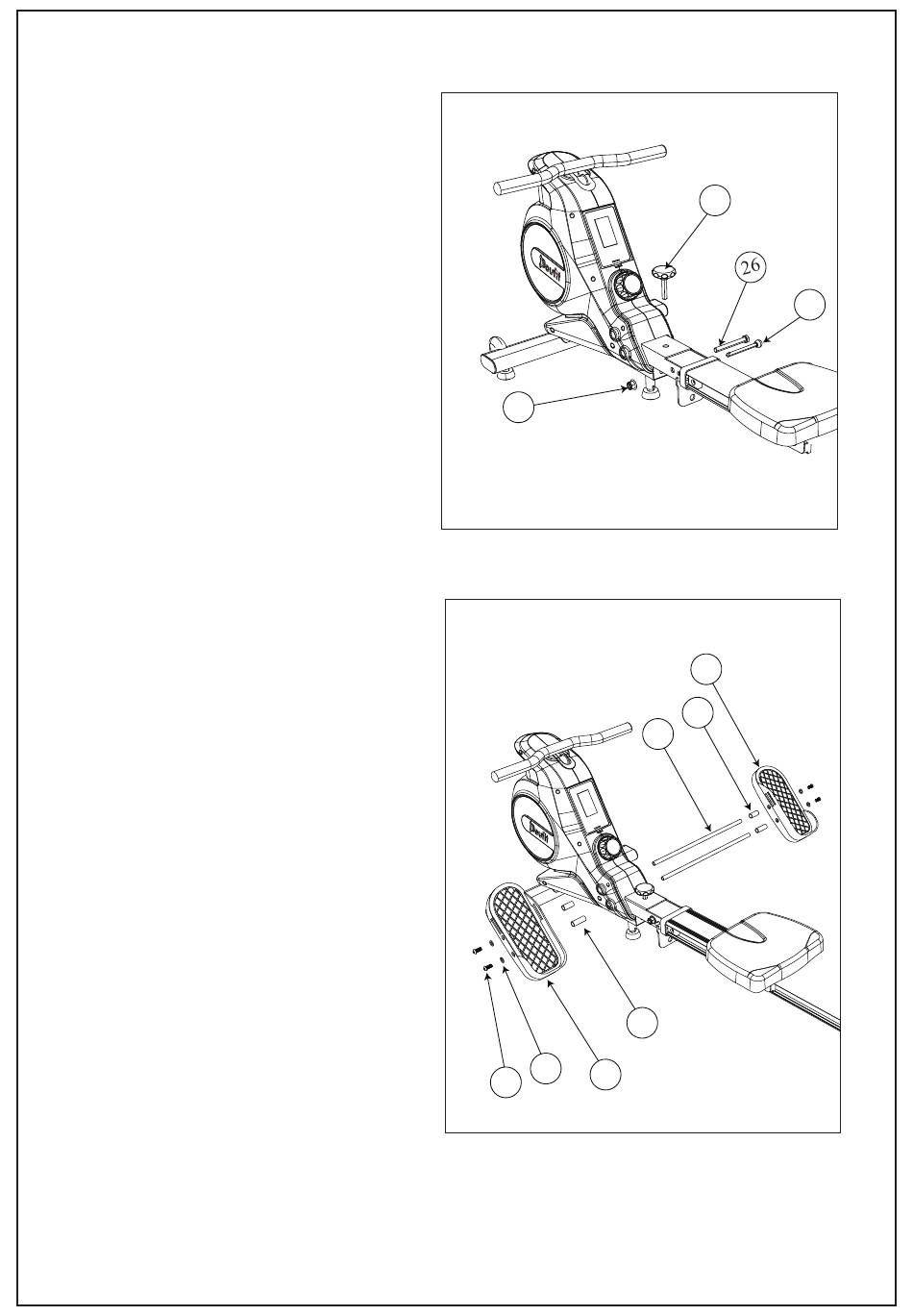

Step 5: Assembling the rail
Connect the rail and the frame.
Screw the M12*100mm hex bolt (No.26)
29
and the M12 lock nut (No.27) to the hole
near to the frame by using two open end
wrenches (No.33).
Insert the detent pin (No.28) to the hole
28
near to the rail. Finally, screw the knob bolt
(No.29) to fix.
27
Step 6: Assemble the pedals
For this step, please prepare four
15
sleeves(No.12)(No.13), two
pedals(No.14)(No.15), two pedal
12
pipes(No.16), four M8 hex bolts(No.30),
16
four big M8 flat washers(No.31), and two
open end wrenches(No.33).
Insert two pedal pipes into the frame.
Attach two short sleeves to the upper pedal
pipe. Attach two long sleeves to the lower
pedal pipe. Attach two pedals to the pedal
pipes.
Attention: the shield of the pedals should
face toward the frame.
Finally, screw four flat washers and four
13
M8*20mm hex bolts to fix the pedals.
21
14
30
