ASSEMBLY INSTRUCTIONS

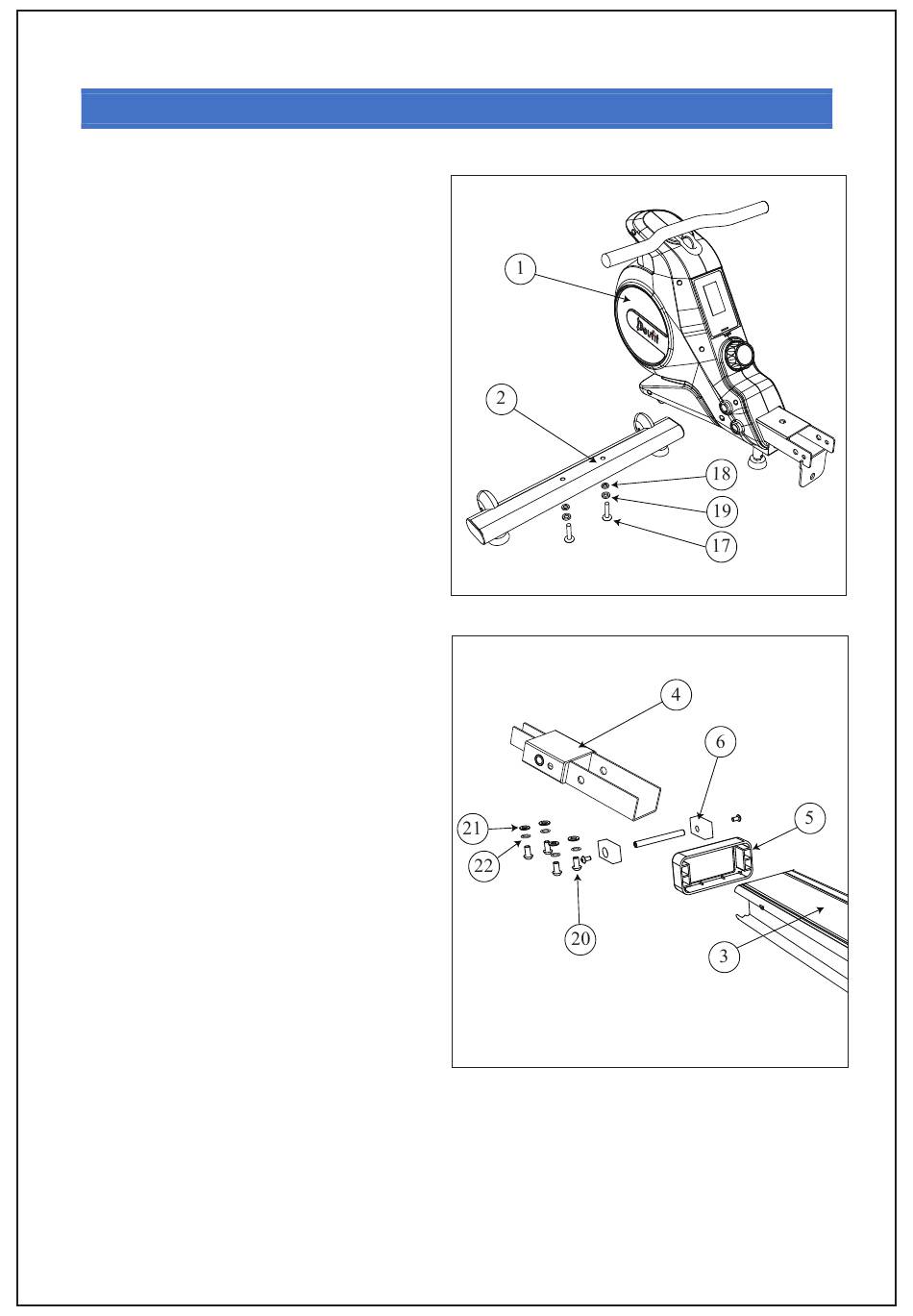

Step 1: Assemble the front foot pipe
Attach the front foot stabliliser bar (No.2) to
the frame (No.1). Attention: the wheels of
the front bar should be facing outward.
Screw two M10*55mm Allen bolts (No.17),
two M10 flat washers (No.18), two M10 split
washers (No.19) using the big Allen wrench
(No.32) to tighten.
Step 2: Assemble the front of the rail
Please the rail (No.3), frame connection
(No.4), front rail cover (No.5), a lock bolt set
(No.6), four M8*16mm Allen bolts (No.20),
four flat washers (No.21), four M8 split
washers (No.22), and the two Allen
wrenches (No.32).
Cover the front rail cover to the front of the
rail. Insert the frame connection into the rail.
Disassemble one side of the lock bolt set and
insert into the horizontal hole of the rail and
screw the rubber pad and the lock bolt back.
Rotate the rubber pads upright to fix.
Screw four M8*16mm Allen bolts, four flat washers, and four split washers under the rail (as
illustrated in the diagram opposite).
