UV-C light inhibits the growth and reproduction of germs and bacteria that circulate through a homes'
heating and air conditioning system. The treatment is a safe, silent, and proven way to make your home a
healthier place to live.
ITEMS INCLUDED IN KIT:
• UVC Germicidal Lamp
• 24 VAC Ballast* (UL listed) with Lamp Cable and connector
• Patented FlexMount™ Articulating Bracket Assembly with Magnet
• Refl ective Shield
• Snap-In Safety Viewport
• UV Hazard Warning Label
• Alcohol Wipe for Lamp
• Hardware for Various Mounting Options
• Installation & Operation Manual
*Minimum 20 VA, 24VAC Transformer required (not included), order part # 46638900 TR50VA or
equivalent.
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light
may cause permanent eye damage or blindness. Never operate the UV-Aire™ Air Purifying System out
of the plenum. Avoid touching the glass portion of the lamp with your hands.
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE PROCEEDING WITH THE INSTALLATION.
This device MUST be installed by a qualifi ed agency in accordance with the manufacturer's installation instructions. The defi nition of
a qualifi ed agency is: any individual, fi rm, corporation or company which either in person or through a representative is engaged
in, and is responsible for, the installation and operation of HVAC appliances, who is experienced in such work, familiar with all the
precautions required, and has complied with all the requirements of the authority having jurisdiction.
Installed By:

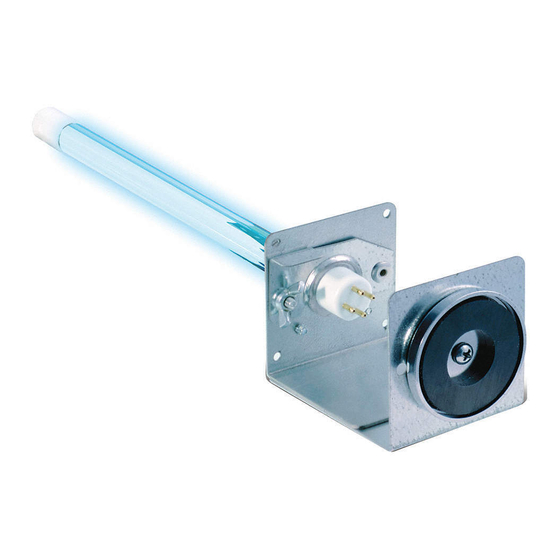

UV-AIRE™ AIR PURIFYING SYSTEM
Model: UV-12FM, 14.5FM
Please retain these instructions after installation.
Phone:
www.fi eldcontrols.com
Installation Date:
P/N 78010015000 RevB 02/18
Advertisement
Table of Contents
Related Manuals for Field Controls UV-AIRE UV-12FM
Summary of Contents for Field Controls UV-AIRE UV-12FM
- Page 1 UV-AIRE™ AIR PURIFYING SYSTEM Model: UV-12FM, 14.5FM UV-C light inhibits the growth and reproduction of germs and bacteria that circulate through a homes’ heating and air conditioning system. The treatment is a safe, silent, and proven way to make your home a healthier place to live.
- Page 2 WARNING: Never expose eyes or skin to UVC light from any source. • Looking directly at the UVC light may cause permanent eye damage or blindness. • Never operate the UV-Aire™ Air Purifying System out of the plenum. • Designed for a closed duct system. Do not mount near a supply or a return air opening. •...
- Page 3 WARNING: Before installing or servicing a humidifi er, air fi lter, heat system, or this unit, etc., always turn all power OFF and have unit unplugged. Electrical shock can cause personal injury or death. Never expose eyes or skin to direct UVC light from any source. WARNING: To prevent water damage or electric shock, do not mount unit under a humidifi...
- Page 4 7. If desired, loosen the wing nut on the bottom of the Mounting Bracket Assembly (see Dimensional Drawing), and swivel/extend the lamp bracket to position the lamp in the desired position, and retighten the wing nut securely. CAUTION: MAKE CERTAIN THAT POWER HAS BEEN DISCONNECTED TO THE HVAC SYSTEM, AND THE 24 VAC TRANSFORMER POWER SOURCE, BEFORE PROCEEDING WITH THE INSTALLATION! 8.
- Page 5 16. Verify that all electrical connections are tight and that the lamp and bracket is secure. 17. Replace all access panels and other items that may have been removed during the installation, such as electrical box covers, etc. 18. Verify that the Safety Viewport is securely fastened in the hole drilled through the Safety Label. WARNING: BEFORE RESTORING POWER TO THE HVAC SYSTEM OR THE TRANSFORMER POWER SOURCE, VERIFY THAT NO OPENINGS EXIST THROUGH WHICH UVC RAYS FROM THE LAMP MAY ESCAPE.
- Page 6 8. Attach the lamp cable to the lamp, pull up any slack in the lamp cable between the cable clamp and the lamp, and tighten the cable clamp mounting screw. (See Figure 6) WARNING: ENSURE THAT THE CABLE CLAMP PREVENTS REMOVAL OF THE LAMP FROM THE BRACKET UNLESS THE LAMP CABLE IS DISCONNECTED FROM THE LAMP! This step is important to prevent the inadvertent removal of the lamp from the bracket before disconnecting the lamp cable from the lamp.
- Page 7 NOTE: UV lamps contain a small amount of mercury, like a typical fl uorescent lamp. Check with your local waste management authority for local disposal or recycling requirements. According to the EPA’s Universal Waste Rule, these types of lamps may be disposed of into household waste. 5.
- Page 8 This manual may be downloaded and printed from the Field Controls website (www.fi eldcontrols.com) This manual may be downloaded and printed from the Field Controls website (www.fi eldcontrols.com) WARRANTY WARRANTY For warranty information about this or any Field Controls product, visit: For warranty information about this or any Field Controls product, visit: www.fi...
