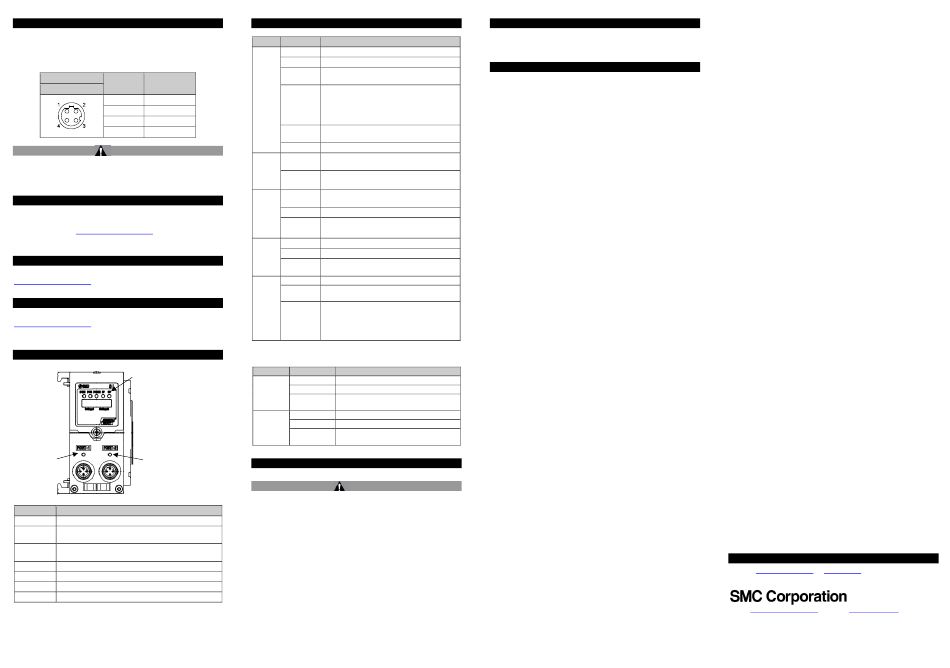

6 Wiring
6.1 Wiring connections
• Communication Connection
Select the appropriate cables to mate with the connectors on the SI unit.
The PROFINET connection port pin layout is as shown below.
Connector
Pin No. Signal name
PORT 1 / PORT 2
1 TX+
2 RX+
3 TX-
4 RX-
Warning
• Be sure to fit a seal cap (EX9-AWTS) on any unused connectors.
Proper use of the seal cap enables the enclosure to maintain IP67
specification.
7 Settings
7.1 Configuration
Download the latest GSDML file and refer to the operation manual on the
SMC website (URL: https://www.smcworld.com) for further information
on settings.
8 How to Order
Refer to the operation manual on the SMC website (URL:
https://www.smcworld.com) for How to order information.
9 Outline Dimensions (mm)
Refer to the operation manual on the SMC website (URL:
https://www.smcworld.com) for outline dimensions.
10 LED Display
ST(M) PWR PWR(V) SF BF
L/A PORT1
L/A PORT2
Display Content
ST(M) Displays the diagnostic status of the unit.
Displays the status of the power supply voltage for
PWR
control and input.
Displays the status of the power supply voltage for
PWR(V)
output.
SF Displays the system status.
BF Displays the communication status.
L/A PORT1 Displays the communication status of PORT 1.
L/A PORT2 Displays the communication status of PORT 2.
10 LED Display (continued)
LED LED colour Operation
OFF The power supply for control and input is OFF.
Green ON Normal operation.
Green
Diagnostic error in I/O unit detected.
flashing
Either of the following diagnostics errors
detected (with diagnostics enabled):
ST(M)
Red
•Valve ON/OFF counter exceeded the set
flashing
value.
•Valve is short circuited or disconnected.
Red/Green Communication error detected between SI unit
flashing and I/O unit.
Red ON SI unit has failed.
The power supply voltage for control and input
Green ON
is normal.
PWR
The power supply voltage for control and input
Red ON
is below 19 VDC (with diagnostics enabled).
The power supply voltage for output is OFF or
OFF
below 19 VDC (with diagnostics disabled).
Green ON The power supply voltage for output is normal.
PWR(V)
The power supply voltage for output is OFF or
Red ON
Below 19 VDC (with diagnostics enabled)
OFF Normal operation.
Red ON Diagnostics error detected.
SF
Green
Node flashing test
flashing
OFF PROFINET communication established.
Red The PLC configuration data and the EX600
flashing configuration are not consistent.
•Either of the following conditions:
BF
Device name setting to PLC and SI unit is not
Red ON consistent.
•Communication cable not connected.
•PLC or SI unit is faulty.
LED LED colour Content
OFF PORT 1: No Link, No Activity
L/A Green ON PORT 1: Link, No Activity
PORT 1
Green
PORT 1: Link, Activity
flashing
OFF PORT 2: No Link, No Activity
L/A Green ON PORT 2: Link, No Activity
PORT 2
Green
PORT 2: Link, Activity
flashing
11 Maintenance
11.1 General Maintenance
Caution
• Not following proper maintenance procedures could cause the product
to malfunction and lead to equipment damage.
• If handled improperly, compressed air can be dangerous.
• Maintenance of pneumatic systems should be performed only by
qualified personnel.
• Before performing maintenance, turn off the power supply and be sure
to cut off the supply pressure. Confirm that the air is released to
atmosphere.
• After installation and maintenance, apply operating pressure and
power to the equipment and perform appropriate functional and
leakage tests to make sure the equipment is installed correctly.
• If any electrical connections are disturbed during maintenance, ensure
they are reconnected correctly and safety checks are carried out as
required to ensure continued compliance with applicable national
regulations.
• Do not make any modification to the product.
• Do not disassemble the product, unless required by installation or
maintenance instructions
• Stop operation if the product does not function correctly.
12 Limitations of Use
12.1 Limited warranty and Disclaimer/Compliance Requirements
Refer to Handling Precautions for SMC Products.
13 Product disposal
This product should not be disposed of as municipal waste. Check your
local regulations and guidelines to dispose of this product correctly, in
order to reduce the impact on human health and the environment.
.
14 Contacts
Refer to www.smcworld.com or www.smc.eu for your local distributor /
importer.
URL : https://www.smcworld.com (Global) https://www.smc.eu (Europe)
SMC Corporation, 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021, Japan
Specifications are subject to change without prior notice from the manufacturer.
