4 TECHNICAL DATA

Power supply

4.3 V - 5.5 V via USB or RS-232; RS-232 requires 5 V external power supply; via connector CNB 3.3 V ± 5%

Current consumption

RF field on: 140 mA typically

Antennas

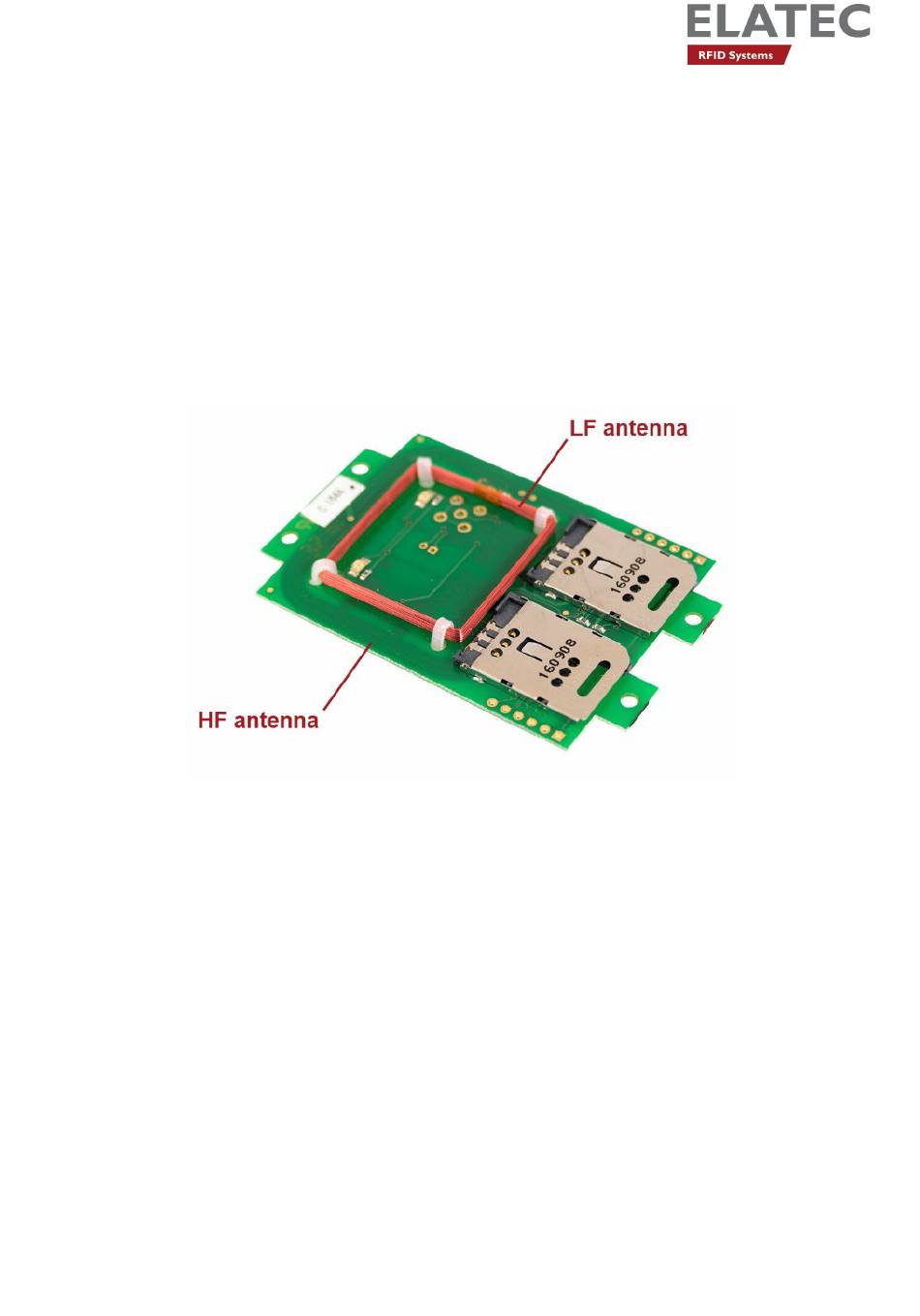

The reader module is equipped with the following antennas:

TWN4 MultiTech LEGIC M

HF antenna (13.56 MHz)

Dimensions: 44 x 46 mm / 1.73 x 1.81 inch

Number of turns: 3

LF antenna (125 kHz)

Dimensions: 29 x 32 mm / 1.14 x 1.26 inch

Number of turns: 164

For more information, refer to the related product data sheet or other technical documents.
