Product modifications

•

The product has been designed, manufactured and certified as defined by ELATEC.

Any product modifications not expressly approved by ELATEC, including – but not limited to – modifications of antennas

or other radio-related components, is not allowed and will void the warranty and all approvals granted to the product.

If you are unsure about any part of the safety information above, contact ELATEC support.

Any failure to observe the safety information above will be considered misuse and will void the warranty. ELATEC is not responsible

for any damage or injuries resulting from any misuse of the product.

4 TECHNICAL DATA

Power supply

3.2 V - 5.5 V DC

Current consumption

RF field on: 80 mA typically, RF field off: 10 mA, power down: < 2 µA

Antenna

The reader module is equipped with the following antenna:

HF antenna (13.56 MHz)

Dimensions: 27.5 x 25 mm / 1.08 x 0.98 inch

Number of turns: 4

For more information, refer to the related product data sheet or other technical documents.

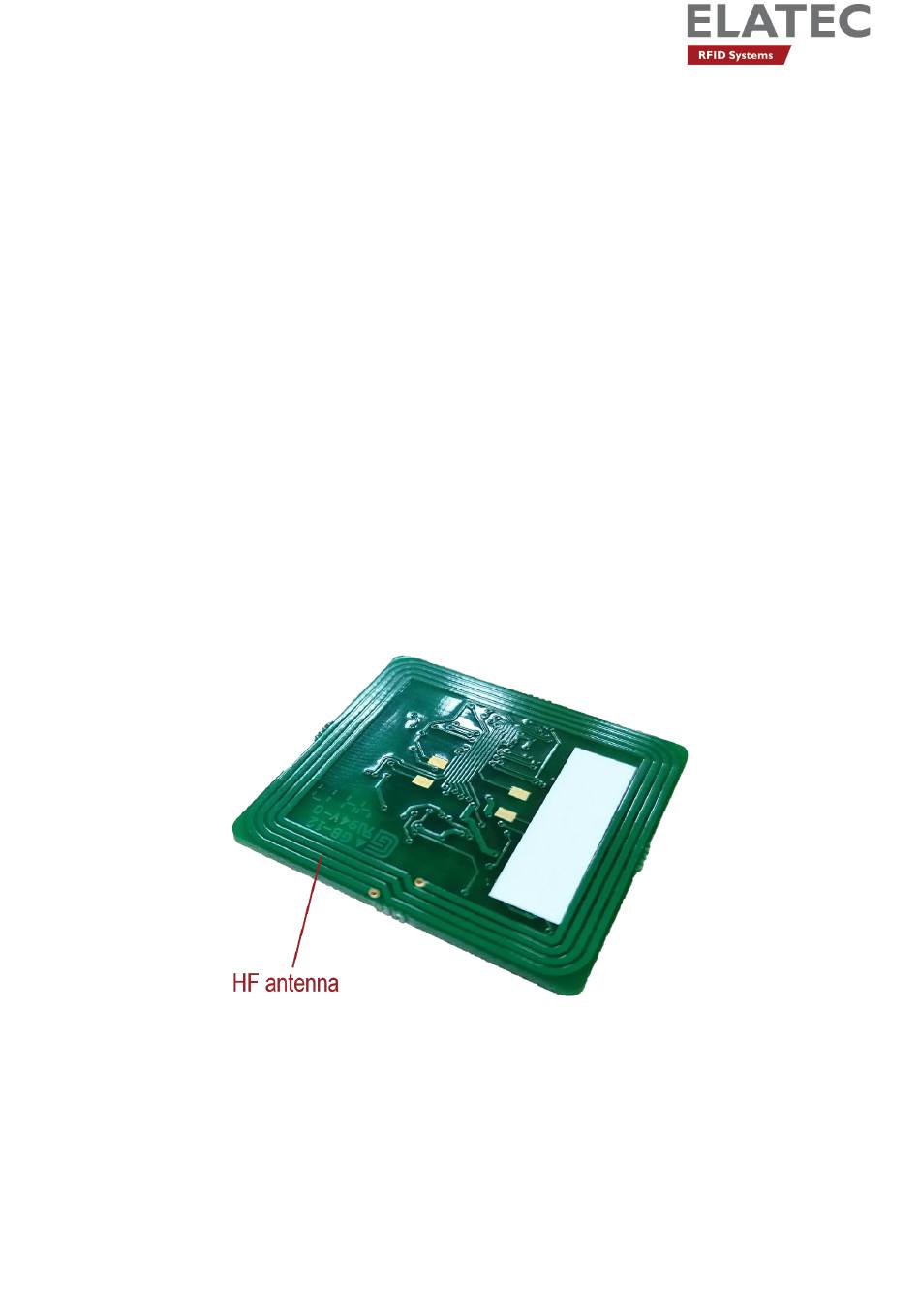

TWN3 Mini Reader MIFARE NFC – HF antenna (integrated)
