Elatec TWN3 MIFARE M User Manual
Hide thumbs
Also See for TWN3 MIFARE M:
- Technical manual (50 pages) ,
- Quick start manual (25 pages) ,
- Integration manual (8 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Elatec TWN3 MIFARE M
Summary of Contents for Elatec TWN3 MIFARE M
- Page 1 TWN3 MIFARE M USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION .................................. 3 ABOUT THIS MANUAL ..............................3 ELATEC SUPPORT ................................3 REVISION HISTORY ..............................3 INTENDED USE .................................. 3 SAFETY INFORMATION ..............................4 TECHNICAL DATA ................................5 MODE OF OPERATION ..............................6 OPERATING MODE ...............................6 POWER UP ..................................6 ENUMERATION ................................6 INITIALIZATION ................................6... -
Page 3: Introduction

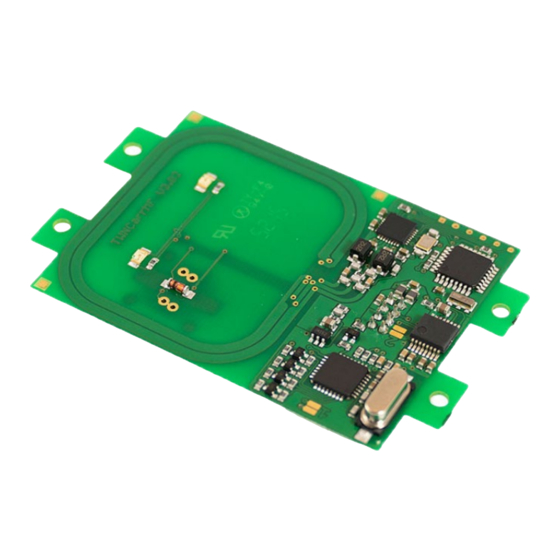

2 INTENDED USE The TWN3 MIFARE M RFID reader module is designed for easy integration into various applications. This device supports either USB or RS-232 communication just in dependence on the connection cable and is available as an OEM board (PCB) without housing for direct integration into embedded applications. -
Page 4: Safety Information
The user is liable for the use of spare parts or accessories other than the ones sold or recommended by ELATEC. ELATEC is not responsible for any damage or injuries resulting from the use of spare parts or accessories other than the ones sold or recommended by ELATEC. -
Page 5: Technical Data
If you are unsure about any part of the safety information above, contact ELATEC support. Any failure to observe the safety information above will be considered misuse and will void the warranty. ELATEC is not responsible for any damage or injuries resulting from any misuse of the product. -
Page 6: Mode Of Operation
Short-circuit current < 8 A Once a TWN3 MIFARE M reader module is connected to the host, it detects the type of communication cable (USB or RS-232), with which it is connected to the host. The result of this detection is signaled via the two LEDs: •... -
Page 7: Suspend Mode
Once the host is resuming to normal operation mode, this is also signaled via the USB bus. Therefore, the reader module will resume to normal operation too. © 2021 ELATEC GmbH – TWN3 MIFARE M user manual DocRev2 – 09/2021 Page 7 of 10... -
Page 8: Compliance Statements
6 COMPLIANCE STATEMENTS TWN3 MIFARE M is in compliance with the EU directives and regulations as listed in the respective declaration of conformity. RF EXPOSURE COMPLIANCE RF exposure statement (mobile and fixed devices) This device complies with the RF exposure requirements for mobile and fixed devices. However, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. -
Page 9: Appendix
• ELATEC quick start guide • Transponder Reader TWN3 Technical Manual • TWN3 MIFARE M data sheet • TWN3 MIFARE M integration manual © 2021 ELATEC GmbH – TWN3 MIFARE M user manual DocRev2 – 09/2021 Page 9 of 10... - Page 10 Elatec reserves the right to change any information or data in this document without prior notice. Elatec declines all responsibility for the use of this product with any other specification but the one mentioned above. Any additional requirement for a specific customer application has to be validated by the customer himself at his own responsibility. Where application information is given, it is only advisory and does not form part of the specification.
