TWN4 MultiTech 2 BLE
Technical Handbook
DocRev2, July 7, 2017
Elatec GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWN4 MultiTech 2 BLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elatec TWN4 MultiTech 2 BLE

Summary of Contents for Elatec TWN4 MultiTech 2 BLE

  • Page 1 TWN4 MultiTech 2 BLE Technical Handbook DocRev2, July 7, 2017 Elatec GmbH...

  • Page 2: Table Of Contents

    2. TWN4 MultiTech 2 BLE PCB ........

  • Page 3: Introduction

    1. Introduction 1. Introduction The TWN4 MultiTech 2 BLE Module is a configurable Reader/Writer of RFID transponders. This addition to the TWN4 family offers the Bluetooth Low Energy (BLE) interface. The Module has both the low (125kHz, 134.2kHz) and high (13.56MHz) frequency antennas, allowing the User access to a wide range of RFID standards.

  • Page 4: Twn4 Multitech 2 Ble Pcb

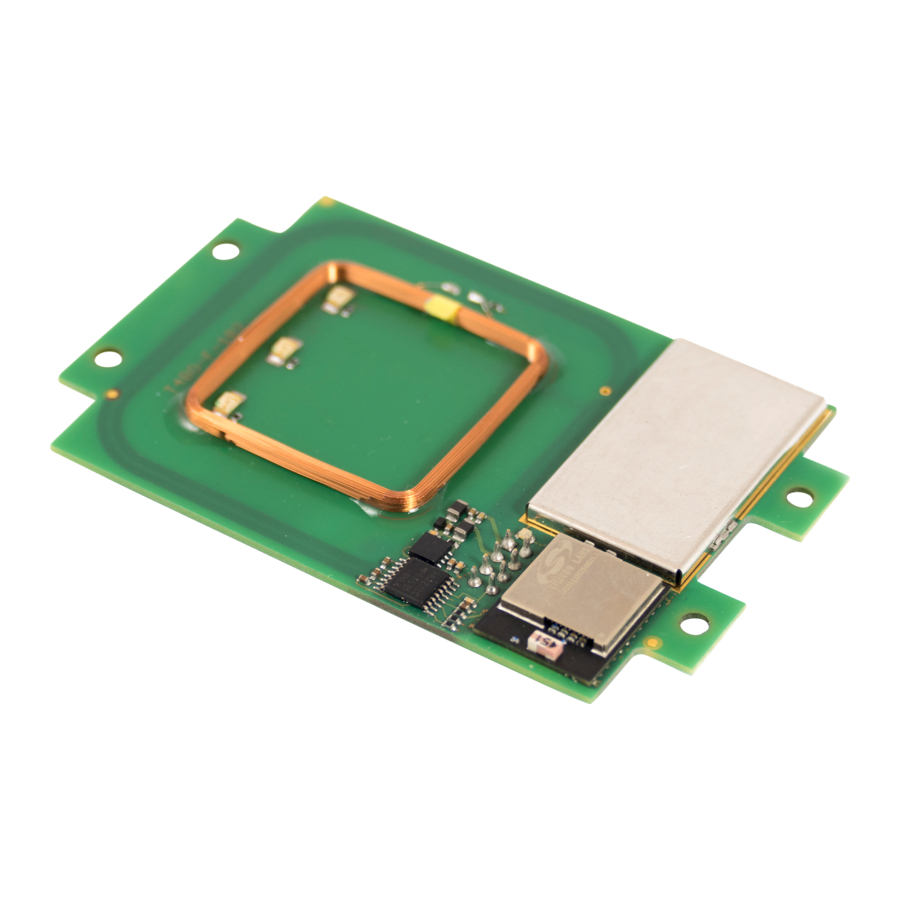

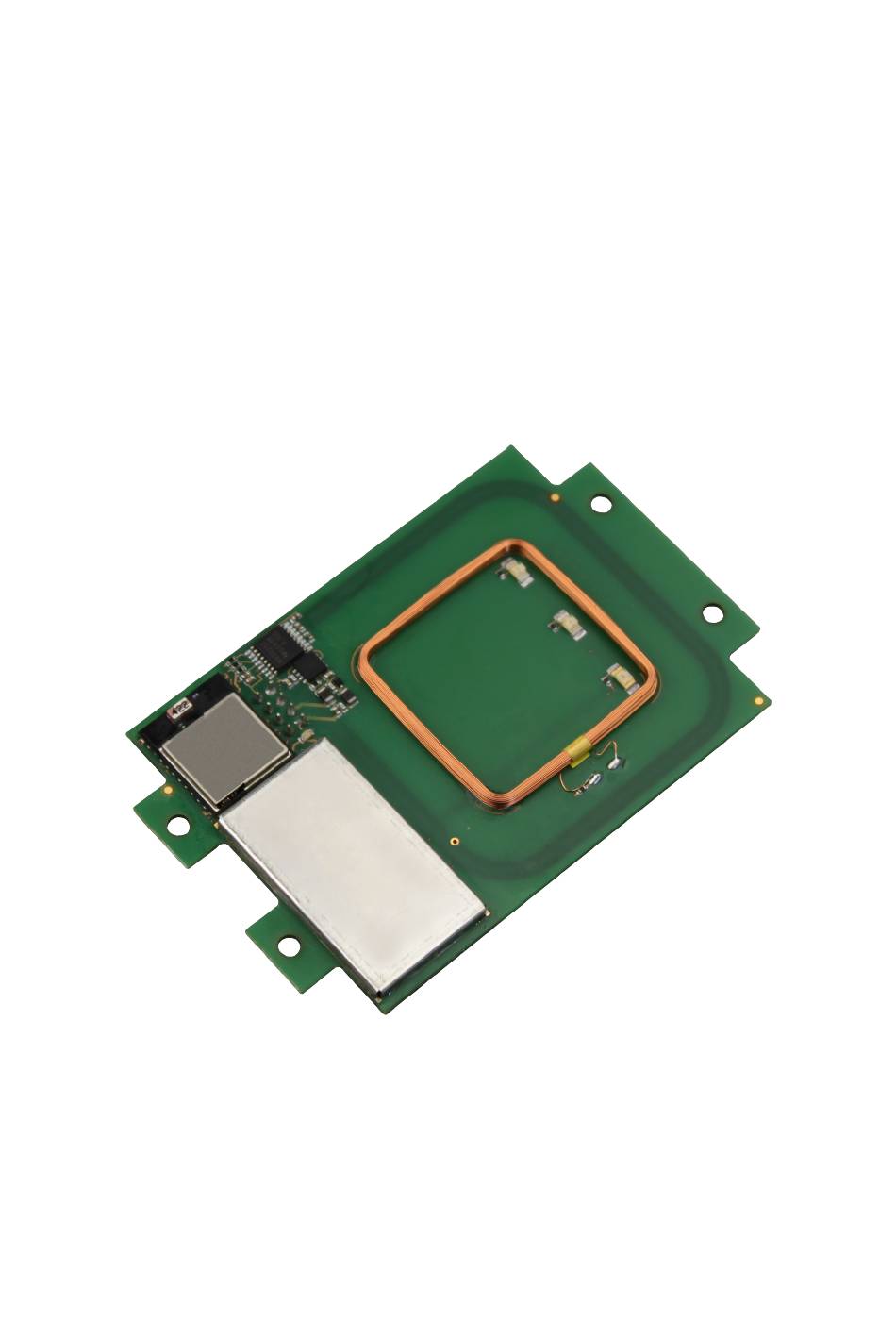

    2. TWN4 MultiTech 2 BLE PCB 2.1. Functional Overview The TWN4 MultiTech 2 BLE is a complete RFID Reader system that requires a 5V power source and con- nection to host to work. The majority of the circuitry responsible for processing the RFID card information and executing the module firmware is shielded as shown on Figure 2.1.

  • Page 5: Dimensions And Pinout

    2. TWN4 MultiTech 2 BLE PCB 2.2. Dimensions and Pinout Figure 2.2 provides the physical dimensions of the TWN4 MultiTech 2 BLE. Figure 2.2.: PCB Dimensions Page 5 of 14...
  • Page 6 The module provides a generic access port that allows the User to bypass the main DF11 connector and interact with the TWN4 MultiTech 2 BLE microcontroller directly. The port name is DRP2 and the polarity of its pins is shown on Figure 2.3. The pinout is provided in Table A.2.

  • Page 7: Bluetooth Low Energy (Ble) Feature

    (GATT). GATT defines two roles: Server and Client. A GATT Server stores attributes of the device and sends them to a Client upon request. The TWN4 MultiTech 2 BLE acts as a GATT server, receiving re- quests for information from the link partner (ex. cellphone) and transmitting relevant attributes back.

  • Page 8: Power States And Current Consumption Breakdown

    4. Power states and current consumption breakdown The TWN4 MultiTech 2 BLE supports 3 power states that can be used to reduce the current consumption of the reader when the application calls for it. In Normal state the reader can accommodate a request to search for a high-/low-frequency tag, perform a BLE action or interact with peripherals on short notice;...
  • Page 9 4. Power states and current consumption breakdown Host Connection UART-TTL Typical Consumption in Base System States Normal Idle Sleep Sleep LPCD Option 15,3 Stop 0,45 Stop LPCD Option Maximum Consumption by Function wrt. Normal Idle System State SearchTag-HF +140 SearchTag-LF RS232 BLE Active Packet Reception BLE Active Transmission (0 dBm output power)

  • Page 10: Disclaimer

    5. Disclaimer 5. Disclaimer Elatec reserves the right to change any information or data in this document without prior notice. The distribution and the update of this document is not controlled. Elatec declines all responsibility for the use of product with any other specifications but the ones mentioned above. Any additional requirement for a specific custom application has to be validated by the customer himself at his own responsibility.

  • Page 11: Bibliography

    6. Bibliography 6. Bibliography 1. Silicon Labs Website. Application Note "Designing for Bluetooth Low Energy Applications", taken from http://www.silabs.com on 24. January, 2017 Page 11 of 14...

  • Page 12: Appendix: Connector Pinout Reference

    A. Appendix: Connector Pinout Reference A. Appendix: Connector Pinout Reference Pin Name Function UGND USB Ground. Fed to main Ground through noise-reduction circuit. USB_D+ USB Data + UVCC USB VCC (5V). When using RS232, connect this to external 5V supply. USB_D- USB Data - V24_RXD...

  • Page 13: Appendix: Ble Technical Information

    B. Appendix: BLE Technical Information B. Appendix: BLE Technical Information UUID Attr. Name Type Description (hex) Handle 1800 General Access Profile Service Service 1 2a00 Device name Descriptor xgatt_1800_2A00, fix "TWN4 BLE" 2a01 Appearance Descriptor xgatt_1800_2A01, fix 0000 180a Device Information Service Service 2 2a29...
  • Page 14 B. Appendix: BLE Technical Information UUID User UUID (hex) Description Name UID1 "5a44c004-4112-4274-880e-cd9b3daedf8e" SPP Service UID2 "43c29edf-2f0a-4c43-aa22-489d169ec752" xgatt_spp_data UID3 "a897339f-adf0-4a2b-a2ef-4a57512e6eb6" xgatt_sp1_data UID4 "71f1ae4d-e1d1-438c-b05d-2c2c16abeaa7" xgatt_sp2_data Table B.3.: Definition of Custom UUIDs Page 14 of 14...
