Kraus Kohra FUS-14003 Installation Manual

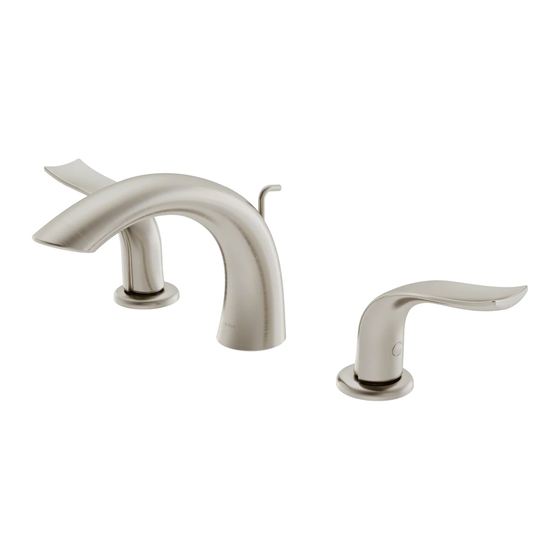

Two handle 8-inch widespread basin bathroom faucet
Hide thumbs Also See for Kohra FUS-14003:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION GUIDE
Kohra™
Two Handle 8-Inch
Widespread Basin Bathroom
Faucet
FUS-14003
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2021 Kraus USA Plumbing LLC I REV. NOV 17, 2021

Advertisement

Table of Contents
loading

Related Manuals for Kraus Kohra FUS-14003

Summary of Contents for Kraus Kohra FUS-14003

  • Page 1 INSTALLATION GUIDE Kohra™ Two Handle 8-Inch Widespread Basin Bathroom Faucet FUS-14003 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2021 Kraus USA Plumbing LLC I REV. NOV 17, 2021...
  • Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...

  • Page 3: Prior To Installation

    Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation.
  • Page 4 Diagram and Parts List A. Hot Handle Valve B. Spout C. Aerator D. Aerator Wrench E. Cold Handle Valve F. Spout Mounting Hardware F1. Rubber & Metal Washer F2. Mounting Nut G. Three Way Connector H. Hot & Cold Handle Mounting Hardware H1.
  • Page 5 Diagram and Parts List Waste Stopper b. Drain Flange c. Rubber Washer d. Concave Washer e. Metal Washer Mounting Nut g. Tail Pipe h. Top Hat Washer Drain Off Pole Washer b h i j k k. Retaining Nut Clip m.
  • Page 6 Faucet Dimension 7" (177.1mm) 14 7/8" (379mm) 5 3/8" (136.6mm) MAX 1 7/8" (47.1mm) 1/2-14NPSM-2A Ø 2 1/8" (54mm) 1 1/4-18UNEF-2A 5 5/8" (141.6mm) 1 1/4" Ø (32mm) Installer Tip:...
  • Page 7 Remove mounting hardware Step 1: Remove three way connector (G) and mounting hardware (F) from spout (B). Remove mounting hardware (H) from hot and cold valves (A&E). Installing the faucet assembly Step 2: Insert spout (B) through hole in sink or countertop. Secure spout with mounting nut (F2) with an adjustable wrench.

  • Page 8: Installing Handles

    Installing handles Step 3: Insert hot & cold handle valves (A&E) through hole in sink or countertop. Attach hot & cold mounting hardware (H). Secure with adjustable wrench and Phillips head screwdriver. Attach connector Step 4: Attach three way connector (G) to spout (B).

  • Page 9: Install Drain

    Connect waterlines Step 5: Attach waterlines (not included) to valves (A&E) and angle stops. Tighten until snug. Turn on angle stops and check for leaks. (DO NOT TURN FAUCET Installer Tip: Recommended waterlines: 3/8 in. OD x ½ in IPS Step 6: Install drain Remove waste stopper (a) and...
  • Page 10 Install drain - continued Step 6: Insert drain flange (b) through drain hole with rubber washer (c) attached. From underneath, place concave (d) and metal (e) washer on drain flange. Secure with mounting nut (f). Thread tailpipe (g) onto drain (b) and hand tighten.
  • Page 11 Step 6. Install drain - continued Attach drain off pole (i) to extender rod (m) with clip (l). Loosen thumb screw (n) on extender rod (m). Push down on lift rod (o) until stopper is in open position. Retighten thumb screw (n).

  • Page 12: Replacement Parts

    Replacement Parts Finish Part No. Replacement Part 1. Handle SFS* KP27000 2. Set Screw KP27001 3. Cover Button KP27002 KP27003 4. Screw SFS* 5. Handle Cover KP27004 6. Lock Nut KP27005 7. Cartridge H KP27006 8. Cartridge C KP27007 9. Spacer KP27008 10.

  • Page 13: Troubleshooting

    Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Hot or cold cartridge (7 or 8) may be Remove cover button (3). Loosen set loose.
  • Page 14 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
  • Page 15 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
  • Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
