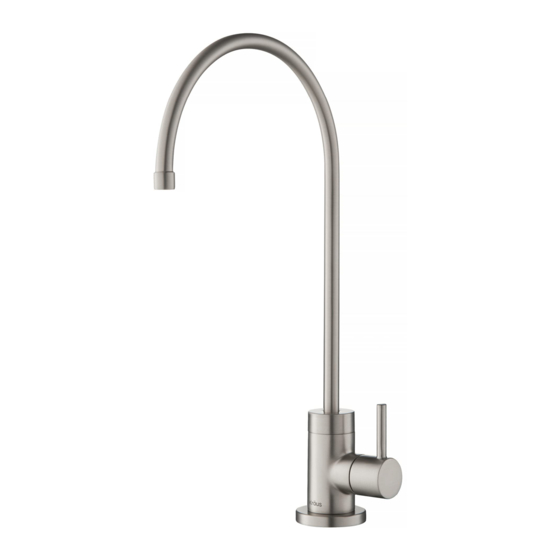

- Page 1 INSTALLATION GUIDE Purita™ Single Handle Water Filtration Faucet FF-100 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2019 Kraus USA Inc. I REV. FEB 17, 2020...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Turn off the hot and cold water lines at the angle stops and turn on the old faucet to release any built-up pressure •... - Page 4 Diagram and Parts List A. Faucet Assembly B. Flange C. Rubber Washer D. Metal Washer E. Mounting Nut F. Connector G. Hex Wrench...
- Page 5 Faucet Dimension 7 1/8” 2 3/4“ [181.5mm] [69.5mm] 6” [153.0mm] Ø1 3/4" [Ø45.0mm] 7/16-24UNS-2A Installer Tip:...
-
Page 6: Step 1: Preparing For Installation
Step 1: Preparing for installation Remove the rubber washer (C), metal washer (D), and mounting nut (E) from the end of the stud. Step 2: Installing the faucet assembly Place the faucet assembly (A) through the selected hole in the sink or countertop. On the underside of the sink or countertop, slide the rubber washer (C) and metal washer (D) onto the stud. - Page 7 Step 3: Connecting the quick connect adaptor and water line Thread the quick connect adaptor (F) onto the end of the faucet assembly (A) stud, and tighten securely using a wrench. Connect the 3/8 in. water line from the filtration system by pushing the line into the connector (F).
-
Page 8: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. O-ring KP27168 CH, SFS, MB, BG, 2. Spout Nut KP27169 BB, SFACB, SFSB* 3. Locking Ring KP27170 4. O-ring KP27171 5. Cartridge KP27172 CH, SFS, MB, BG, 6. Handle KP27173 BB, SFACB, SFSB* 7. -
Page 9: Troubleshooting
Trouble - Shooting Hexagon Nut If you have followed the instructions carefully and your faucet still does not work properly, take the following coorective steps: P R O B L E M C A U S E A C T I O N Leakage under the Cartridge (5) has come Remove index (7) and loosen... - Page 10 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 11 Rico shipping charges may apply). International shipping fees are not included. Commercial Warranty Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use. All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
- Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
