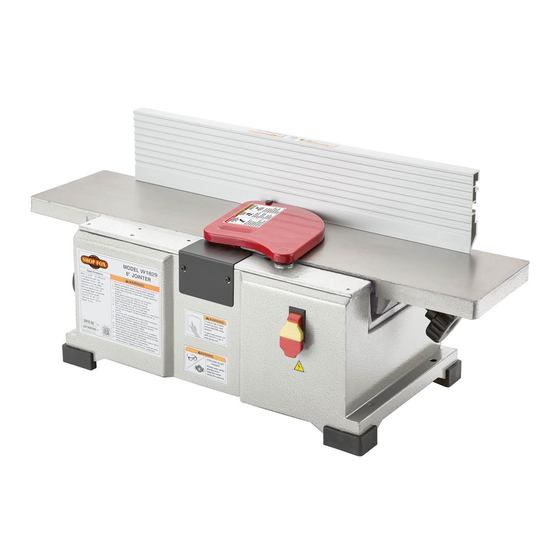

6" jointer
Hide thumbs Also See for W1829:

Advertisement

Quick Links

All manuals and user guides at all-guides.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the W1829 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shop fox W1829

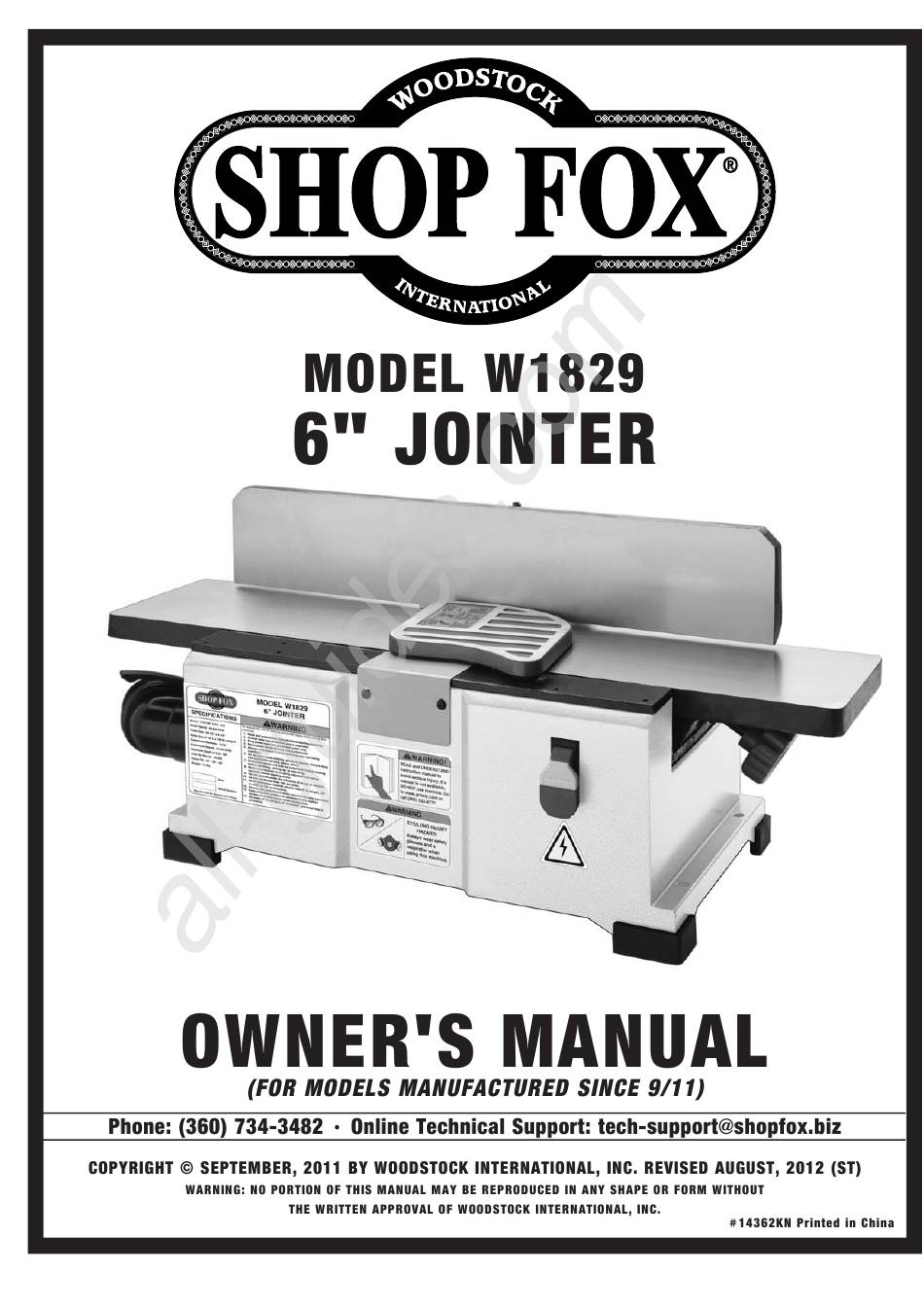

  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 All manuals and user guides at all-guides.com...
  • Page 3 All manuals and user guides at all-guides.com Woodstock Technical Support ....2 About Your Machine ......2 General .......... 27 Machine Specifications ......4 Cleaning ......... 27 Controls & Features ......5 Table & Base ........27 V-Belts ........... 27 Standard Machinery Safety Instructions ..
  • Page 4 If you have comments about this manual, please contact us at: The W1829 6" Jointer is a benchtop machine; its compact size makes for convenient placement in any shop. It mounts and dismounts quickly to a workbench making it portable when necessary.
  • Page 5 All manuals and user guides at all-guides.com 02'(/ : 6+23 )2;  %(1&+723 -2,17(5 Š 0RWRUV 0DLQ 7\SH 8QLYHUVDO +RUVHSRZHU  +3 9ROWDJH 9 3KDVH 6LQJOH3KDVH $PSV $ 6SHHG  530 &\FOH  +] 1XPEHU RI 6SHHGV  3RZHU 7UDQVIHU  %HOW 'ULYH %HDULQJV 6KLHOGHG DQG /XEULFDWHG 0DLQ 6SHFLILFDWLRQV &XWWLQJ &DSDFLWLHV...
  • Page 6 All manuals and user guides at all-guides.com 7DEOH ,QIRUPDWLRQ 7DEOH /HQJWK  LQ 7DEOH :LGWK  LQ 7DEOH 7KLFNQHVV  LQ )ORRU WR 7DEOH +HLJKW  LQ 7DEOH $GMXVWPHQW 7\SH .QRE 7DEOH 0RYHPHQW 7\SH 6ZLQJ &RQVWUXFWLRQ %DVH 3UHIRUPHG 6WHHO %RG\ $VVHPEO\ 3UHIRUPHG 6WHHO )HQFH $VVHPEO\ &DVW ,URQ *XDUG $OXPLQXP 7DEOH 3UHFLVLRQ*URXQG &DVW ,URQ...
  • Page 7 All manuals and user guides at all-guides.com Fence Cutterhead Guard Outfeed Table Infeed Table Dust Collection Depth of Cut Chute Adjusting Knob ON/OFF Switch . W1829 identification—front view. Fence Tilting Handle Fence Bracket Assembly Fence Tilting Handle Figure 2. W1829 identification—rear view.
  • Page 8 All manuals and user guides at all-guides.com...
  • Page 9 All manuals and user guides at all-guides.com...
  • Page 10 All manuals and user guides at all-guides.com "Kickback" is when the workpiece is thrown off the jointer table by the force of the cutterhead. Always use push blocks and safety glasses to reduce the likelihood of injury from “kick- back.” If you do not understand what kickback is, or how it occurs, operate this machine.
  • Page 11 All manuals and user guides at all-guides.com This machine must be connected to the correct size and type of power supply circuit, or fire or electrical damage may occur. Read through this section to determine if an adequate power supply circuit is available. If a correct circuit is not available, a qualified electrician MUST install one before you can connect the machine to power.
  • Page 12 All manuals and user guides at all-guides.com GROUNDED 110V 5-15 RECEPTACLE This machine MUST be grounded. In the event of certain types of malfunctions or breakdowns, grounding provides Grounding Prong a path of least resistance for electric current to travel—in order to reduce the risk of electric shock.
  • Page 13 If you notice the machine has been damaged during shipping, please contact your authorized Shop Fox dealer immediately. The following is a description of the main components shipped with the Model W1829. Lay the components out to inventory them. Note: . Jointer Bed Assembly ........1 .
  • Page 14 All manuals and user guides at all-guides.com The tables and other unpainted parts of your Refer to the Machine Specifications, on Page 3, for the weight jointer are coated with a waxy grease that protects them from corrosion during shipment. and footprint specifications of your Clean this grease off with a solvent cleaner or machine.
  • Page 15 All manuals and user guides at all-guides.com The strongest bench mounting option is a "Through Mount" where holes are drilled all the way through the workbench, and hex bolts, washers, and hex nuts are used to secure the machine to the workbench. Another option for mounting is a "Direct Mount"...
  • Page 16 All manuals and user guides at all-guides.com Cap Screws DISCONNECT JOINTER FROM POWER! Use two of the included M8-1.25 x 20 cap screws and lock washers 8mm to attach the fence support to the jointer bed, as shown in Fence Support Attaching the fence support.
  • Page 17 All manuals and user guides at all-guides.com Slide the fence bracket assembly over and onto the dovetail of the support and locking plate, as shown Fence Bracket Assembly Fence Support Dovetail . Sliding the fence bracket onto the fence support dovetails. Slide the fence forward until it contacts the Fence Jointer Tables...
  • Page 18 The W1829 has a built-in dust collection fan and chip exhaust. It also includes a 2.5" dust port, clamp, and dust collection bag. The W1829 can also be hooked up to a pre-existing dust collection system. Do not confuse this CFM recommendation with the rating of the dust collector.
  • Page 19 All manuals and user guides at all-guides.com After you have completed all previous setup instructions and circuit requirements, the machine is ready to be connected to the power supply. To avoid unexpected startups or property damage, use the following steps whenever connecting or disconnecting the machine.
  • Page 20 All manuals and user guides at all-guides.com Once the assembly is complete, test run your machine to make sure it runs properly and is ready for regular operation. The test run consists of verifying the following: 1) The motor powers up and runs correctly, and 2) the safety disabling mechanism on the switch works correctly.
  • Page 21 This prevents unsupervised persons in your shop (especially children) from starting the jointer. . W1829 basic controls in front. Changes the height of the infeed table to control the depth of cut.
  • Page 22 All manuals and user guides at all-guides.com • Injury to the operator or damage to the workpiece can occur if the knots become dislodged during the cutting operation. • Cutting against the grain increases the likelihood of stock kickback, as well as tear-out on the workpiece.
  • Page 23 All manuals and user guides at all-guides.com r: The concave face of the workpiece is surface planed flat with the jointer (see : The opposite Surface plane on the jointer. face of the workpiece is surface planed flat with a thickness planer (see : The concave edge of the workpiece is jointed flat with the jointer (see...
  • Page 24 All manuals and user guides at all-guides.com The purpose of surface planing on the jointer is to make one flat face on a piece of stock (see – ) to prepare it for surface planing on a thickness planer. Typical surface planing operation.
  • Page 25 All manuals and user guides at all-guides.com The purpose of edge jointing is to produce a finished, flat-edged surface that is suitable for joinery or finishing (see Figure ). It is also a necessary step when squaring rough or warped stock. Read and understand , on Inspect your stock for dangerous conditions as...
  • Page 26 The purpose of bevel cutting is to cut a specific angle into the edge of a workpiece (see The Model W1829 has preset fence stops at 45˚ inward, 90˚, and 45˚ outward (135˚). If your situation requires a different angle, the preset fence stops can be easily adjusted for your needs.
  • Page 27 It is built to accommodate a variety of bench-top machines including the W1829 Jointer. ® Adjust the W1829 to within ± .001". The magnetic ® base keeps the Rotacator firmly in position while the indicator indexes at 0°, 90°, 180°, and 270°...
  • Page 28 98.6% filtration. Ideal for the dusty shop and work environments. One size fits all. These adapters will allow you to connect the 2 ⁄ " dust W1041 W1044 chute of the W1829 to an existing dust collection system with standard 3" or 4" fittings. -26-...
  • Page 29 All manuals and user guides at all-guides.com Regular periodic maintenance on your machine will ensure its optimum performance. Make a habit of inspecting your machine each time you use it. Loose mounting bolts. Worn switch. Worn or damaged cords and plugs. Damaged V-belt.
  • Page 30 All manuals and user guides at all-guides.com This section covers the most common service adjustments or procedures that may need to be made during the life of your machine. If you require additional machine service not included in this section, please contact Woodstock International Technical Support at (360) 734-3482 or send e-mail to: This section covers the most common problems and corrections with this type of machine.
  • Page 31 All manuals and user guides at all-guides.com Machine has vibration or 1. Motor or component is loose. 1. Inspect/replace stripped or damaged bolts/nuts, noisy operation and re-tighten with thread locking fluid. 2. Knife blades, clamp or jack screws 2. Resharpen/replace knives as required; set knife are at fault.
  • Page 32 All manuals and user guides at all-guides.com The knives MUST be level with the outfeed table when they are at top dead center (their highest point during rotation) or the workpiece cannot be safely fed across the jointer. Hex Wrench 4mm ..........1 Hex Wrench 5mm ..........1 1.
  • Page 33 All manuals and user guides at all-guides.com Move the straightedge to position A, as shown in Figure 39. Turn the jack screw nearest the fence counterclockwise until the end of the knife touches the straightedge. Move the straightedge to position B, as shown in Figure 39.
  • Page 34 All manuals and user guides at all-guides.com Sharp cutterhead knives provide the best cutting results. Under normal operation these knives will become dull and need to be sharpened or replaced. Refer to Troubleshooting (see Page 28) to determine if the knives may be dull.
  • Page 35 All manuals and user guides at all-guides.com This section provides instructions for setting the fence angle stops precisely at 90°, 45° inward, or 45° outward. Note: Flathead Screwdriver ..........1 Wrench 8mm .............1 Wrench 10mm ...........1 DISCONNECT THE JOINTER FROM POWER! Position the fence over the bed and tighten the sliding handle, loosen the fence tilting handle.
  • Page 36 All manuals and user guides at all-guides.com DISCONNECT JOINTER FROM POWER! With the fence positioned over the bed and the sliding handle locked, loosen the fence tilting handle and release the limit tab. Tilt the fence towards the table as far as it will go, then tighten the fence tilting handle.
  • Page 37 All manuals and user guides at all-guides.com DISCONNECT JOINTER FROM POWER! Loosen the fence tilting handle, remove the limit block and set it aside. Tilt the fence backward (away from the table) until it stops. Note: Use a square to check the angle of the fence, as shown in —...
  • Page 38 All manuals and user guides at all-guides.com The Model W1829 uses two belts to drive the cutterhead and the dust collection impeller. When these belts are not tensioned correctly, misaligned, or damaged, your jointer will not function properly. The part number for the replacement drive belt is X1829070;...
  • Page 39 All manuals and user guides at all-guides.com This jointer has a universal motor that uses carbon brushes, which are considered wear-items. Refer to the troubleshooting guide to determine if the motor brushes must be replaced. You can order a new brush kit (two brush assemblies) by calling customer service and ordering part X1829024-1.
  • Page 40 All manuals and user guides at all-guides.com These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Study this diagram carefully. If you notice differences between your machine and these wiring diagrams, call Woodstock International Technical Support at (360) 734-3482.
  • Page 41 All manuals and user guides at all-guides.com Read Page 38 Before Wiring -39-...
  • Page 42 All manuals and user guides at all-guides.com 23-1 44-1 45 53 52 29-1 24-2 24-1 24-3 24-4 58 115 -40-...
  • Page 43 All manuals and user guides at all-guides.com PART # DESCRIPTION PART # DESCRIPTION X1829001 TABLE X1829049 ALIGNMENT PIN X1829002 FENCE X1829050 PUSH BLOCKS X1829002A FENCE ASSEMBLY X1829051 PADDLE SWITCH X1829003 FENCE PLATE XP6000ZZ BALL BEARING 6000ZZ X1829004 FENCE TILTING HANDLE XPSS01M SET SCREW M6-1 X 10 XPW01M...
  • Page 44 NOTE: Align this label with cutterhead throat. PART # DESCRIPTION PART # DESCRIPTION XLABEL-08A READ MANUAL LABEL X1829120 MACHINE ID LABEL X1829117 CUTTERHEAD GUARD LABEL X1829121 CUTTERHEAD EXPOSURE LABEL XLABEL-06C EYE/LUNG HAZARD LABEL XPPAINT-1 SHOP FOX WHITE(M1006) XLABEL-04 ELECTRICITY LABEL -42-...
  • Page 45 All manuals and user guides at all-guides.com -43-...
  • Page 46 All manuals and user guides at all-guides.com FOLD ALONG DOTTED LINE Place Stamp Here FOLD ALONG DOTTED LINE TAPE ALONG EDGES--PLEASE DO NOT STAPLE -44-...
  • Page 47 All manuals and user guides at all-guides.com...
  • Page 48 All manuals and user guides at all-guides.com...
