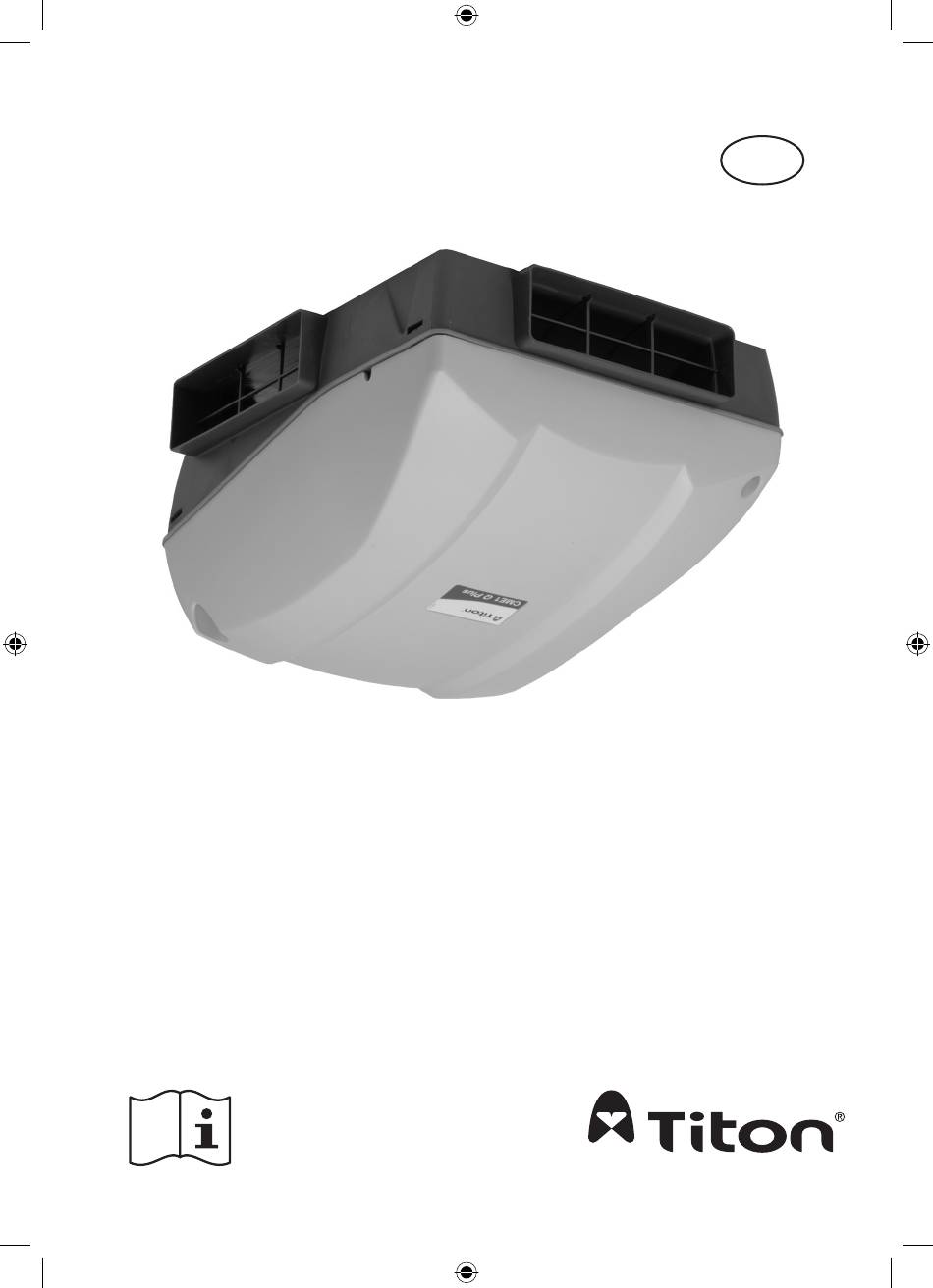

- Page 1 CME2 Q Plus LS with Live Switching & Humidity Sensor TP304HA TP305HA CME2.1 Q Plus LS with Live Switching & Humidity Sensor TP312HALS TP313HALS Extract Ventilation Unit Product Manual ventilation systems...
-
Page 2: Important Information
Warnings, Safety information and Guidance Important Information Important: read these instructions fully before the installation of this appliance 1. Installation of the appliance and accessories must be carried out by a qualified and suitable competent person and be car- ried out in clean, dry conditions where dust and humidity are at minimal levels. - Page 3 8. The appliance is not suitable for installation to the exterior of the dwelling. 9. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 4: Explanation Of Symbols On The Appliance
Explanation of symbols on the appliance. Read instruction Manual. Risk of Electric Shock. General hazard safety alert. Wait until all machine components have completely stopped before touching them. Disconnect the mains supply before removing this cover. & Before obtaining access to terminals or removing this cover, all supply circuits must be disconnected. -
Page 5: Table Of Contents
Contents Warnings, Safety information and Guidance Maintenance Important Information � � � � � � � � � � � � � � � � � � � � � � � � 2 Routine maintenance � � � � � � � � � � � � � � � � � � � � � � � �23 Explanation of symbols on the appliance�... -
Page 6: Product Overview
Product Overview Dimensions This diagram details the overall size of the unit and the additional space required around the unit to allow for commissioning and future servicing and maintenance. Service Void All dimensions in mm... -
Page 7: Component Identification
Component Identification Cover / Scroll / Inlet Ring assembly Base Cover Scroll Inlet ring Unit components... -
Page 8: Packaging Contents
Packaging Contents Inspect the unit when taking delivery. Check the unit for damage and that all accessories have been supplied. The box contains: CME2 or 2.1 Q Plus LS Unit x 1. ƒ Port covers x 3. ƒ This Product manual x 1. ƒ... -
Page 9: Product Features
The CME2 & 2.1 Q Plus LS are controllable by various mains switches. The following describes the controls and features of the unit and how they are controlled. Ensure all controls are adequately labelled, indicating their function clearly. Model CME2 Q Plus LS or CME2 Q Plus LS Part Number TP304HA TP305HA... -
Page 10: Setback Speed
Setback Speed Setback Speed is normally a reduced ventilation rate. Setback Speed is configured using a stepless independent fan control potentiometer. The Setback Speed can be enabled by connection of a latching mains one-way switch, or combined with the Boost Speed with the 3 position switch TP 508. Continuous Speed Continuous Speed is the normal running speed of the unit. -
Page 11: Installation
Installation Fixing The unit must be securely fixed to a smooth flat surface, any orientation is possible. Mark the four fixing hole centres using the Base as a template. Drill holes for fixings, use 4mm Pan Head screws. Always use a fixing type and length suited to the substrate type. - Page 12 Unscrew the 2 retaining screws that hold on the Cover and remove, retain the screws. Fit two screws from the Screw Pack through the preformed holes at the front of the Inlet Ring to securely fix the Inlet Ring/Scroll assembly to the Base.
-
Page 13: Ducting Connections
Ducting Connections Titon recommend that: 204 x 60mm ducting is used for the connection of the Extract Port to Outside. 204 x 60mm or 110 x 54mm ducting is used for connection to the other ports. A minimum distance of 200mm between the unit and any sharp bends in duct work. - Page 14 Port to Outside must be to the external air outside the building envelope. 13. All ducting joints including those to the CME2 Q Plus LS unit’s Duct Ports and Convertible Port Covers must be permanently connected and sealed. 14. Do not distort ducting, Convertible Port Cover or Duct Ports.
-
Page 15: How To Convert Port Cover
How to Convert Port Cover To enable fitment of 110 x 54mm ducting, modify the Convertible Port Cover by tearing out the ‘rip strip’ . When using the convertible port cover ensure the tear out section is completely removed. -
Page 16: Wiring Connections Access
Wiring Connections Access Access to the connections for mains supply, boost and setback switching is via removing the Cover and the PCB cover. All cables must be secured with clamps provided. PCB cover must be securely fitted before commencement of commissioning. -
Page 17: Wiring Diagrams
Wiring Diagrams All Pole Isolator 3A Fuse Supply Wiring Diagram 220-240V~ 50-60Hz ref EE 184 All Pole Isolator Boost Setback 3A Fuse Boost and Setback switching ref EE 186... -
Page 18: Wiring Diagrams
Wiring Diagrams Switch P TP508 3 P otary Switch U2 U3 1 - Setback Speed 2 - Con 3 - Boost Speed All Pole Isolator 3A Fuse Three position Rotary Switch TP 508 switching and connection ref EE 185... -
Page 19: Commissioning
Commissioning CME2 & 2.1Q Plus LS The fan speeds of the Titon CME2 Q Plus LS or CME2.1 LSwill require adjustment to ensure that the flow rates achieved provide adequate ventilation. The unit has 3 standard fan speed settings, Continuous Speed, Boost Speed and Setback Speed. -
Page 20: Commissioning
Commissioning Place the link into the Program Position, i.e. fitted over both pins. The unit will automatically switch between Setback Speed, Continuous Speed and Boost Speed when adjusting the respective Program / Run potentiometer. Rotate the Speed adjustment Header Link potentiometer to achieve required Header Link in Program position air flow for each speed. -
Page 21: Boost Overrun
Program / Run Header Link Boost Overrun Boost Overrun is variable between 0 and 30 minutes. Rotate potentiometer to change overrun time. Boost Overrun adjustment can be done at any time without the need to move the Program / Run Header Link. Boost Overrun Pot positions Humidity Sensor The Humidity Sensor’s set point is... -
Page 22: Controller Reset
Controller Reset Following a controller reset the ventilation system will need to be fully re- commissioned. The unit will need to be powered up during the reset procedure. Place the Program / Run Header Link in the Run Position Rotate the Setback, Continuous and Boost Speed adjustment potentiometers fully clockwise. -
Page 23: Maintenance
The unit must be periodically cleaned internally. The maximum time between cleaning will depend on the local environment. Titon recommend the unit be cleaned every 3 – 4 years at a minimum. -
Page 24: Access To The Interior For Cleaning
Access to the Interior for Cleaning To gain access to the interior of the unit for cleaning – Unscrew the 3 retaining screws that hold on the Cover and remove Remove the 4 Scroll retaining screws. Using a flat bladed screw driver, un-clip Scroll from Inlet Ring by disengaging the 3 retaining clips. - Page 25 Remove the 3 retaining screws Using a flat bladed screwdriver, un-clip the Inlet Ring from Base by disengaging the 4 retaining clips. Carefully remove dust from the unit and fan blades using a vacuum cleaner. Wipe with damp cloth and mild detergent.
-
Page 26: Service Record
Service Record Serviced by Company Name Date Notes... -
Page 27: Technical
Static efficiency of fan in accordance with (EU) No 327/2011 32% - < 125W motor Declared maximum internal leakage rate (%) Energy performance of the filters Casing sound power level (LWA) 54dB(A) Filter Warning (RVU) Internet address (for dissassembly instructions) www.titon.co.uk... - Page 28 If any doubt contact your local authorities about waste disposal rules. MARK E TING DIVISION 894 The Crescent, Colchester Business Park, Colchester CO4 9YQ Tel: +44 (0) 1206 713800 Fax: +44 (0) 1206 543126 Email: ventsales@titon.co.uk Web: www.titon.com ©2022 Titon DO 5518 Issue 03...
