- Page 1 Product Manual CME3 Q Plus A TP 332A CME3.1 Q Plus A TP 342A Extract Ventilation Unit with Volt Free Boost Switching CME3 Q Plus HA TP 332HA CME3.1 Q Plus HA TP 342HA Extract Ventilation Unit with Humidity & Volt Free Boost Switching...
-
Page 2: Warnings, Safety Information And Guidance
Warnings, Safety information and Guidance Important Information Read these instructions fully before the installation of this appliance 1. Installation of the appliance and accessories must be carried out by a qualified and suitable competent person and be carried out in clean, dry conditions where dust and humidity are at minimal levels. -
Page 3: Explanation Of Symbols On The Appliance
Explanation of symbols on the appliance Symbol Definition Read instruction Manual. Risk of Electric Shock. General hazard safety alert. Wait until all machine components have completely stopped before touching them. Disconnect the mains supply before removing this cover. Disconnect the mains supply before removing this cover. -
Page 4: Table Of Contents
Contents Warnings, Safety information and Guidance Technical Important Information � � � � � � � � � � � � � � � � � � � � �2 Product Fiche � � � � � � � � � � � � � � � � � � � � � � � � � � �26 Explanation of symbols on the appliance�... -
Page 5: Product Overview

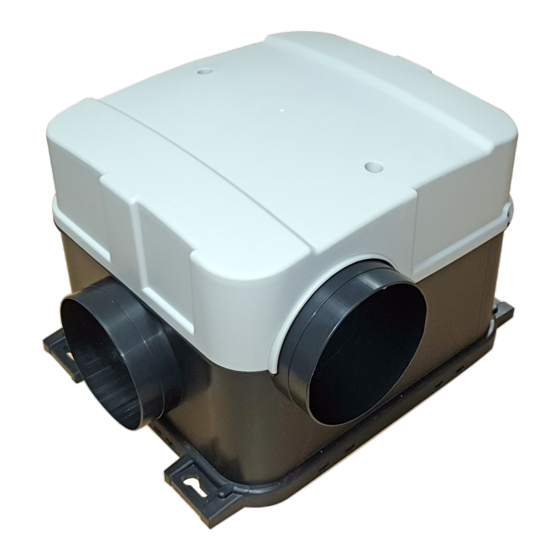

Product Overview This manual is for the range of Titon CME3 & 3.1 Q Plus Extract ventilation units. All CME3 & 3.1 Q Plus units are designed for continuous extract ventilation of multiple rooms, for example bathrooms, kitchens, utility areas and toilets. The units use a highly efficient backward curved Centrifugal impeller coupled to a high efficiency EC motor. -
Page 6: Dimensions
Dimensions This diagram details the overall size of the unit and the additional space required around the unit to allow for commissioning and future servicing and maintenance 72.5 Service Void Ports Ø125 All Dimensions in mm DO NOT BOX IN UNIT... -
Page 7: Component Identification
Component Identification Lid Screw Scroll Top Output Port Base Cable Clamps Port Cover All Dimensions in mm... -
Page 8: Product Features
The CME Q Plus is controllable by various The CME Q Plus HA volt-free switches and sensors. LS is controllable Mains switching can be achieved by use by various mains of the Titon Boxed Relay 5A TP 505. switches. Mains switching Volt free switching Continuous The normal running speed of the unit. - Page 9 CME3 Q Plus A CME3 Q Plus HA CME3 Q Plus HA LS CME3.1 Q Plus A CME3.1 Q Plus HA CME3.1 Q Plus HA LS Setback The reduced ventilation rate is automatically Setback Speed, Speed set at the mid point between minimum reduced ventilation speed and the selected Continuous Speed.
-
Page 10: Installation
Any orientation is possible. connection of the Output Port to Outside. Ø125mm or Ø100mm ducting is used Locate a site for mounting the Titon CME, for connection to the other ports. take into consideration the position of: A minimum distance of 200mm... -
Page 11: How To Convert The Port Cover
How to convert the Port Cover 14. Ø125mm ducting fits inside the units Duct Ports. To enable the Port Cover to be used 15. Ø100mm ducting fits inside the as an adaptor for 100mm ducting, use Convertible Port Cover. a small screwdriver to tear out the tail 16. -
Page 12: Wiring
Wiring Wiring Connection Access The supply connections differ between units. Identify which connection style and ensure that the correct instructions are used. Access to the supply connections is achieved by loosing the two captive retention screws and removing the Lid. Lid Fixing Screws CME3 &... - Page 13 Volt-free setback switching of the unit’s controller PCB using single-pole latching switch and / or volt-free normally open relay contacts. SWITCH 1 SWITCH 2 To avoid the unit being inad- vertently left in Setback Mode, it is recommended that Volt-free setback switch or normally open relay contacts only one latching switch is fitted.
- Page 14 CME3 & 3.1 Q Plus HA LS The supply connection to this unit is via screw terminals mounted on the printed circut board (PCB), access is achieved by removing the PCB Cover. To remove the PCB cover remove the two small retaining screws and the cover will lift.
- Page 15 Switch Positions TP508 Three Position Rotary Switch 1 - Setback Speed U1 U2 U3 2 - Continuous Speed 3 - Boost Speed 3A Fuse All Pole Isolator CME3 & 3.1 Q Plus HA LS Three position Rotary Switch TP 508 switching and connection All Pole Isolator Boost...
- Page 16 Cable Retention CME3 & 3.1 Q Plus Cable Clamps Ensure the supply cable and if used control cable are routed via the cable clamp and securely held in place. The Cable Clamp Bar can be removed and turned over and used to clamp thinner cables.
- Page 17 Commissioning CME3 & 3.1 Q Plus A The fan speeds of the Titon CME3 & 3.1 Q Plus A will require adjustment to ensure that the flow rates achieved provide adequate ventilation. The Titon CME3 & 3.1 Q Plus A has 3 standard...
- Page 18 Potentiometers Boost Commissioning Controls Overrun Program Timer Switch Supply Extract Continuous Boost Boost Overrun Timer Extract Header Link in Program position Header Link in Run positions Cont Boost Supply To place the unit into commission mode Return Program / Run Header move the link into the Program Position, Link to Run Position, fitted to one i.e.
-
Page 19: Cme3 & 3.1 Q Plus Ha
CME3 & 3.1 Q Plus HA The fan speeds of the Titon CME3 & 3.1 Q Plus HA will require adjustment to ensure that the flow rates achieved provide adequate ventilation. The Titon CME3 & 3.1 Q Plus HA has 3 standard fan speed settings, Continuous Speed, Boost Speed and Setback Speed. -
Page 20: Commissioning Controls
Continuous Commissioning Controls Return Program / Run Header Link Boost Boost Overrun Timer Extract Supply Header Link in Run position Header Link in Program position To place the unit into commission mode to Run Position, i.e. fitted to one move the link into the Program Position, i.e. pin, to exit commissioning. - Page 21 Header Link Boost Overrun Boost Overrun is variable between 0 and 30 minutes. Rotate potentiometer to change overrun time. Boost Overrun adjustment can be done at any time without the need to move the Program / Run Header Link. Program / Run Header Link Boost Overrun Pot positions Humidity Sensor...
-
Page 22: Cme3 & 3�1 Q Plus
CME3 & 3.1 Q Plus HA LS The fan speeds of the Titon CME3 & 3.1 Q Plus HA LS will require adjustment to ensure that the flow rates achieved provide adequate ventilation. The Titon CME3 & 3.1 Q Plus HA LS has 3 standard fan speed settings, Continuous Speed, Boost Speed and Setback Speed. -
Page 23: Commissioning Controls
Continuous Commissioning Controls Boost Boost Overrun Timer Extract Supply Header Link in Run position Header Link in Program position To place the unit into commission mode Return Program / Run Header Link move the link into the Program Position, to Run Position, i.e. fitted to one i.e. -
Page 24: Boost Overrun
Boost Overrun Boost Overrun is variable between 0 and 30 minutes. Program / Run Header Link Boost Overrun Pot positions Rotate potentiometer to change overrun time. Boost Overrun adjustment can be done at any time without the need to move the Program / Run Header Link. Humidity Sensor The Humidity Sensor’s trigger point is variable from 55%RH to 85%RH. -
Page 25: Reset Information
Reset Information Controller Reset Following a controller reset the ventilation system will need to be fully re- commissioned. The unit will need to be powered up during the reset procedure. Place the Program / Run Header Link in the Run Position Rotate the Continuous Speed and Boost Speed adjustment fully clockwise. -
Page 26: Technical
Technical Product Fiche Supplier Name Titon Hardware Ltd. Supplier Address 894 The Crescent Colchester Business Park Colchester Essex CO4 9YQ Model CME3 Q Plus A CME3 Q Plus HA Central Mechanical Extract Central Mechanical Extract Model Identifier TP332A TP332HA Declared Typology... - Page 27 Product Fiche Supplier Name Titon Hardware Ltd. Supplier Address 894 The Crescent Colchester Business Park Colchester Essex CO4 9YQ Model CME3.1 Q Plus A CME3.1 Q Plus HA Central Mechanical Extract Central Mechanical Extract Model Identifier TP342A TP342HA Declared Typology...
-
Page 28: Maintenance
The CME3 & CEM3.1 Q Plus must be periodically cleaned internally. The maximum time between cleaning will depend on the local environment. Titon recommend the unit be cleaned every 3 – 4 years at a minimum. In the event of any queries please contact the system installer. -
Page 29: Removal Of The Scroll Top
Removal of the Scroll Top Cleaning Interior The Scroll Top is retained with six clips, For best results use a clean damp cloth some units may also use four screws. with a warm mild detergent solution. To remove the Scroll Top first remove and retain the screws (if fitted). -
Page 30: Service Record
Service Record Serviced By Company Name Date Notes... -
Page 31: Installed
