Summary of Contents for Titon CME1

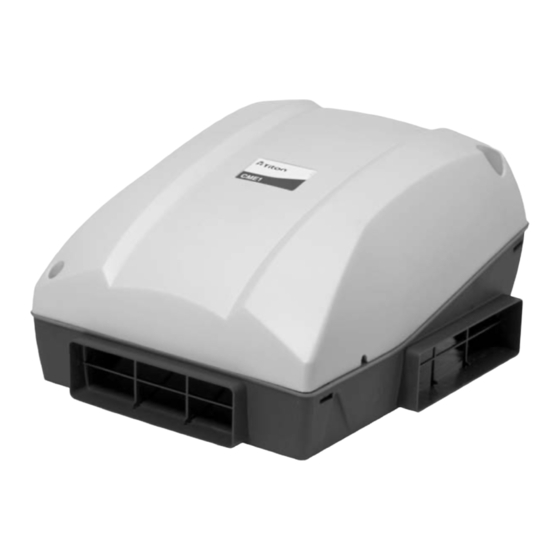

- Page 1 Titon CME1 Mechanical Extract Ventilation Unit Product Manual ventilation systems Online Version...
- Page 2 PCT Patent Application No PCT/GB2009/000114 Online Version...
-
Page 3: Table Of Contents
Contents This is the Product Manual for the Titon CME1 (Not the CME1 Q Plus) Introduction ........4 Ventilation is Vital . -
Page 4: Introduction
The Titon CME1 has been developed to meet these de- mands by extracting stale polluted air from the building whilst fresh air is provided by passive means. -
Page 5: Ventilation Is Vital
Ventilation is Vital onstruction methods used in older homes resulted in uncontrolled ventila- tion via air leaking through the building structure, such as small gaps around windows and doors or between walls and fl oors. These leaks allowed a large amount of air to move through a home largely unnoticed by the occupants. -
Page 6: How The System Works
How the System Works he Titon CME1 works by continually extracting stale polluted air from rooms where most moisture is generated. Fresh air is provided passively from outside to habitable rooms, creating a fl ow of fresh, clean air throughout the home. The air travels from terminals built into the ceiling which are connected by hidden ducts to the unit. -
Page 7: How To Use The System
How to Use the System he unit runs automatically and should not be switched off , except for mainte- nance. If a boost switch has been installed, it can be used to increase the extract ventilation rate at times when moisture or pollutant levels are considered exces- sive. -
Page 8: Installation
Installation Safety and Guidance • The electrical installation of the appliance MUST be carried out by a suitably quali- fi ed competent person and all wiring must be in accordance with current I.E.E. Regulations and all appropriate standards and applicable regulatory guidance. •... -
Page 9: Transportation, Packaging & Storage
Important: read these instructions fully before the installation of this appliance • NEVER install the CME1 in an area which does not have suffi cient access the for future maintenance (see Dimensions) , or ‘box-in’ the unit, as the area may subse- quently surface fi nished making access to the unit diffi cult. -
Page 10: Dimensions
Installation Dimensions This diagram shows the overall dimensions of the unit, and the additional space required around the unit once installed to allow for future servicing and maintenance. Service Void All dimensions in mm Online Version... -
Page 11: Component Identifi Cation
Installation Component Identifi cation Cover / Scroll / Inlet Ring assembly Base Cover Scroll Inlet ring Base CME1 Unit components Online Version... -
Page 12: Fixing
Installation Fixing The CME1 must be securely fi xed to a smooth fl at surface, any orientation is possible. Mark the four fi xing hole centres using the BASE as a template Drill holes for fi xings, use 4mm Pan Head screws. Always use a fi xing type and length suited to the substrate type. - Page 13 Installation Fixing Unscrew the 2 retaining screws that hold on the COVER and remove, retain the screws. Fit two screws through the pre- formed holes at the front of the INLET RING. to securely fi x the INLET RING/SCROLL assembly to the BASE Fit one screw through the preformed hole in the back of the BASE.
-
Page 14: Ducting Best Practice
Installation Ducting Best Practice • The use of fl exible ducting must be kept to a minimum and it should always be pulled taut. • If applicable, Fire Dampers must be fi tted to duct work at appropriate locations in accordance with Building Regulations. -
Page 15: Ducting Connection
Installation Ducting Connection • 204mm x 60mm ducting fi ts inside the ports. • To enable fi tment of 110x54mm ducting, modify the convertible port cover by tearing out the ‘rip strip’ . • When using the convertible port cover ensure the tear out section is completely removed. - Page 16 Installation Ducting Connection • 110mm x 54mm ducting fi ts inside the convertible port cover • All joints must be adequately sealed, on all sides, using a suitable ducting tape and/or silicone type sealant. • Unused extract ports must be fi tted with non-converted or undamaged port covers.
- Page 17 Installation Notes Online Version...
-
Page 18: Wiring
Installation Wiring WARNING: The unit MUST be earthed. All wiring must conform to current I.E.E. Wiring Regulations and all applicable standards and Building Regulations. • The unit is suitable for 230V~50/60Hz Single phase supply fused at 3A. • For connection of the mains and boost trigger switch a terminal block is fi tted inside the unit, under the cover. - Page 19 Installation Wiring Cable Access Internal Cable Routing Double Pole Isolator 3A Fuse Two Way switch Wiring Diagram for Continuous Speed 1,2 or 3 and Boost Speed 4 Online Version...
-
Page 20: Commissioning
Commissioning Speed Setting Volts Curve Speed Air Flow l/s Speed Table Fan Curve 90 125 160 BLUE BROWN GREY BLACK Continuous Boost Transformer Connections Transformer Connections Online Version... -
Page 21: How To Change Speeds
• Once the appliance has been fully installed it should be commissioned. • The Titon CME1 is Factory set at: GREY Continuous Speed 1 - 90V, BLACK Boost Speed 2 - 125V. Fan speeds may need adjusting in order to provide ventilation rates appropriate to the dwelling requirements. -
Page 22: Maintenance
Maintenance Cleaning The CME1 must be periodically cleaned internally. The maximum time between cleaning will depend on the local environment, however every 3 – 4 years is recom- mended. WARNING: The unit uses a 230V ~ supply and contains rotating mechanical parts. - Page 23 Maintenance Cleaning • Using a fl at bladed screw driver, un-clip SCROLL from INLET RING by disengaging the 3 retaining clips. Ensure that the SCROLL is supported and does not strain the cables. • Remove the 3 retaining screws. Online Version...
- Page 24 Title Cleaning • Using a fl at bladed screwdriver, un- clip the INLET RING from BASE. by disengaging the 4 retaining clips. • Carefully remove dust from the unit and fan blades using a vacuum cleaner. • Wipe with damp cloth and mild detergent. •...
-
Page 25: Declaration Of Conformity
We declare that the equipment detailed below conforms to the requirements of EC council directives relating to electro- magnetic compatibility and safety of electrical equipment. Equipment type: Titon CME1 Description of equipment: Mechanical ventilation unit Relevant EC Council Directives: 2006/95/EC (LVD), 2004/108/EC (EMC) -
Page 26: Service Record
Service Record Serviced by Company name Date Notes Online Version... - Page 27 Service Record Serviced by Company name Date Notes Online Version...
- Page 28 Home Information Pack and used as a service record. MARKETING DIVISION International House, Peartree Road, Stanway, Colchester, Essex CO3 0JL Tel: +44 (0) 1206 713800 Fax: +44 (0) 1206 543126 Email: ventsystems@titon.co.uk Web: www.titon.com Online Version BM 835 iss01...
