PB TEEN Oxford Media Assembly Instruction

Oxford Media
Assembly Instruction

Safety Instructions:

The top shelf of this TV stand is intended for use with:
•
Plasma/LCD/DLP/HD television having a maximum screen size of 50 inches and weight of 135 lbs:
The other support shelf should not be loaded more than 25 lbs.
•
This unit contains a permanent sticker located either beneath top shelf or inside drawer.
•
Caution:
Electronic component that generate heat, may cause damage to the equipment.
Please refer to the manufacturer's owner's manual for space and ventilation requirement.

Pre-Assembly:

Please read all instructions before beginning assembly.
•
For your safety and convenience, assembly by two adult is recommended.
•
Carefully set out and identify all part hardware prior to assembly.
•
Save all packing materials until assembly is complete to avoid accidentally discarding small
•
part or hardware.

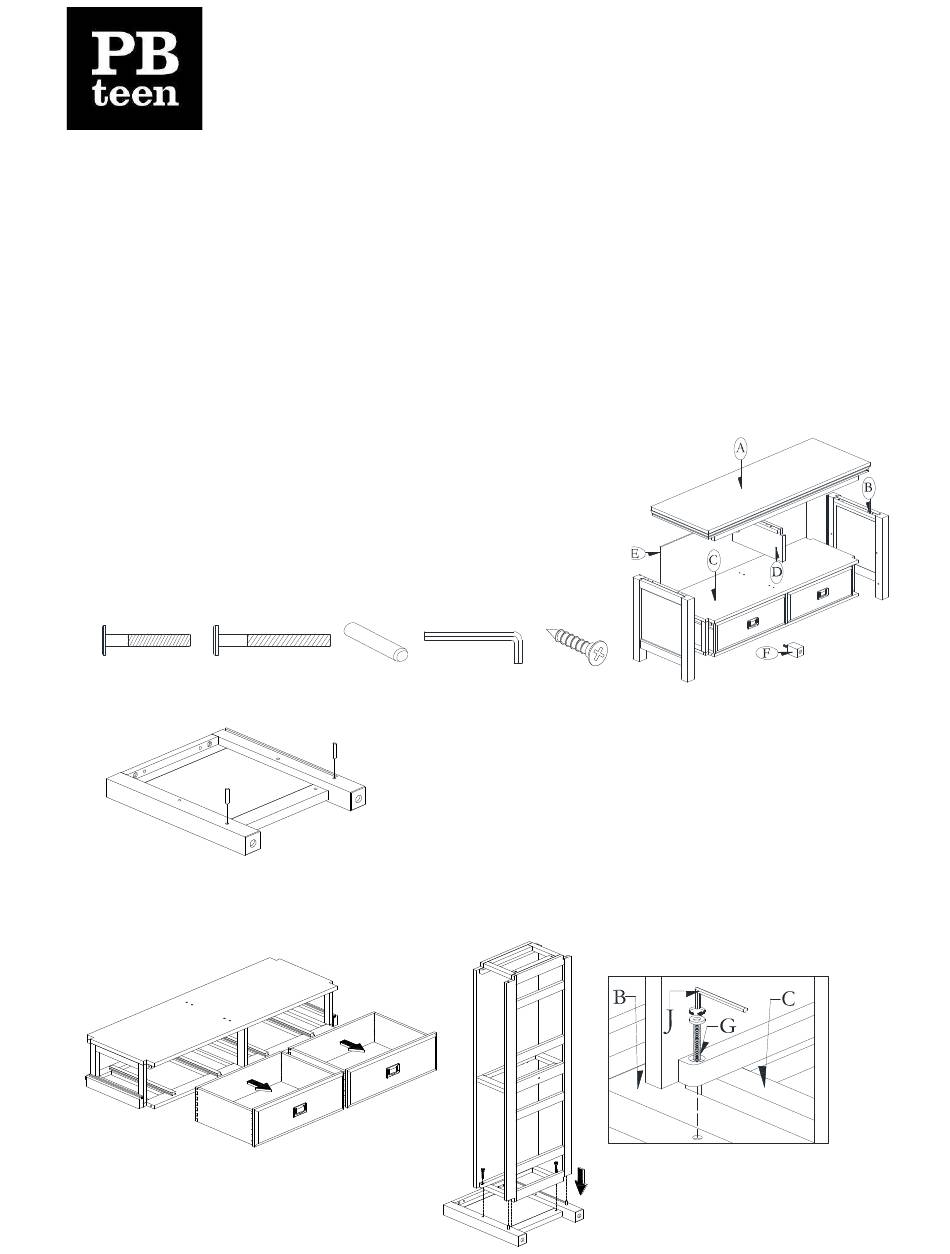

Part Enclosed in Box 1:
• (1) Top Panel(A)
• (2) Side Panels(B)
• (1) Storage Cabinet(C)
• (1) Partition Panel(D)
(1) Back Panel(E)
•
• (1) Leg support(F)
(G)

To Assemble:

1.
Carefully lay the side panel (B) on a flat scratch-free or carpeted surface. Insert the
wooden dowels (I) into the holes on one side panel (B), as shown in figure 1.
Fig.1
B
2.
Remove the drawers from the storage cabinet (C) as shown in fig 2. Attach the storage cabinet
(C) to the side panel (B) by inserting the wooden dowels (I) on the side panel (B) into the
holes on the side frame of the storage cabinet (C). Insert the Allen Bolts (G) through the
holes on the cleat and the side frame of the storage cabinet (C). Tighten with the Allen Key
(J)(Do not over tighten), as shown in figure 3, illustration 1.
Fig.2
C

Hardware Enclosed:

• (14)Allen Bolts M6 x 35mm (G)
• (2) Allen Bolts M6 x 50mm (H)
• (12)Wooden Dowels M8 x 30 (I)
• (1) Allen Key M4(J)
(7) Screw 6 x 5/8"(K)
•
(H) (I)
I
Fig.3
B
(J) (I)
C
Illustration.1
