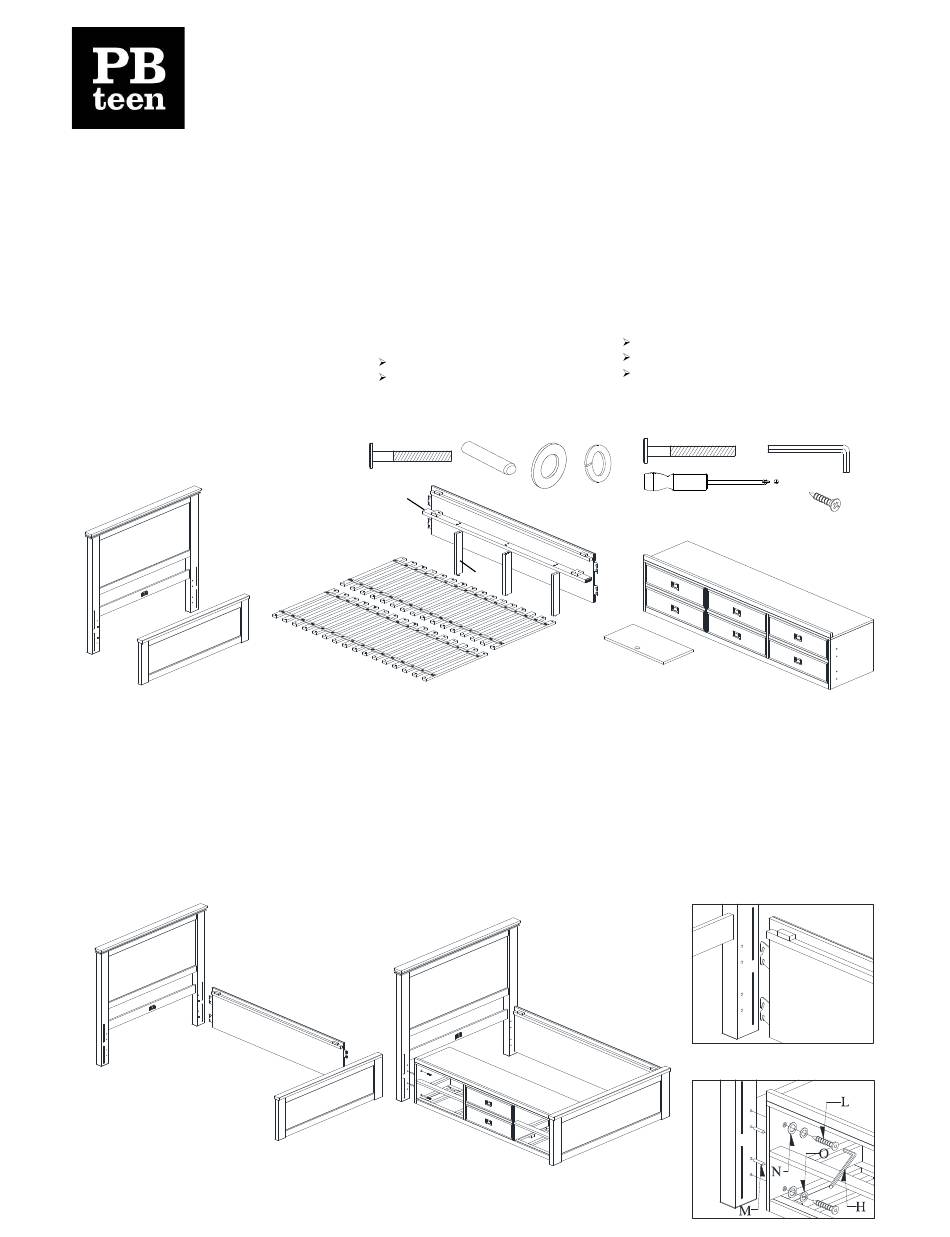

PB TEEN Oxford Captain Bed Assembly Instruction

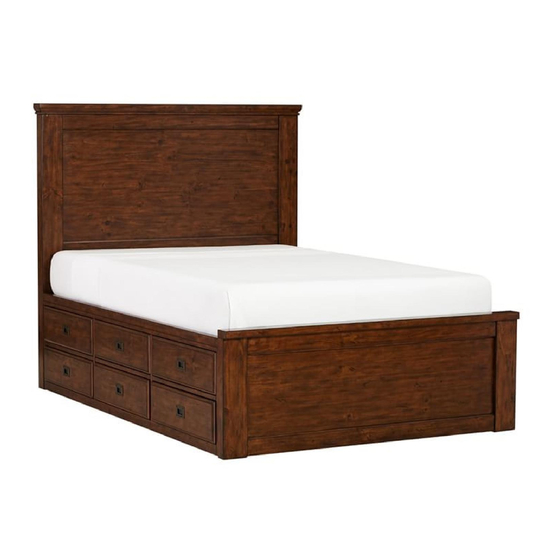

Oxford Captain Bed
Assembly Instruction
Pre-Assembly:
Please read all instructions before beginning assembly.
•
For your safety and convenience, assembly by two adult is recommended.
•
Carefully set out and identify all part hardware prior to assembly.
•
Save all packing materials until assembly is complete to avoid accidentally discarding small part or hardware.
•
Parts Enclosed in Box 1:
(1) Headboard - (A)
•
(1) Footboard - (B)
•
Parts Enclosed in Box 3:
(1) Storage -(J)
•
(1) Tray - (K)
•
•
Hardware Enclosed in Box 3:
(4) Allen Bolts M6 x 35mm -(L)
•
(4) Wooden Dowels M10 x 30 -(M)
•
(4) Flat Washers -(N)
•
(4) Spring Washers -(O)
•
A
B
To Assemble:
1.
Attach side rails (C) to the headboard (A) and footboard (B) by inserting hooks into the corresponding slots. Side Rail (C) can be
attached on either the left or right side. Ensure connections are secure as shown in fig. 1, illustration 1.
2.
Insert wooden dowels (M) into the holes on the headboard (A) and footboard (B). Remove the end drawers from the storage (J).
Align and place storage (J) by inserting the wooden dowels (M) in the headboard (A) and footboard (B) into the holes in the side
panels of the storage (J), as shown in fig. 2.
3.
Place spring washers (O), flat washers (N) onto the Allen Bolts (L) and into the holes on the side panels of the storage (J). Tighten
with the Allen Key (H), as shown in illustration 2.
Fig.1
A
Parts Enclosed in Box 2:
(1) Side rail -(C)
•
(1) Mid Beam (Queen only)-(D)
•
(3) Leg supports (Queen only)-(E)
•
Slats -(F)
•
Queen (2) Roll
Full/Twin (1) Roll
(L)
D
F
C
B
Hardware Enclosed in Box 2:
(6) Allen Bolts M6 x 45mm (Queen only)-(G)
•
(1) Allen Key M4-(H)
•
Screws -(I)
•
(M) (N) (O)
C
E
Fig.2
A
C
J
B
Full 8 x 1 1/2" (32)
Twin 8 x 1 1/4" (32)
Queen 8 x 1 1/4" (64)
(G) (H)
(I)
Phillips head Screwdriver
(Not included)
J
K
Illustration.1
Illustration.2
