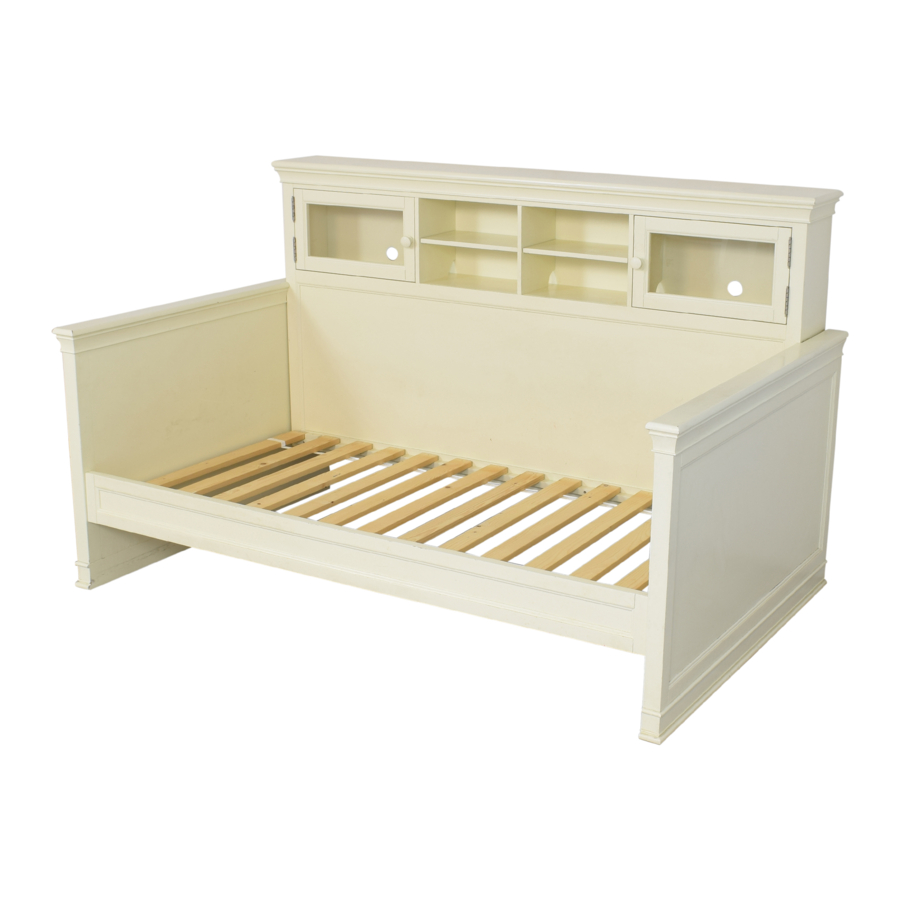

Display-It Daybed
PRE-ASSEMBLY:
•
For your safety and ease, assembly by two adults is recommended.
•
Please read all instructions before beginning assembly. The illustrations provided allow for easier assembly
when used in conjunction with the assembly instructions.
•
Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface. The
shipping box provides and ideal work surface. Do not dispose of any contents until assembly is completed to
avoid accidentally discarding small parts or hardware.
•
Use the parts and hardware lists to identify and separate each of the pieces included prior to starting
assembly.
•
Note: DO not fully tighten the bolts until all parts are in place. Failure to follow these instructions may
cause the bolts to misalign during assembly.
•
If using power tools to aid in assembly please use caution. Power tools can damage hardware or split
wood.
TOOLS REQUIRED:
Phillips Head Screwdriver (Not included)
HARDWARE INCLUDED:
G - Allen Key – 1pc
J - Flat Washer – 8pcs
H - Allen Bolt 5/16" x 50mm –
8pcs
K - Wood Screw 4x30mm – 28pcs
www.pbteen.com
PARTS INCLUDED:
A - Left Side Panel – 1pc
B - Right Side Panel - 1pc
C - Footboard – 1pc
D - Headboard – 1pc
E - Removable Shelf – 2pcs
F - Slat Roll – 1pc
I - Spring Washer – 8pcs
L - Shelf Supporter – 8pcs
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PB TEEN Display-It
Summary of Contents for PB TEEN Display-It

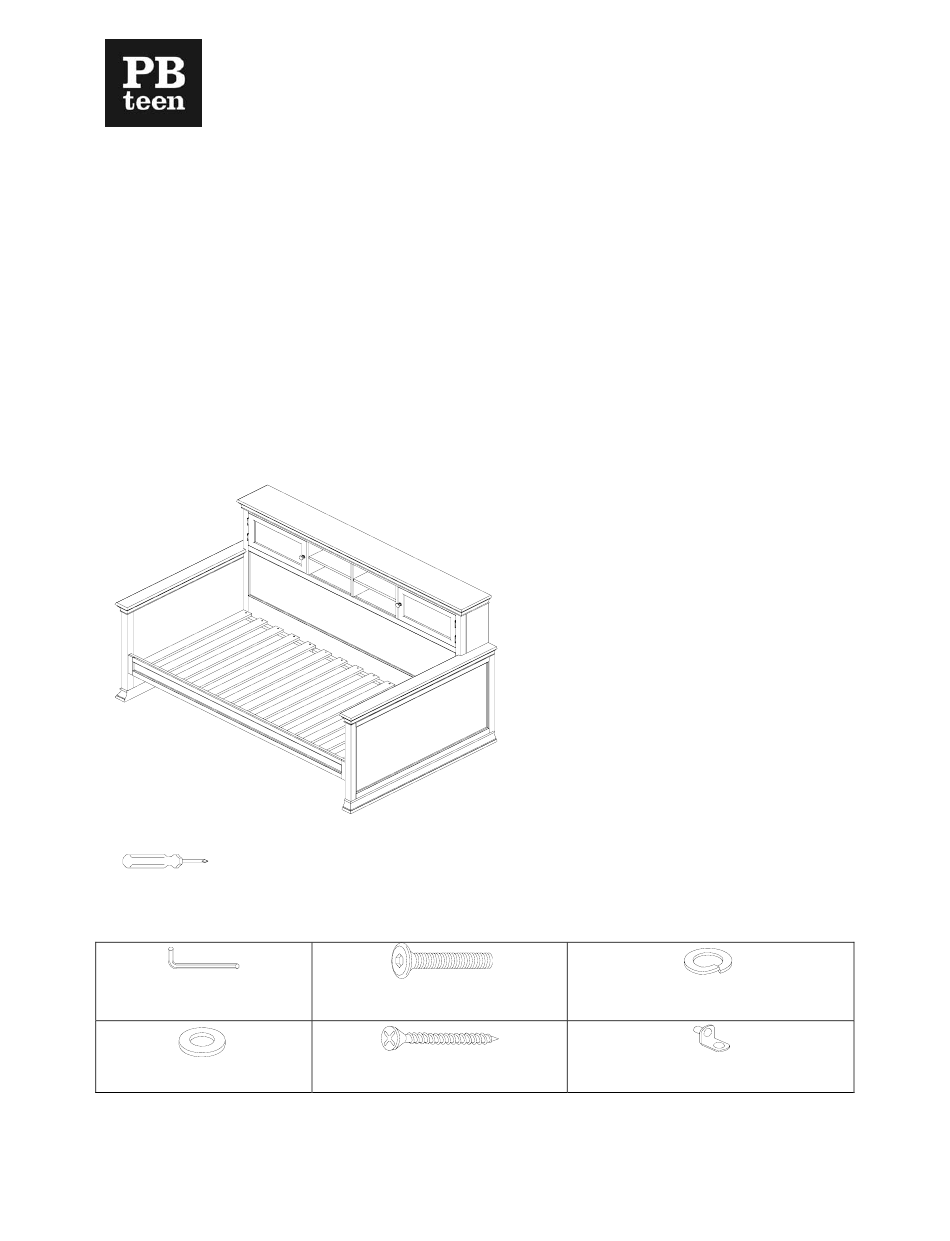

- Page 1 Display-It Daybed PRE-ASSEMBLY: • For your safety and ease, assembly by two adults is recommended. • Please read all instructions before beginning assembly. The illustrations provided allow for easier assembly when used in conjunction with the assembly instructions. • Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface. The shipping box provides and ideal work surface.
- Page 2 ASSEMBLY INSTRUCTIONS: 1. One person should hold the Left Side Panel (A) while the other person holds the Right Side Panel (B). Make sure the cut-outs on the side panels are facing each other. Attach each end of the Footboard (C) to the Left/Right Side Panels (A&B) by inserting the hooked ends of the Footboard (C) into the corresponding slots in the Left/Right Side Panel (A&B), as shown below.
-
Page 3: Care Instructions
4. Insert (8) Shelf Supporters (L) into the pre-drilled holes inside the cubbies of the Headboard (D). Place the (2) Removable Shelves (E) on the Shelf Supporters (L), making sure the shelves are stable. 5. Place the Slat Roll (F) onto the small ledges of the Headboard (D) and Footboard (C) and loosely secure with (28) Screws (K) using a Phillips Head Screwdriver, as shown. - Page 4 Display-It Daybed Trundle PRE-ASSEMBLY: • For your safety and ease, assembly by two adults is recommended. • Please read all instructions before beginning assembly. The illustrations provided allow for easier assembly when used in conjunction with the assembly instructions. •...
- Page 5 ASSEMBLY INSTRUCTIONS: Lay the Left and Right Bottom Boards (A) on either side of the Center Bottom Board (B) with the pre- drilled holes facing up, as shown in Figure 1. Attach (2) Cross Bars (C) to the Left, Right and Center Bottom Boards (A &...
- Page 6 Figure 2. sit in Align the pre-drilled holes on the Short Side Rails (F) with the pre-attached wooden dowels on the ends of the (2) Long Side Rails (D & E). Place a Barrel Nut (K) into the corresponding opening on the Long Side Rails (D &...
- Page 7 Turn the trundle upside down. Secure the Left, Right and Center Bottom Boards (A & B) to the Long/Short Side Rails (D, E & F) using the remaining (10) Long Wood Screws (L), as shown below. Tighten with a Phillips Head Screwdriver. Figure 4.
