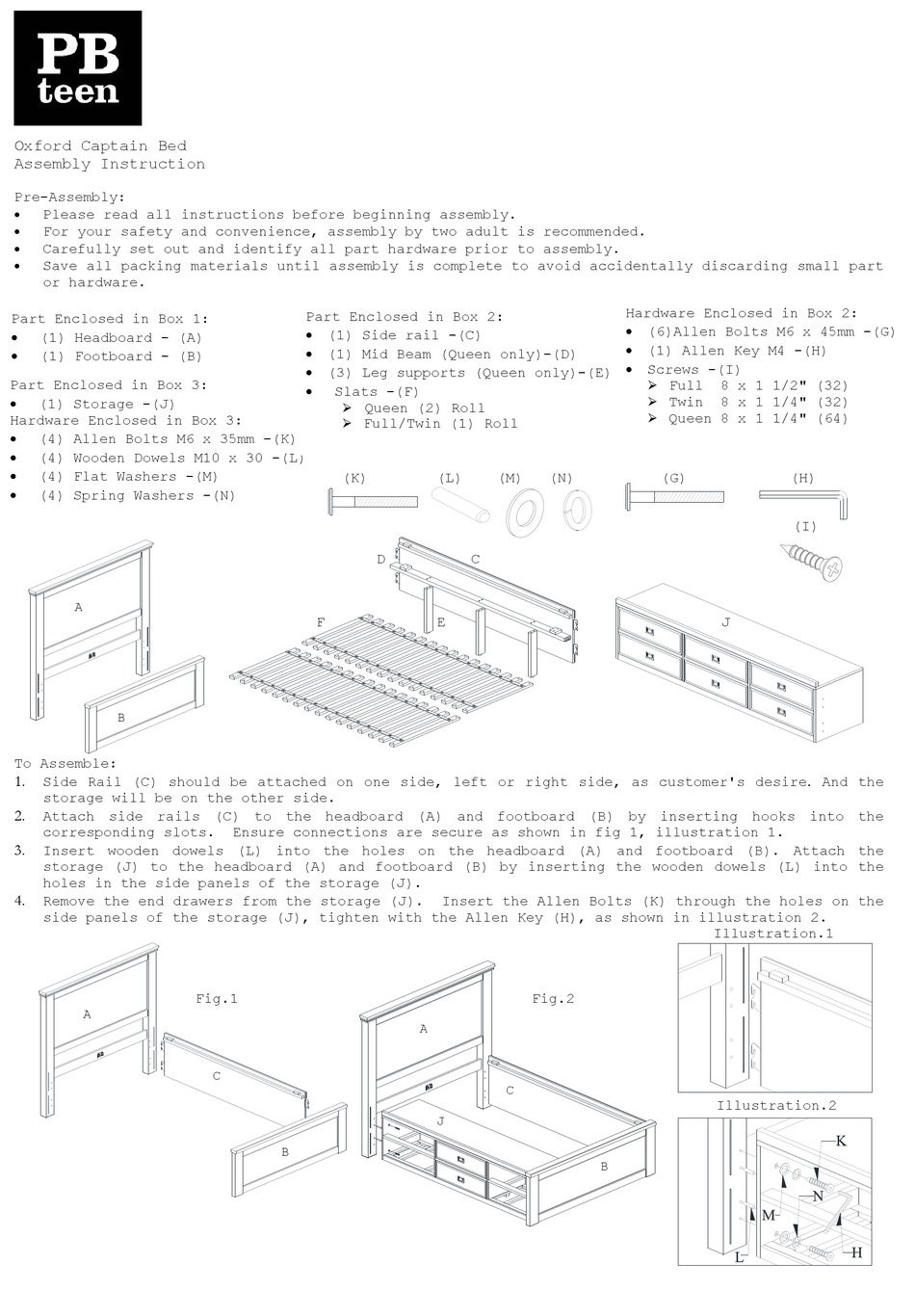

PB TEEN Oxford Captain Bed Assembly Instruction

Oxford Captain Bed
Assembly Instruction

Pre-Assembly:


Please read all instructions before beginning assembly.

For your safety and convenience, assembly by two adult is recommended.

Carefully set out and identify all part hardware prior to assembly.

Save all packing materials until assembly is complete to avoid accidentally discarding small part
or hardware.
Part Enclosed in Box 1:

(1) Headboard - (A)

(1) Footboard - (B)
Part Enclosed in Box 3:

(1) Storage -(J)
Hardware Enclosed in Box 3:

(4) Allen Bolts M6 x 35mm -(K)

(4) Wooden Dowels M10 x 30 -(L)

(4) Flat Washers -(M)

(4) Spring Washers -(N)
A
B

To Assemble:

1.
Side Rail (C) should be attached on one side, left or right side, as customer's desire. And the
storage will be on the other side.
2.
Attach side rails (C) to the headboard (A) and footboard (B) by inserting hooks into the
corresponding slots.
3.
Insert wooden dowels (L) into the holes on the headboard (A) and footboard (B). Attach the
storage (J) to the headboard (A) and footboard (B) by inserting the wooden dowels (L) into the
holes in the side panels of the storage (J).
4.
Remove the end drawers from the storage (J).
side panels of the storage (J), tighten with the Allen Key (H), as shown in illustration 2.
A
Part Enclosed in Box 2:
 (1) Side rail -(C)
 (1) Mid Beam (Queen only)-(D)
 (3) Leg supports (Queen only)-(E)

Slats -(F)

 Full/Twin (1) Roll
(K)
F
Ensure connections are secure as shown in fig 1, illustration 1.
Fig.1
C
B
Queen (2) Roll
(L) (M)
D C
E
Insert the Allen Bolts (K) through the holes on the
Fig.2
A
C
J
Hardware Enclosed in Box 2:
 (6)Allen Bolts M6 x 45mm -(G)
 (1) Allen Key M4 -(H)
 Screws -(I)
 Full
Twin

 Queen 8 x 1 1/4" (64)
(N) (G)
Illustration.1
Illustration.2
B
8 x 1 1/2" (32)
8 x 1 1/4" (32)
(H)
(I)
J
