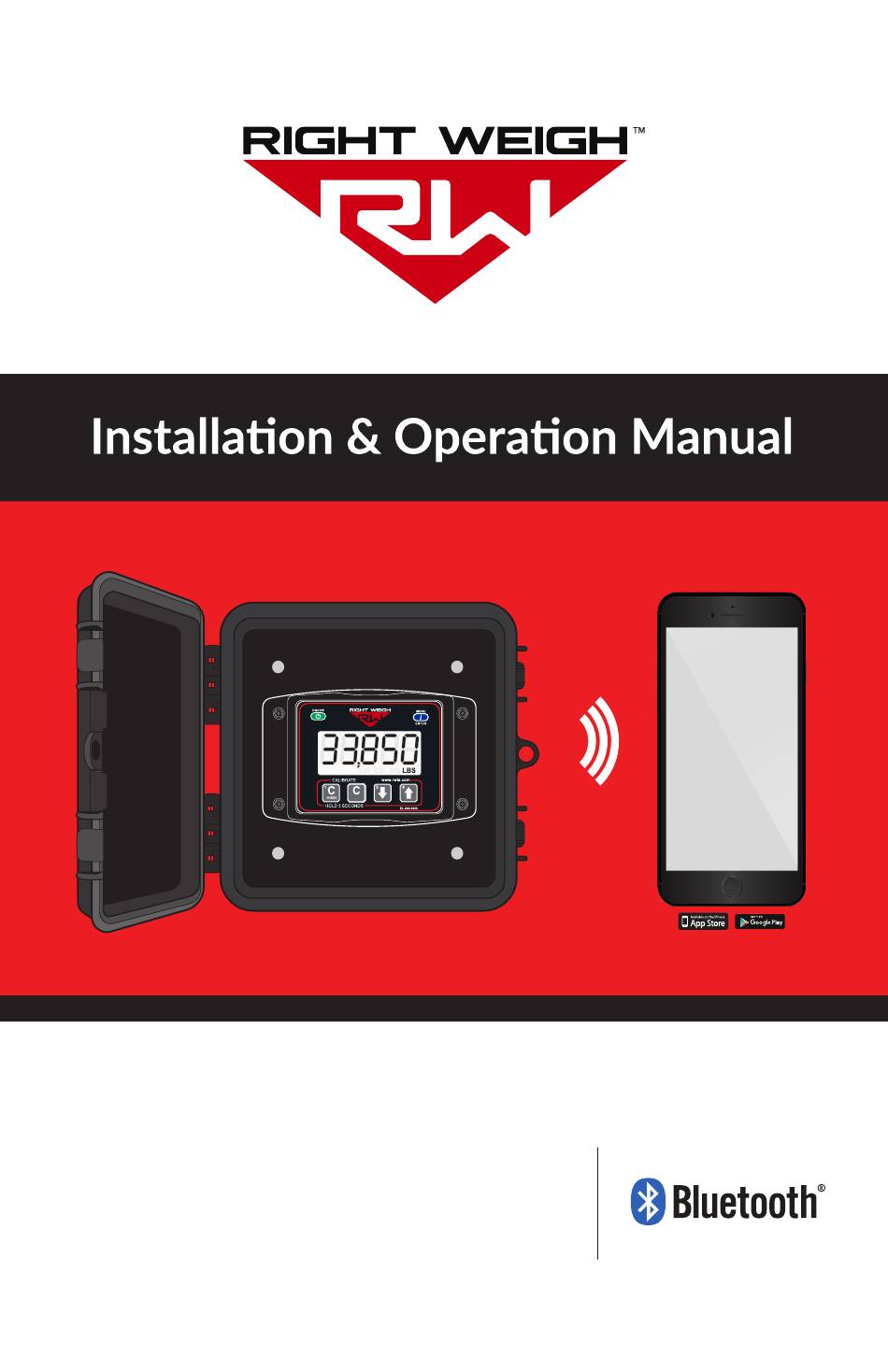

- Page 1 ONBOARD LOAD SCALE 201-257-01 EXTERIOR DIGITAL 201-257-02...
- Page 2 It is also important to be aware of vehicle manufacturer policies before making modifications to the vehicle. Right Weigh, Inc. is not liable or responsible for issues regarding warranties with other manufacturers. This is the responsibility of the customer.
-
Page 3: Table Of Contents
EXTERIOR DIGITAL 201-257-02 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Right Weigh, Inc. is under license. Other trademarks and trade names are those of their respective owners. -
Page 4: Specifications & Overview
SPECIFICATIONS & OVERVIEW The Right Weigh 201-257-01 digital load scale has one internal air pressure sensor. This scale will monitor a single, tandem, or tridem air suspension drive axle group with one Height Control Valve (HCV). 1 HCV 1 HCV... - Page 5 SPECIFICATIONS & OVERVIEW Estimated Steer Axle: The weight of the steers can be estimated if this scale is used to monitor the drive axle group. Refer to the Estimated Steer Mode section for more information. Technical Specifications Operating Temperature: -22° F to +185° F (-30° C to +85° C) Storage Temperature: -40°...
-
Page 6: Scale Installation
SCALE INSTALLATION The 201-257-01 and 201-257-02 scales are designed to be mounted on the outside of a truck. A protective enclosure and mounting bracket are included with the scales. The following steps will walk you through how to correctly mount and install the scale. - Page 7 SCALE INSTALLATION INSTALL NEW STREET TEE FITTING Remove the suspension air line fitting from the top of one of the air bags. Air Bag Insert a street tee fitting into the top of the Street tee air bag that matches the thread size of the tting vehicle suspension.
-
Page 8: Remote Trailer Connection
REMOTE TRAILER CONNECTION The 201-RTS series load scale has the option of being connected to any Right Weigh remote trailer sensor. When connected to the remote trailer sensor, the load scale displays the weight of the trailer axle group based on calibration data that is saved to the remote trailer sensor itself. -
Page 9: Scale Operating Modes
SCALE OPERATING MODES The next few pages cover the operation modes that are built into the 201-257-01 and 201-257-02. The load scale can only be setup in one operating mode at a time. If the mode is changed, the calibration data will be reset to factory defaults, requiring re-calibration. -
Page 10: Estimated Steer Mode
SCALE OPERATING MODES SENSOR AVERAGE (AVG) In Sensor Average mode, a 201-257-01 or 201-257-02 will display a single weight for the drive axle group and a separate weight for the trailer axle group. The small number on the lower left of the display indicates which axle group is being shown. -
Page 11: Calibration
CALIBRATION The 201-257 series load scale must be calibrated both empty and loaded to work properly. The scale associates the air pressure in the suspension system to the weight you enter at the time of calibration. You will need to calibrate once while the vehicle is empty, and again while the vehicle is loaded for each axle group being monitored. - Page 12 HCV to refill the system. 4: Press the ON/OFF button to turn on the Right Weigh load scale. 5: For S-AVG and 4CAL modes, press the blue MENU button to select the proper axle group or calibration set.
-
Page 13: Operating & Weighing
4: Press the ON/OFF button to turn on the Right Weigh load scale. 5: Adjust the suspension or the load itself until the Right Weigh load scale displays a weight value below your legal limit. 6: For S-AVG and 4CAL, press the blue MENU button. -
Page 14: Security Pin Code
SET SECURITY PIN CODE PRESS With the gauge off, hold both the C LOW and C HIGH buttons, then press the ON/OFF button and release all three. HOLDING Press the MENU button and PRESS “00000” will display on the screen. Enter a 5 digit PIN code using the 1, 2, 3, and 4 buttons. -
Page 15: Changing
CHANGE SECURITY PIN CODE PRESS With the gauge off, hold both the C LOW and C HIGH buttons, then press the ON/OFF button and release all three. HOLDING Press the MENU button and PRESS “-----” will display on the screen. Enter the previous PIN code. -
Page 16: Setting
OVERWEIGHT WARNING The overweight warning can be added as a visual warning to the driver to flash anytime the gauge reads above a set weight. With the scale turned on, press and hold both the C HIGH and C LOW buttons until the “C/H” symbol appears. -
Page 17: Right Weigh Bluetooth™ App
RWLS APP - CONNECT TO SCALE Go to the Google Play or App Store and download the Right Weigh App! Once the Right Weigh Load Scales app has been downloaded onto your smart device, follow these steps to connect to your scale. - Page 18 RWLS APP - CONNECT TO SCALE On the app home screen, press the “Add Gauge” button and choose whether the gauge is connected to the PRESS truck or trailer. CHOOSE SELECT Look for the gauge with the name containing the unique identifier found in step 2.
-
Page 19: Home
RWLS APP - HOME HOME SCREEN Share Print Menu Gross and Net Weight Tare Weight Scale Name Connection Status Details Axle Group Details Name Add Scale... - Page 20 Settings. Settings - see page 21 for more info. Contact Us - contact information to Right Weigh technical support. The app version number is also displayed at the bottom of the menu.
-
Page 21: Scale Details
RWLS APP - DETAILS To get to the scale details screen: iOS devices: press the details link shown below the axle weights on the home screen. Android devices: press on the scale name shown on the home screen. This page will display information for that specific scale and includes the ability to rename the scale. -
Page 22: Settings
RWLS APP - SETTINGS To get to the settings screen, press the menu button on the top left of the home screen and navigate to “Settings” CHANGING UNITS Change the units to either pounds (LB) or kilograms (KG) SET WARNING AND OVERLOAD WEIGHTS Set warning and overload weight limit defaults... -
Page 23: Troubleshooting
Drive the vehicle around the block and return to the same location. Acquire a second reading from the Right Weigh gauge. If the two readings are significantly different, then the HCV might be malfunctioning. With scale on, press and hold the 1 & 2 buttons simultaneously. - Page 24 PIN before calibration data can be changed. To understand how to code reset the PIN code, see page 16. If the PIN code has been forgotten, please call Right Weigh technical support listed on page 2 for further assistance.
-
Page 25: Appendix A - Additional Parts
The following is a list of additional parts needed for air line installation. This list is just a suggestion and may not be all of the parts needed for your specific vehicle. Check with your Right Weigh dealer for optional installation kits. -
Page 26: Appendix B - Wiring Insulation
APPENDIX B It is very important that all wiring connections be made watertight. Connections which are not watertight can allow moisture to travel through the individual strands of the wires and make it’s way into the scale, causing permanent damage to the electronics. Heat shrinkable splices are included in the 201-SK Installation Kit. - Page 27 NOTES...
- Page 28 NOTES...
- Page 29 NOTES...
-
Page 30: Warranty Statement
(including loss of profits or loss of time) resulting from the performance of a Right Weigh, Inc. product. In all cases, Right Weigh, Inc. liability will be limited to the original cost of the product in question. Right Weigh, Inc. reserves the right to make improvements in design,... -
Page 31: Return Policy & Repairs
Right Weigh, Inc. will return the repaired product at customer expense via a shipping method (carrier to be at sole discretion of Right Weigh, Inc.) equal to or faster than the method used by the customer. - Page 32 (503) 628-0838 (888) 818-2058 - Toll Free (USA ONLY) www.rwls.com support@rwls.com Australia and New Zealand: Smart Truck Solutions +61 418 622840 rightweigh.com.au Right Weigh, Inc. PP-003-0029 Revision D Hillsboro, Oregon USA October 2020 ©2015-2020 Right Weigh, Inc. All rights reserved.
