Summary of Contents for Right Weigh 201-257-01

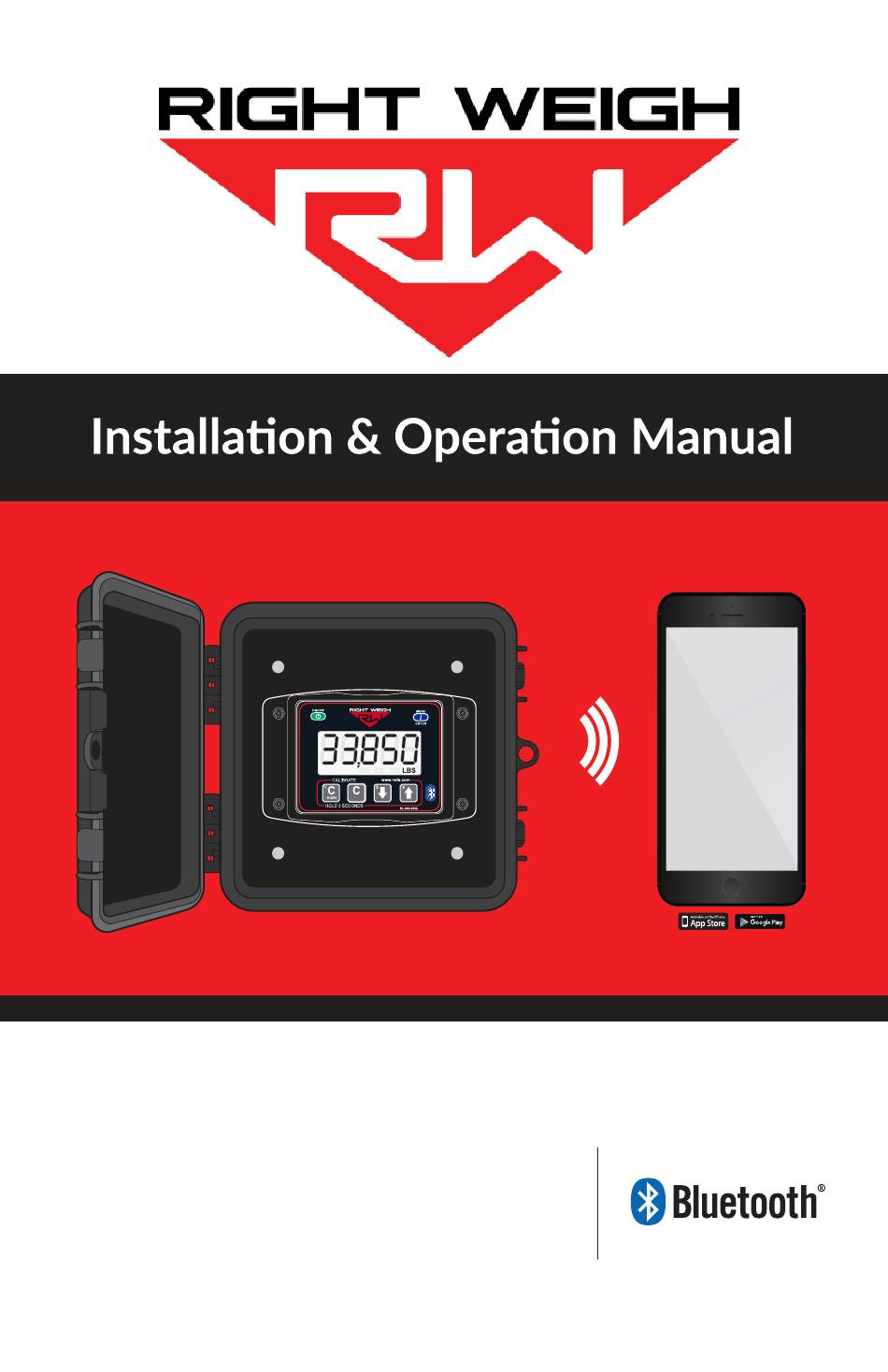

- Page 1 ONBOARD LOAD SCALE 201-257-01 EXTERIOR DIGITAL 201-257-02...
- Page 2 It is also important to be aware of vehicle manufacturer policies before making modifications to the vehicle. Right Weigh, Inc. is not liable or responsible for issues regarding warranties with other manufacturers. This is the responsibility of the customer.
-
Page 3: Table Of Contents
EXTERIOR DIGITAL 201-257-02 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Right Weigh, Inc. is under license. Other trademarks and trade names are those of their respective owners. -
Page 4: Specifications & Overview
SPECIFICATIONS & OVERVIEW The Right Weigh 201-257-01 digital load scale has one internal air pressure sensor. This scale will monitor a single, tandem, or tridem air suspension drive axle group with one Height Control Valve (HCV). 1 HCV 1 HCV... - Page 5 SPECIFICATIONS & OVERVIEW Technical Specifications Operating Temperature: -22° F to +185° F (-30° C to +85° C) Storage Temperature: -40° F to +185° F (-40° C to +85° C) Power Requirement: 9 VDC to 32 VDC (Switched) Units: Pounds (LBS) or Kilograms (KG) Housing: High impact polycarbonate blend Display: 0.8”...
-
Page 6: Scale Installation
SCALE INSTALLATION The 201-257-01 and 201-257-02 scales are designed to be mounted on the outside of a truck. A protective enclosure and mounting bracket are included with the scales. The following steps will walk you through how to correctly mount and install the scale. - Page 7 SCALE INSTALLATION INSTALL NEW STREET TEE FITTING Remove suspension Remove the suspension air line fitting from air line and fitting the top of one of the air bags. Air Bag Insert a street tee fitting into the top of the Street tee air bag that matches the thread size of the fitting...
-
Page 8: Remote Trailer Connection
REMOTE TRAILER CONNECTION The 201-RTS series load scale has the option of being connected to any Right Weigh remote trailer sensor. When connected to the remote trailer sensor, the load scale displays the weight of the trailer axle group based on calibration data that is saved to the remote trailer sensor itself. -
Page 9: Scale Operating Modes
SCALE OPERATING MODES The next few pages cover the operation modes that are built into the 201-257-01 and 201-257-02. The load scale can only be setup in one operating mode at a time. If the mode is changed, the calibration data will be reset to factory defaults, requiring re-calibration. -
Page 10: Estimated Steer Mode
SCALE OPERATING MODES SENSOR AVERAGE (AVG) In Sensor Average mode, a 201-257-01 or 201-257-02 will display a single weight for the drive axle group and a separate weight for the trailer axle group. The small number on the lower left of the display indicates which axle group is being shown. -
Page 11: Calibration
CALIBRATION The 201-257 series load scale must be calibrated both empty and loaded to work properly. The scale associates the air pressure in the suspension system to the weight you enter at the time of calibration. You will need to calibrate once while the vehicle is empty, and again while the vehicle is loaded for each axle group being monitored. - Page 12 HCV to refill the system. 4: Press the ON/OFF button to turn on the Right Weigh load scale. 5: Press the blue MENU button to select the proper axle group.
-
Page 13: Operating & Weighing
4: Press the ON/OFF button to turn on the Right Weigh load scale. 5: Adjust the suspension or the load itself until the Right Weigh load scale displays a weight value below your legal limit. 6: Press the blue MENU button. Repeat for all axle groups. -
Page 14: Security Pin Code
SETTING SECURITY PIN CODE Adding a security PIN will prevent tampering with the gauge. Once set, the PIN will be required to change calibration data and to change the PIN code. With the gauge off, hold both the PRESS C LOW and C HIGH buttons, then press the ON/OFF button and release all three. -
Page 15: Changing
CHANGING SECURITY PIN CODE With the gauge off, hold PRESS both the C LOW and C HIGH buttons, then press the ON/OFF button and release all three. HOLDING Press the MENU button and PRESS “-----” will display on the screen. Enter the previous PIN code. -
Page 16: Overweight Warning
OVERWEIGHT WARNING The overweight warning can be added as a visual warning to the driver to flash anytime the gauge reads above a set weight. With the scale turned on, press and hold both the C HIGH and C LOW buttons until the “C/H” symbol appears. -
Page 17: Right Weigh Bluetooth™ App
RWLS APP - General Information RIGHT WEIGH LOAD SCALES APP Go to the Google Play or App Store and download the Right Weigh Load Scales App! Print Share Gross and Menu Net Weight Tare Weight Scale Name Connection Status Details... - Page 18 (storage frequency dependent on save settings), seeing the app settings, and will take you to a support page for more information on how to contact Right Weigh, Inc. SCALE NAME Once you have connected the gauge to your phone app, the scale name will display here.
-
Page 19: Connecting To Gauge
RWLS APP - Connecting To Gauge HOLD PRESS With the gauge off, hold down the MENU button, press the ON/OFF button, and release both simultaneously. PRESS Press the MENU button twice to see the unique identifier. Once the app has been downloaded and opened, you will see the home screen with no gauge connected to it and a gross weight of “0”. - Page 20 RWLS APP - Connecting to Gauge On the app home screen, press the “Add Gauge” button and choose PRESS whether or not the gauge is connected to the truck or trailer. CHOOSE SELECT Select the gauge that matches the unique identifier name from step 3 to add the gauge to your home screen.
-
Page 21: Details Screen
RWLS APP - Details Screen To get to the scale details screen, press on “Details” from the home page. This page will display information for that specific scale and includes the ability to rename the scale. DELETE SCALE FROM APP RENAME THE SCALE To re-name the scale, select the pencil icon. -
Page 22: Settings Screen
RWLS APP - Settings Screen To get to the settings screen, press the menu button on the top left of the home screen and navigate to “Settings” CHANGING UNITS Change the units to either pounds (LB) or kilograms (KG) SET WARNING AND OVERLOAD WEIGHTS Set warning and overload weight limit defaults... -
Page 23: Troubleshooting
If the HCV is not functioning correctly, the air pressure applied to the suspension system could be inconsistent and/or erratic. To test for an HCV problem, acquire a weight reading from the Right Weigh gauge and write it down (refer to gauge operating instructions for proper procedure). Drive the vehicle around the block and return to the same location. - Page 24 TROUBLESHOOTING APP WON’T CONNECT TO THE GAUGE Scale is connected to a constant power source: The gauge should never be connected to a constant power source, rewire so that it is connected to a switched power source. If the gauge is powered too long it can stop transmitting a Bluetooth signal and may need to be disconnected and reconnected to work again.
-
Page 25: Appendix A - Additional Parts
The following is a list of additional parts needed for air line installation. This list is just a suggestion and may not be all of the parts needed for your specific vehicle. Check with your Right Weigh dealer for optional installation kits. -
Page 26: Appendix B - Wiring Insulation
APPENDIX B It is very important that all wiring connections be made watertight. Connections which are not watertight can allow moisture to travel through the individual strands of the wires and make it’s way into the scale, causing permanent damage to the electronics. Heat shrinkable splices are included in the 201-SK Installation Kit. - Page 27 NOTES...
- Page 28 NOTES...
- Page 29 NOTES...
-
Page 30: Warranty Statement
Products manufactured or sold by Right Weigh, Inc. are warrantied to be free from significant defects in material and workmanship 3 years from date of purchase. During this time, and within the boundaries set forth in this warranty statement, Right Weigh, Inc. -
Page 31: Return Policy & Repairs
Right Weigh, Inc. will return the product at its expense via a shipping method (carrier to be at sole discretion of Right Weigh, Inc.) equal to or faster than the method used by the customer. Products or parts thereof not covered by warranty will be repaired or replaced at customer expense upon authorization by the customer. - Page 32 For additional support contact: United States and Canada: Right Weigh, Inc. (503) 628-0838 (888) 818-2058 - Toll Free (USA ONLY) www.rwls.com support@rwls.com Australia and New Zealand: Smart Truck Solutions +61 418 622840 rightweigh.com.au ©2015-2020 Right Weigh, Inc. All rights reserved.
