The 21600, 21700 and 21800 appliances have a default 16GB memory
configuration with eight 2GB memory DIMMs.
To upgrade to 32GB, remove all DIMMs and replace with eight 4GB

DIMMs
To upgrade to 64GB, remove all DIMMs and replace with eight 8GB

DIMMs

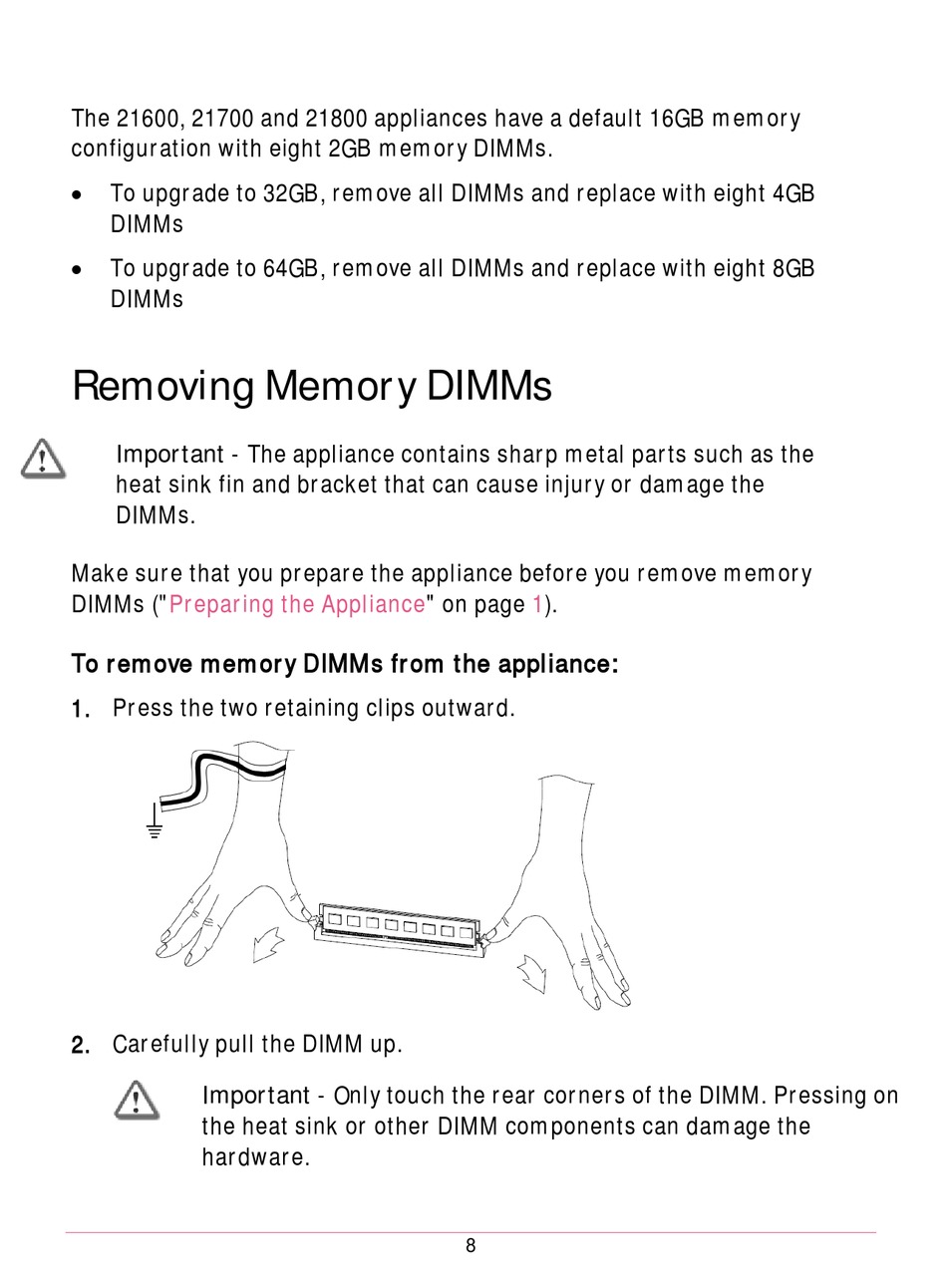

Removing Memory DIMMs

Important - The appliance contains sharp metal parts such as the
heat sink fin and bracket that can cause injury or damage the
DIMMs.
Make sure that you prepare the appliance before you remove memory
DIMMs ("Preparing the
To remove memory DIMMs from the appliance:
1. Press the two retaining clips outward.
2. Carefully pull the DIMM up.
Important - Only touch the rear corners of the DIMM. Pressing on
the heat sink or other DIMM components can damage the
hardware.
Appliance" on page 1).
