27 July 2020

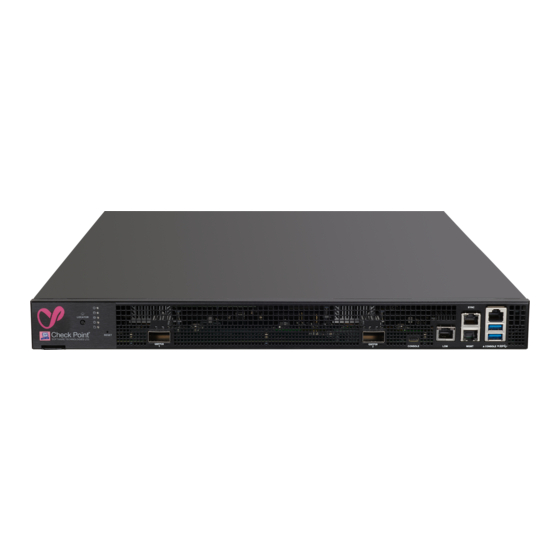

16000, 26000, AND 28000
APPLIANCES
REPLACING MEMORY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 16000 and is the answer not in the manual?

Questions and answers

Related Manuals for Check Point 16000

Summary of Contents for Check Point 16000

  • Page 1 27 July 2020 16000, 26000, AND 28000 APPLIANCES REPLACING MEMORY...
  • Page 2 Check Point. While every precaution has been taken in the preparation of this book, Check Point assumes no responsibility for errors or omissions. This publication and features described herein are subject to change without notice.
  • Page 3 Latest Version of this Document document in PDF format Download the latest version of this Feedback Check Point is engaged in a continuous effort to improve its documentation. Please help us by sending your comments Revision History Date Description...

  • Page 4: Table Of Contents

    Table of Contents Table of Contents 16000, 26000, and 28000 Appliances Installing and Removing Memory Preparing the Appliance About DIMM Sockets 16000 Base Appliance DIMM Configuration 16000 Turbo/Plus and 16200 Plus Appliance DIMM Configuration 16200 Base Appliance DIMM Configuration 26000 Base Appliance DIMM Configuration...

  • Page 5: 16000, 26000, And 28000 Appliances Installing And Removing Memory

    16000, 26000, and 28000 Appliances Installing and Removing Memory 16000, 26000, and 28000 Appliances Installing and Removing Memory Security Appliance In This Document 16600 Hyperscale Security Appliances (1U) 16600HS 28600 Hyperscale Security Appliances (1U) 28600HS 16000 Base/Plus/Turbo Security Appliances (2U)
  • Page 6 We recommend that you use the grounding wrist strap that is included in the memory kit. The grounding plug on the rear of the appliance provides a chassis grounding point. Memory Kit Contents Installing and Removing Memory in Check Point 16000, 26000, and Installation guide - 28000 Security Appliances...
  • Page 7 2. Pull the top cover back in the direction of the arrows. 3. Pull the cover up to remove it completely. The 26000 appliance is shown above. Removal of the top cover is the same in the 16000 and 28000 appliances.

  • Page 8: About Dimm Sockets

    16000, 26000, and 28000 Appliances Installing and Removing Memory About DIMM Sockets Item Description Appliance front panel Appliance rear panel CPU1 DIMM sockets CPU0 DIMM sockets 16000, 26000, and 28000 Appliances Replacing Memory   |   8...
  • Page 9 16000, 26000, and 28000 Appliances Installing and Removing Memory The memory sockets are colored black and blue. In the appliance configuration diagrams note that: The view shown is always from the top The front panel of the appliance is always at the bottom of the diagram...

  • Page 10: 16000 Base Appliance Dimm Configuration

    16000, 26000, and 28000 Appliances Installing and Removing Memory 16000 Base Appliance DIMM Configuration The 16000 Base appliance has a default memory configuration of 32 GB: 4 x 8GB. You can upgrade to 64GB or 128GB. Use the applicable upgrade procedure below.
  • Page 11 In socket numbers 2, 3, 4, 5, 6, 7, 8, 9, 12, 13, 14, 15, DIMMs 16, 17, 18, and 19 128GB Upgraded Configuration Top View (front panel of the 16000 Base appliance is at the bottom of the diagram) 16000, 26000, and 28000 Appliances Replacing Memory   |   11...

  • Page 12: 16000 Turbo/Plus And 16200 Plus Appliance Dimm Configuration

    The 16000 Turbo/Plus and 16200 Plus appliance have a default memory configuration of 64GB: 8 x 8GB. You can upgrade to 128GB. 64GB Default Configuration Top View (front panel of the 16000 Turbo/Plus or 16200 Plus appliance is at the bottom of the diagram) upgrade Procedure Slots DIMMs...

  • Page 13: 16200 Base Appliance Dimm Configuration

    16000, 26000, and 28000 Appliances Installing and Removing Memory 16200 Base Appliance DIMM Configuration The 16200 Base appliance has a default memory configuration of 48 GB: 6 x 8GB. You can upgrade to 64GB or 128GB. Use the applicable upgrade procedure below.
  • Page 14 16000, 26000, and 28000 Appliances Installing and Removing Memory upgrade Procedure Slots DIMMs 128GB 16 x Install sixteen 8GB In socket numbers 2, 3, 4, 5, 6, 7, 8, 9, 12, 13, 14, 15, DIMMs 16, 17, 18 and 19...

  • Page 15: 26000 Base Appliance Dimm Configuration

    16000, 26000, and 28000 Appliances Installing and Removing Memory 26000 Base Appliance DIMM Configuration The 26000 Base appliance has a default memory configuration of 48GB: 6 x 8GB. You can upgrade to 96GB or 128GB. Use the applicable upgrade procedure below.
  • Page 16 16000, 26000, and 28000 Appliances Installing and Removing Memory upgrade Procedure Slots DIMMs 128GB 16 x Install sixteen 8GB In socket numbers 2, 3, 4, 5, 6, 7, 8, 9, 12, 13, 14, 15, DIMMs 16, 17, 18, and 19...

  • Page 17: 26000 Plus/Turbo And 28000 Plus Appliance Dimm Configuration

    16000, 26000, and 28000 Appliances Installing and Removing Memory 26000 Plus/Turbo and 28000 Plus Appliance DIMM Configuration The 26000 Plus/Turbo and 28000 Plus appliances have a default memory configuration of 96GB: 12 x 8GB. You can upgrade to 128GB. 96GB Default Configuration...

  • Page 18: 28000 Base Appliance Dimm Configuration

    16000, 26000, and 28000 Appliances Installing and Removing Memory 28000 Base Appliance DIMM Configuration The 28000 Base appliance has a default memory configuration of 64GB: 8 x 8GB. You can upgrade to 96GB or 128GB. Use the applicable upgrade procedure below.
  • Page 19 16000, 26000, and 28000 Appliances Installing and Removing Memory upgrade Procedure Slots DIMMs 128GB 16 x Install sixteen 8GB In socket numbers 2, 3, 4, 5, 6, 7, 8, 9, 12, 13, 14, 15, DIMMs 16, 17, 18, and 19...

  • Page 20: 16600Hs/28600Hs Appliance Dimm Configuration

    16000, 26000, and 28000 Appliances Installing and Removing Memory 16600HS/28600HS Appliance DIMM Configuration The 16600HS appliance has a memory configuration of 128GB: 8 x 16GB. The 28600HS appliance has a memory configuration of 192GB: 12 x 16GB. If necessary, you can remove a faulty DIMM and replace it with a new one.

  • Page 21: Installing Dimms

    16000, 26000, and 28000 Appliances Installing and Removing Memory Important - Only touch the rear corners of the DIMM. Pressing on the heat sink or other DIMM components can damage the hardware. If necessary, pull one end of the DIMM, then the other, to gradually release it from the contact pins.
  • Page 22 16000, 26000, and 28000 Appliances Installing and Removing Memory 3. Align the new DIMM above the socket. The top of the DIMM is smooth. The bottom edge has two different-length sets of contacts, which connect to the slots on the socket.

  • Page 23: Verifying The Memory Configuration

    16000, 26000, and 28000 Appliances Installing and Removing Memory Only touch the top corners of the DIMM. Pressing on the heat sink or other DIMM components can damage the hardware. DIMMs are not symmetrical. Use the hole in the DIMM to guide the DIMM into the raised tooth in the slot.
  • Page 24 16000, 26000, and 28000 Appliances Installing and Removing Memory Sample output for a 26000 Base appliance with 48GB of memory: Note - The amount of installed memory is shown in the row named Mem under the column named total .
