Mounting 21000 Appliances with
Telescoping Rails
705988
Protected
2014

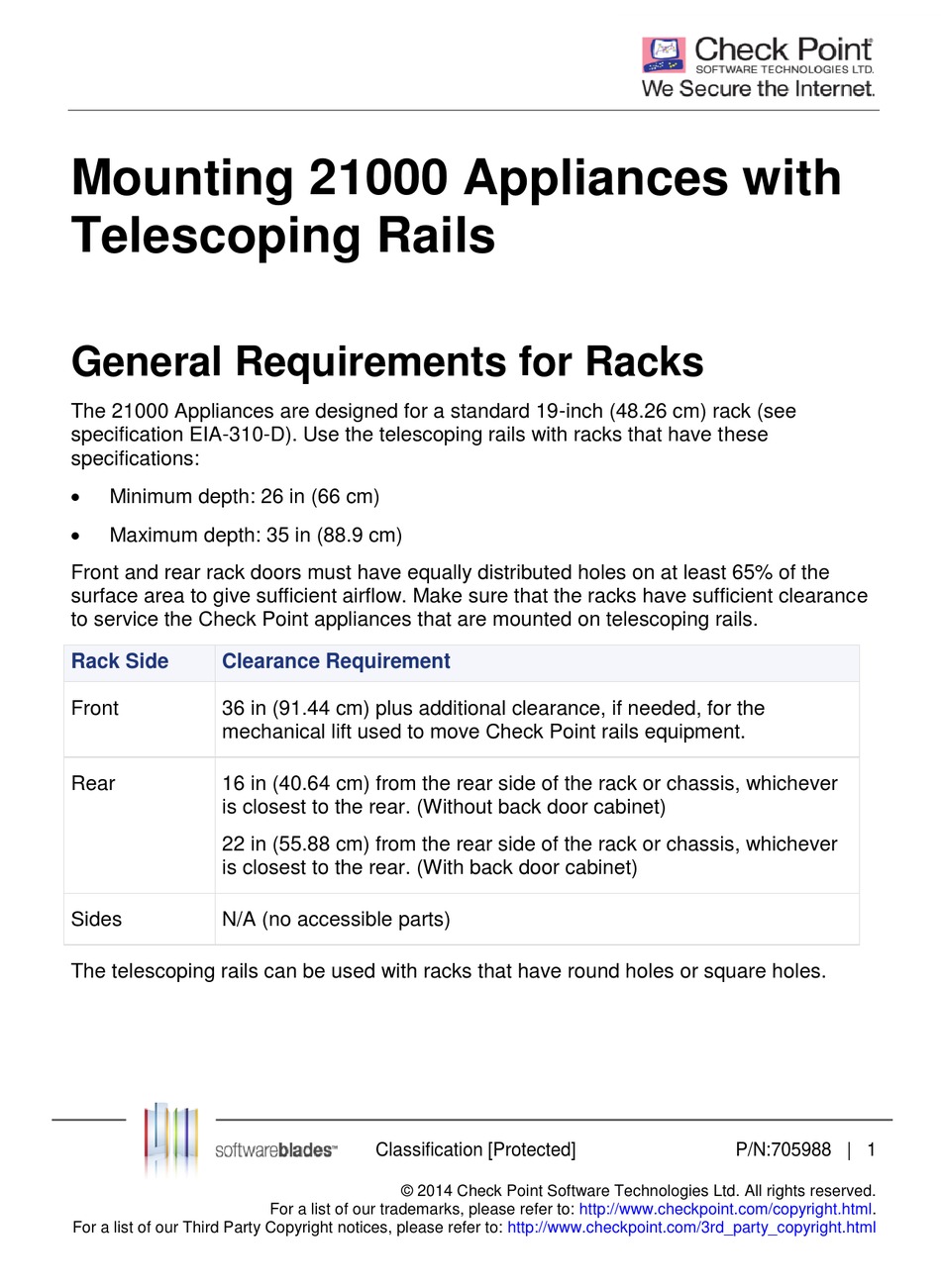

General Requirements for Racks

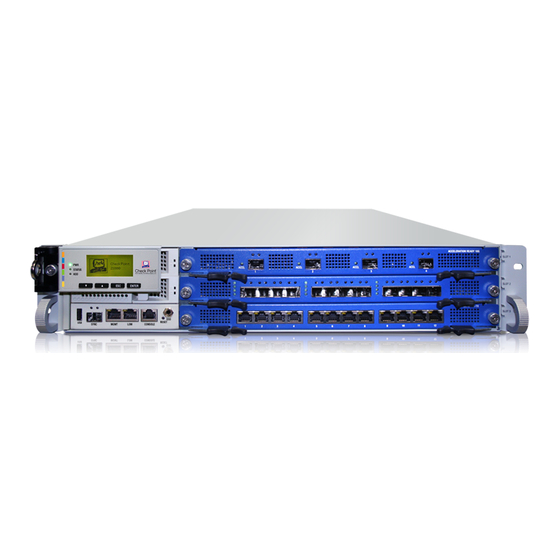

The 21000 Appliances are designed for a standard 19-inch (48.26 cm) rack (see
specification EIA-310-D). Use the telescoping rails with racks that have these
specifications:
Minimum depth: 26 in (66 cm)
Maximum depth: 35 in (88.9 cm)
Front and rear rack doors must have equally distributed holes on at least 65% of the
surface area to give sufficient airflow. Make sure that the racks have sufficient clearance
to service the Check Point appliances that are mounted on telescoping rails.
Rack Side
Clearance Requirement
Front
36 in (91.44 cm) plus additional clearance, if needed, for the
mechanical lift used to move Check Point rails equipment.
Rear
16 in (40.64 cm) from the rear side of the rack or chassis, whichever
is closest to the rear. (Without back door cabinet)
22 in (55.88 cm) from the rear side of the rack or chassis, whichever
is closest to the rear. (With back door cabinet)
Sides
N/A (no accessible parts)
The telescoping rails can be used with racks that have round holes or square holes.
For a list of our Third Party Copyright notices, please refer to:
Classification [Protected]
© 2014 Check Point Software Technologies Ltd. All rights reserved.
For a list of our trademarks, please refer to: http://www.checkpoint.com/copyright.html.
http://www.checkpoint.com/3rd_party_copyright.html
P/N:705988 | 1
Advertisement
Related Manuals for Check Point 21000
Summary of Contents for Check Point 21000
- Page 1 Telescoping Rails 705988 Protected 2014 General Requirements for Racks The 21000 Appliances are designed for a standard 19-inch (48.26 cm) rack (see specification EIA-310-D). Use the telescoping rails with racks that have these specifications: Minimum depth: 26 in (66 cm) ...
- Page 2 Square holes Round holes that are larger than the supplied large round-head screws Appliance Physical Specifications These are the physical specifications of the Check Point appliance models that can be mounted in the telescoping rails. Appliance Width Depth...
- Page 3 Item Hardware Qty. Use Description Rack rail Attaches to the front of the rack. Rack rail (rear) Appliance rail Attaches to the sides of the appliance. Appliance rail (rear) Small flat-head Attaches the appliance rails to the appliance. screws Large flat-head Attaches the rack rails and the ear brackets of screws the appliance to the racks.
- Page 4 Attaching the Appliance Rails Disconnect the appliance rail and the rack rail and use four small screws to attach each appliance rail to the sides of the appliance. To attach the appliance rails: On the appliance rail, push the front release clip and remove the appliance rail from the rack rail.
-
Page 5: Attaching The Rack Rails
Attaching the Rack Rails Attach the rack rails and screw plate to the rack. Make sure that you have these pieces ready: 2 Rack rails 8 Large round-head screws 2 Front screw plates (6 holes) 2 Rear screw plates (3 holes) Item Description Front screw plate (6 holes) -
Page 6: Installing The Appliance
To attach the rack rails to the rack: Put the front flange of the rack rail on the front face of the rack post. For square hole racks and round holes that are larger than the large round-head screws, place the screw plate behind the rack post at the same location as the front flange. - Page 7 Push the front release clips and move the appliance into the rack. To secure the appliance to the rack: Use two screws to attach the right ear bracket to the front face of the rack. Use one screw to attach lower part of the left ear bracket to the front face of the rack.
-
Page 8: Removing The Appliance
Removing the Appliance Unlock the telescoping rails to remove the appliance from the rack. Important - A 2U appliance is heavy and two people are required to hold and remove the appliance from the rack to prevent personal injury and damage to the appliance.
