Digital View SVX-1920-PRO Instructions Manual

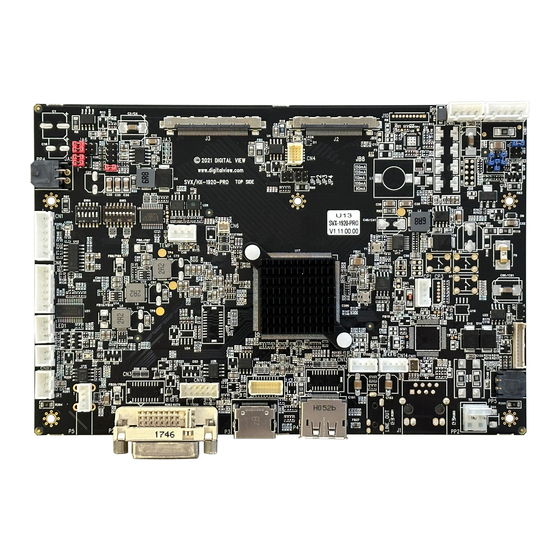

Dvi-i, disport port, hdmi interface controller for tft panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DVI-I, DISPORT PORT, HDMI INTERFACE CONTROLLER
CONTENTS
Page: 2. Introduction, How to Proceed, Usage Note, Disclaimer
3. System design - Diagram of a suggested system
4. Assembly notes - Important information about system elements
6. Connection & Operation - How to use the controller
10. Connectors, pinouts & jumpers - Essential connection information
27. Appendix I - Supported graphics modes table
42. Warranty, Caution & Limitation of Liability, Trademarks
It is essential that these instructions are read and understood before connecting or
powering up this controller.
Specifications subject to change without notice
© Digital View Ltd - Rev 1.00 (SVX-1920-PRO_manual.doc)
FOR TFT PANEL
Model: SVX-1920-PRO
Part number : 41773002X-3 or up
INSTRUCTIONS
Page 1 of 44

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVX-1920-PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digital View SVX-1920-PRO

Summary of Contents for Digital View SVX-1920-PRO

  • Page 1: Table Of Contents

    43. Contact details 44. Revision History It is essential that these instructions are read and understood before connecting or powering up this controller. Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 1 of 44...
  • Page 2 Introduction Designed for LCD monitor and other flat panel display applications, the SVX-1920-PRO is a feature rich interface controller for : TFT (active matrix) LCD panels of 1920x1200, 1920x1080, 1920x480, 1680x1050, 1600x1200, 1600x900, 1440x900, 1366x768, 1280x1024, 1280x800, 1280x768 1024x768, 1024x600, 800x600, 800x480 and 640x480 resolutions.
  • Page 3 SYSTEM DESIGN A typical LCD based display system utilizing this controller is likely to comprise the following: Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 3 of 44...
  • Page 4 21. Audio Line out (Stereo) output from HDMI or Displayport : The CN14 port supports Stereo audio line out from the HDMI or Displayport audio source inputted. The audio output will follow the HDMI audio source. Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 4 of 44...
  • Page 5 Refer to graphics modes table in specifications section for supported modes. • Non-interlaced & interlaced video input is acceptable. • IMPORTANT: Please read the Application Notes section for more information. Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 5 of 44...
  • Page 6 Once the system has been connected and switched on there are a number of functions available to adjust the display image as summarized in the following sections. The settings chosen will be saved for each mode independently. Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 6 of 44...
  • Page 7 P/N 426122200-3. 5 keys OSD switch mount board 5 buttons OSD switch mount board P/N 4161003700-3, matching cable P/N 426123010-3. Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 7 of 44...
  • Page 8 Fine tune the data sampling position (adjust image quality) Phase Press – or + (- + ) 0~100 Auto adjust the positions, phase, frequency Auto Adjust Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 8 of 44...
  • Page 9 Are you sure to upgrade ? No / Yes. Information Model : SVX-1920-PRO Firmware version Main resolution Pip resolution # Function in VGA mode only Firmware E1.10.00.00 or up Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 9 of 44...
  • Page 10 (Matching type : FI-RE41HL) LVDS panel signal output 2 JAE FI-RE51S-HF (Matching type : FI-RE51HL) DVI-I DVI-I connector HDMI HDMI connector Displayport Display port connector Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 10 of 44...
  • Page 11 Default 1-3 & 2-4 Factory use Default Open Panel & function selection See table 2 Panel & function selection See table 3 Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 11 of 44...
  • Page 12 ** Ensure that the backlight inverter supports 24V operation prior to connecting a 24VDC input. Because CNA1 pin 1 and CNB1 pin 2 will output 24VDC if input 24VDC via PP2 or PP5. Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 12 of 44...
  • Page 13 3-5 & 4-6 * Maximum current for 3.3V, 5V = 7A, Maximum current for 12V = 5A, Maximum current for 18V = 3.5A Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 13 of 44...
  • Page 14 JA3, JA5 & JA6 location on board : (Please pay attention to the jumper settings on JA3, JA5 & JA6 which are red in color) ! JA3, JA5 & JA6 Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 14 of 44...
  • Page 15 OFF – Enable : The output refresh rate locks to the input for 50Hz / 60Hz mode (other resolution lock the output be 60Hz. ) Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 15 of 44...
  • Page 16 1024x768. The preferred EDID resolution should be 1024x768. It should also have the capability to set the max resolution to 1920x1200. Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 16 of 44...
  • Page 17 CNA1 - Auxiliary power output: JST B4B-XH-A (Matching type : XHP-4) SYMBOL DESCRIPTION AUX 12V / 24V +12V / +24V DC, 500mA max Ground Ground AUX 5V +5V DC, 500mA max Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 17 of 44...
  • Page 18 LVDS_OUT2_B4+ Positive differential LVDS data bit B4 Ground LVDS_OUT2_A0- Negative differential LVDS data bit A0 LVDS_OUT2_A0+ Positive differential LVDS data bit A0 Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 18 of 44...
  • Page 19 LVDS_OUT1_BC- Negative LVDS clock for B channel Ground LVDS_OUT1_B2+ Positive differential LVDS data bit B2 LVDS_OUT1_B2- Negative differential LVDS data bit B2 Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 19 of 44...
  • Page 20 SCL (I²C Serial Clock for DDC) SDA (I²C Serial Data Line for DDC) CEC/GND Ground +5 V Power (max 50 mA) HPDET Hot Plug Detect Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 20 of 44...
  • Page 21 External panel power Ground PP5 – 12V/24VDC input power supply DESCRIPTION +12V / +24VDC Ground * All connectors used may use the compatible type. Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 21 of 44...

  • Page 22: Controller Dimensions

    CAUTION: Ensure adequate insulation is provided for all areas of the PCB with special attention to high voltage parts such as the inverter. Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 22 of 44...

  • Page 23: Application Notes

    This can then be matched with function controls connected to CNC1 pins 4 & 3 or 5: see table. CNC1 DESCRIPTION VR A VR WIP VR B Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 23 of 44...
  • Page 24 2.4 V 7.5 K 3.6 V 10 K 4.8 V So this circuit could provide Brightness adjust voltage ranging from 0V to 5V. Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 24 of 44...

  • Page 25: Troubleshooting

    Generally after common sense issues have been resolved we recommend step by step substitution of known working parts to isolate the problem. Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 25 of 44...

  • Page 26: Specifications

    For specific panel setup a sample of an LCD may be required (this will be returned) and a copy of the full • technical specifications for the panel from the manufacturer. Re-layout and custom development services are available. • Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 26 of 44...
  • Page 27 60Hz SX_75 1280x1024 79.976 Digital Separate Sync 75Hz SX_75 1280x1024 79.976 Sync On Green 75Hz UX_60 1600x1200 75.000 Digital Separate Sync 60Hz Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 27 of 44...
  • Page 28 1366x768 60Hz 1080i25 1400x1050 60Hz 1080p60 1440x900 60Hz 1080p59.94 1600x900 60Hz 1080p50 1600x1200 60Hz 1080p30 1680x1050 60Hz 1080p29.97 1920x1200 60Hz 1080p25 1080p24 1080p23.976 Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 28 of 44...
  • Page 29 1280x768 60Hz 1280x768 75Hz 1280x1024 60Hz 1280x1024 75Hz 1366x768 60Hz 1400x1050 60Hz 1440x900 60Hz 1600x900 60Hz 1600x1200 60Hz 1680x1050 60Hz 1920x1200 60Hz Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 29 of 44...

  • Page 30: Appendix Ii - Rs-232 Control Protocols

    The RS-232 program can be custom-made to fit for application or it can be used the serial control program, like Accessport, Telix or Serial Utility program developed by DigitalView. Please contact your local support for information. Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 30 of 44...
  • Page 31 (In PC mode only) “?” Query Sharpness* 0x8a, Set sharpness = Sharpness. nn | “+” | “-” | value/increment/decrement (Video Mode Source only) Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 31 of 44...
  • Page 32 Query "4" - Saturation “5” – inputs "9" - PIP Size “B” – No function “E” – Aspect Ratio “F” – Rotate Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 32 of 44...
  • Page 33 | “+” | “-” | value/increment/decrement “r” | “R” | Reset nn: 0x00~ 0x64 (0~100) “?” Query Default: 0x64 “m” Maximum query Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 33 of 44...
  • Page 34 420Hz : “1”,”A”,”4” 440Hz : “1”,”B”,”8” Backlight Invert 0xe7 Set On or Off “0” – Off (Default) “0” | “1” | “1” – On Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 34 of 44...
  • Page 35 “nn” = Revision number AA in Number firmware version no. “VV.YY.ZZ.AA” Reset to Factory 0xce Reset all parameters to “1” – successful. Defaults default value Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 35 of 44...
  • Page 36 0x50 0x70 0x51 0x71 0x52 0x72 0x53 0x73 0x54 0x74 0x55 0x75 0x56 0x76 0x57 0x77 0x58 0x78 0x59 0x79 0x5A 0x7A Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 36 of 44...

  • Page 37: Appendix Iii - Mapping Definition

    Appendix III – Mapping definition Definition of Mapping A : • Definition of Mapping B : • Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 37 of 44...
  • Page 38 Definition of VESA : • Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 38 of 44...
  • Page 39 Definition of JEIDA : • Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 39 of 44...

  • Page 40: Appendix Iv - Dv Remote Control Unit Work For Svx-1920V3

    Appendix IV – DV remote control unit work for SVX-1920-PRO P/N 559000106-3 : DigitalView remote control unit (without DV logo silk screen printing) BUTTON FUNCTION POWER BUTTON Soft power ON/OFF button. 1. In OSD menu, pressing "SEL UP" button to move previous level of selection.

  • Page 41: Appendix V - Pip Mix Table

    Appendix V – PIP mix table DVI-D HDMI Displayport PIP \ MAIN (P2/CNV6) (P2) (P3) (P4) VGA (P2/CNV6) DVI (P2) HDMI (P3) Displayport (P4) Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 41 of 44...
  • Page 42 The manufacturer’s liability for damages to customer or others resulting from the use of any product supplied hereunder shall in no event exceed the purchase price of said product. TRADEMARKS The following are trademarks of Digital View Ltd: Digital View •...

  • Page 43: Contact Details

    CONTACT DETAILS Digital View has offices in Asia, Europe and USA : Digital View Inc. 18440 Technology Drive Building 130 Morgan Hill, California, 95037 Tel: (1) 408-782 7773 Fax: (1) 408-782 7883 Sales: ussales@digitalview.com EUROPE Digital View Ltd. The Lake House...

  • Page 44: Revision History

    Revision History Date Rev No. Page Summary 12 July 2021 1.00 First issued Specifications subject to change without notice © Digital View Ltd – Rev 1.00 (SVX-1920-PRO_manual.doc) Page 44 of 44...
