It is essential that these instructions are read and understood before connecting or
powering up this controller.

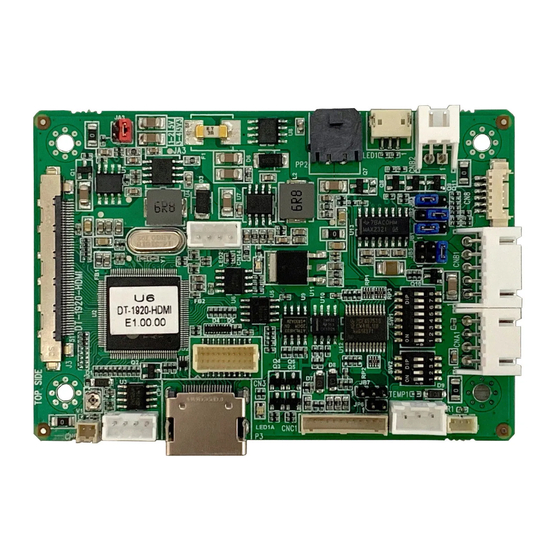

HDMI INTERFACE CONTROLLER
FOR TFT PANEL
Model: DT-1920-HDMI
Part number : P/N 4177000X-3 or up
INSTRUCTIONS
