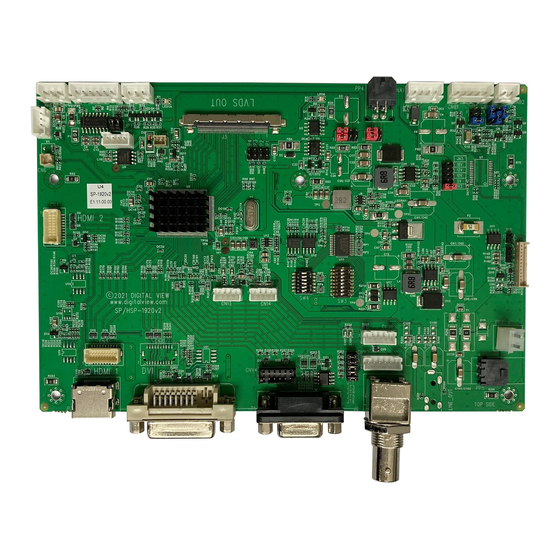

PC, DVI, HDMI, VIDEO, Component INTERFACE CONTROLLER
CONTENTS
Page: 2. Introduction, How to Proceed, Usage Note, Disclaimer
3. System design - Diagram of a suggested system
4. Assembly notes - Important information about system elements
6. Connection & Operation - How to use the controller
10. Connectors, pinouts & jumpers - Essential connection information
28. Appendix I - Supported graphics modes table
45. Warranty, Caution & Limitation of Liability, Trademarks
It is essential that these instructions are read and understood before connecting or
powering up this controller.
Specifications subject to change without notice
© Digital View Ltd - Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc)
FOR TFT PANEL
Model: SP-1920v2
Part number : 4178100XX-3 or up
Preliminary
INSTRUCTIONS
1 of 47
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-1920v2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digital View SP-1920v2

Summary of Contents for Digital View SP-1920v2

  • Page 1: Table Of Contents

    It is essential that these instructions are read and understood before connecting or powering up this controller. Specifications subject to change without notice 1 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 2 Introduction Designed for LCD monitor and other flat panel display applications, the SP-1920v2 is a feature rich interface controller for : TFT (active matrix) LCD panels of up to 1920x1200 resolutions. Support true 10 bits panel. Computer video signals of VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA standard.
  • Page 3 SYSTEM DESIGN A typical LCD based display system utilizing this controller is likely to comprise the following: Specifications subject to change without notice 3 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 4 CNV1 connector. 18. Component video input : Plug the component video input cable P/N 426000600-3 on CNV2 connector Specifications subject to change without notice 4 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 5 Non-interlaced & interlaced video input is acceptable. • IMPORTANT: Please read the Application Notes section for more information. Specifications subject to change without notice 5 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 6 The settings chosen will be saved for each mode independently. Specifications subject to change without notice 6 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 7 5 keys OSD switch mount board 5 buttons OSD switch mount board P/N 4161003700-3, matching cable P/N 426123010-3. Specifications subject to change without notice 7 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 8 Input Source 4 Select the input video signal Component HDMI1 HDMI2 Composite * Function in Composite mode only # Function in VGA mode only Specifications subject to change without notice 8 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 9 Volume [0~100] : Default 50 : Increase/decrease volume level, total: 100 steps Effective on Firmware E1.11.00.00 or up Specifications subject to change without notice 9 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 10 VGA analog input DB-15 way high density 3 row DVI-D DVI-D connector HDMI 1 input connector HDMI connector Specifications subject to change without notice 10 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 11 Close = composite Cr/Pr input is terminated with 75Ω Panel & function selection See table 2 Panel & function selection See table 3 Specifications subject to change without notice 11 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 12 Because CNA1 pin 1 and CNB1 pin 2 will output 24VDC if input 24VDC via PP2/PP3 or PP5. Specifications subject to change without notice 12 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 13 * Maximum current for 3.3V, 5V = 7A, Maximum current for 12V = 5A, Maximum current for 18V = 3.5A Specifications subject to change without notice 13 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 14 JA3, JA5 & JA6 location on board : (Please pay attention to the jumper settings on JA3, JA5 & JA6 which are red in color) JA6 & JA5 Specifications subject to change without notice 14 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 15 Pos #5 Pos #6 Pos #7 Description WUXGA UXGA SXGA WXGA SVGA WVGA / Others Pos. #8 Reserved Specifications subject to change without notice 15 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 16 1024x768. The preferred EDID resolution should be 1024x768. It should also have the capability to set the max resolution to 1920x1200. Specifications subject to change without notice 16 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 17 CN11 – SPDIF audio output connector : JST B3B-PH-K compatible (Matching type : PHR-3) SYMBOL DESCRIPTION SPDIF SPDIF Digital audio output Ground Specifications subject to change without notice 17 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 18 Luma in / Green in Ground A_Pb1 Pb in / Blue in Ground A_Pr1 Pr in / Red in Ground Specifications subject to change without notice 18 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 19 Negative LVDS clock for B channel Ground LVDS_OUT1_B2+ Positive differential LVDS data bit B2 LVDS_OUT1_B2- Negative differential LVDS data bit B2 Specifications subject to change without notice 19 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 20 No connection Digital Ground TMDS Clock+ /RXC TMDS Clock- Green Blue HS_IN Analog horizontal sync Ground No connection Specifications subject to change without notice 20 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 21 PP5 – 12V/24VDC input power supply - Molex 43650-0200 compatible (Mating type : Molex 43645-0200 or compatible) DESCRIPTION +12V / +24VDC Ground Specifications subject to change without notice 21 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...

  • Page 22: Controller Dimensions

    CAUTION: Ensure adequate insulation is provided for all areas of the PCB with special attention to high voltage parts such as the inverter. Specifications subject to change without notice 22 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...

  • Page 23: Application Notes

    This can then be matched with function controls connected to CNC1 pins 4 & 3 or 5: see table. CNC1 DESCRIPTION VR A VR WIP VR B Specifications subject to change without notice 23 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 24 10 K 4.8 V So this circuit could provide Brightness adjust voltage ranging from 0V to 5V. Specifications subject to change without notice 24 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...

  • Page 25: Troubleshooting

    Generally after common sense issues have been resolved we recommend step by step substitution of known working parts to isolate the problem. Specifications subject to change without notice 25 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...

  • Page 26: Specifications

    • technical specifications for the panel from the manufacturer. • Re-layout and custom development services are available. Specifications subject to change without notice 26 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 27 # - Equipment used : Leo Bodnar Electronics Video Signal Input Lag Tester. Controller input port measured based on HDMI port and connect with a Samsung LTM230HT10 (1920x1080) panel. Specifications subject to change without notice 27 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 28 60Hz vertical refresh rate. To support on higher refresh rate over 60Hz, the LCD panel may not support. Specifications subject to change without notice 28 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 29 1680x1050 75Hz 1920x1080 60Hz 1920x1200 60Hz COMPOSITE INPUT PORT : Mode NTSC-M NTSC-J NTSC-4.43 PAL-BDGHI PAL-M PAL-N PAL-60 Specifications subject to change without notice 29 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 30 1440x900 75Hz 1600x1200 60Hz 1600x1200 65Hz 1600x1200 70Hz 1600x1200 75Hz 1680x1050 60Hz 1680x1050 75Hz 1920x1080 60Hz 1920x1200 60Hz Specifications subject to change without notice 30 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...

  • Page 31: Appendix Ii - Rs-232 Control Protocols

    - reference by Input main “o”, ss, Query, Source select(0x98) Range : “0””0”-“6””4” Default : “3””2” Specifications subject to change without notice 31 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 32 | “+” | “-“ | Value/increment/decrement pixels) “?” Query Scaling Mode 0x8c, Set graphic image scaling mode Image expansion on/off. Specifications subject to change without notice 32 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 33 “r” | “R” | Reset “3” – Contrast. “?” Query “4” – Saturation. “5” – Input source. Specifications subject to change without notice 33 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 34 100Hz : “0””0” ~ “6””4” “?” Query 120Hz : “0””0” ~ “6”"4” 140Hz : “0””0” ~ “6””4” Specifications subject to change without notice 34 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 35 280Hz : "0""0" ~ "3""2" 300Hz : "0""0" ~ "3""2" 320Hz : "0""0" ~ "3""2" 340Hz : "0""0" ~ "3""0" Specifications subject to change without notice 35 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 36 = 2-byte ascii-coded hex number, e.g., parameter value of 0x1e is represented by “1”, “e” | “E” (0x31, 0x6e|0x4e). Specifications subject to change without notice 36 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 37 0x72 0x53 0x73 0x54 0x74 0x55 0x75 0x56 0x76 0x57 0x77 0x58 0x78 0x59 0x79 0x5A 0x7A Specifications subject to change without notice 37 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...

  • Page 38: Appendix Iii - Mapping Definition

    Appendix III – Mapping definition • Definition of Mapping A : Specifications subject to change without notice 38 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 39 • Definition of Mapping B : Specifications subject to change without notice 39 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 40 • Definition of VESA : Specifications subject to change without notice 40 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
  • Page 41 • Definition of JEIDA : Specifications subject to change without notice 41 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...

  • Page 42: Appendix Iv - Dv Remote Control Unit Work For Sp-1920V2

    Press this button in the non OSD menu display mode to select HDMI 1 source. Composite Press this button in the non OSD menu display mode to select Composite source. Specifications subject to change without notice 42 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...

  • Page 43: Appendix V - Light Sensor Function Work For Sp-1920V2

    Use of the light sensor board P/N 416021310/416021330-3 and light sensor cable P/N 426305900-3 connect to the SP-1920v2 via CN6 connector or use the light sensor cable P/N 426321940-3 as shown below : Digital View provides a user-friendly software program (TCP-IP Serial Utility V1.16 or later...

  • Page 44: Appendix Vi - Media Failover Function

    Appendix VI – Media Failover Function SP-1920v2 has a capability to play media file via USB that this feature called 'Media failover' option. It means when the video input source is no signal / loss of sync on a designated input, the built-in media player display the video content stored in the USB memory stick on the display automatically.
  • Page 45 TRADEMARKS The following are trademarks of Digital View Ltd: Digital View • SP-1920v2 • Specifications subject to change without notice 45 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...

  • Page 46: Contact Details

    6 How Ming Street Kwun Tong Hong Kong Tel: (852) 2861 3615 Fax: (852) 2520 2987 Sales: hksales@digitalview.com WEBSITE www.digitalview.com Specifications subject to change without notice 46 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...

  • Page 47: Revision History

    Revision History Date Rev No. Page Summary 26 Aug 2022 1.00 First issued - Preliminary Specifications subject to change without notice 47 of 47 © Digital View Ltd – Doc Ver 1.00 : 26 Aug, 2022 (SP-1920v2_manual.doc) Page...
