Adjusting the angle-of-rotation sensor

For adjustable devices the adjustment re-

quires to apply the lower limit pressure re-

spectively the upper limit pressure to the de-

vice. Bring the enclosed or another magnet

in the alignment position (see picture) to ad-

just accordingly. After approx. 2 seconds a

light signal in the scale acknowledges the

adjustment of the measurement range

begin and/or the adjusted range. The ad-

justment is possible within a tolerance of ap-

prox. ± 5 % F.S. Any settings that differ from

this will not be accepted.

4.2

Remove the protective cap or protective wrapping from the diaphragm only just before in-

stallation to prevent contamination or damage.

The diaphragm must not be touched. Do not place the device on its diaphragm. Even small

scratches or deformations may negatively influence the zero point or other characteristics

of the device.

Pressure transmitter and diaphragm seal are a closed system that must not be separated.

You can find further information about diaphragm seals in the document TA_031 on www.la-

bom.com.

4.3

When properly installed in accordance with applicable specifications, this device is mainte-

nance-free. However, we recommend an annual recalibration of the device.

BA_032_en_2021-11_10.01 Pressure transmitter with bourdon tube

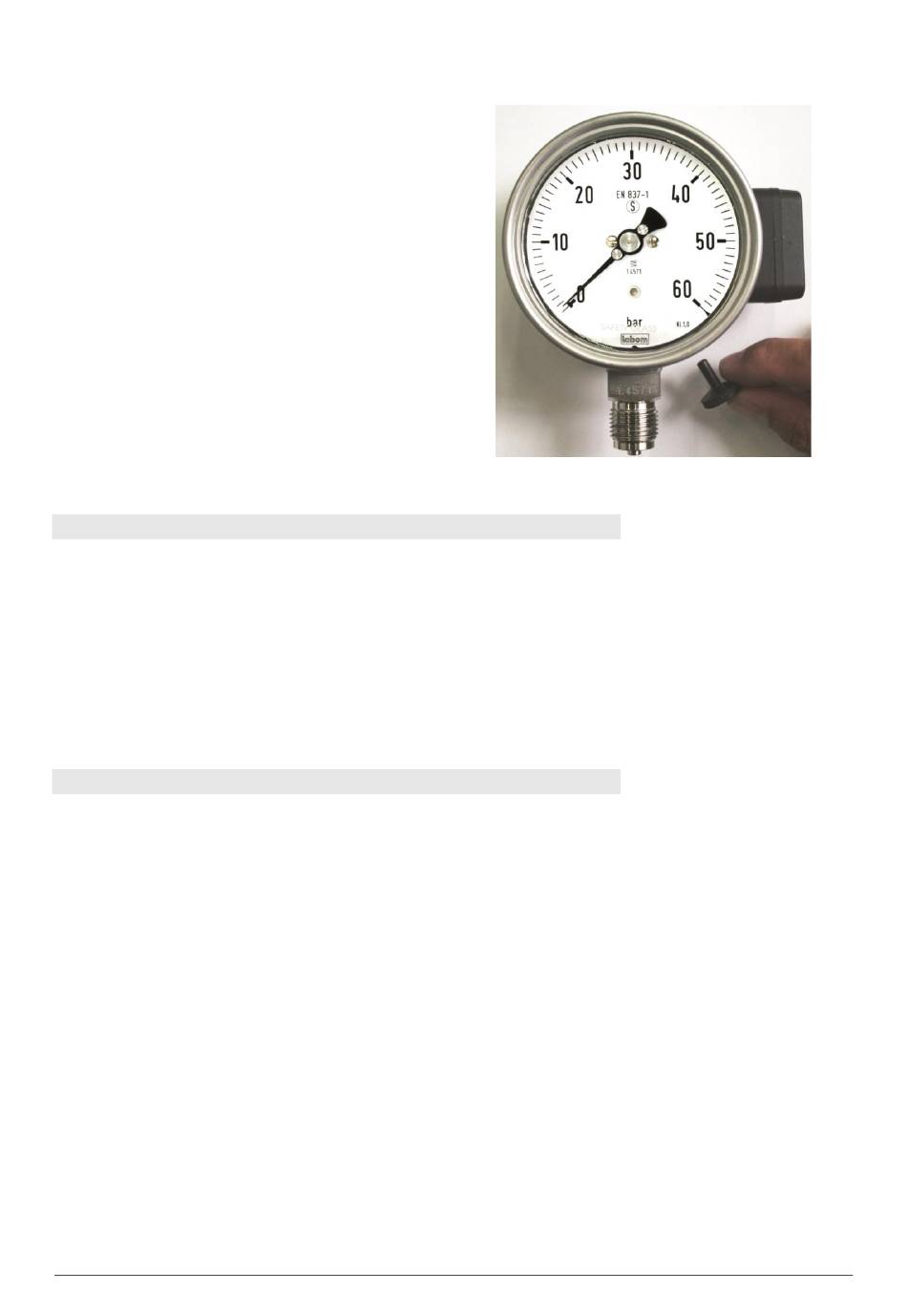

Figure 2: Alignment position
