4.4

Printer (NX-700B only)

Prepare the printer by locally as shown below for the NX-700B.
-8 bit parallel Centronics interface, or serial RS-232C
-Serial printer
-Baud Rate: 9600 bps
-Character length: 8 bit
-Parity: No
-Flow control: Xon/Xoff
-32 characters/line or more

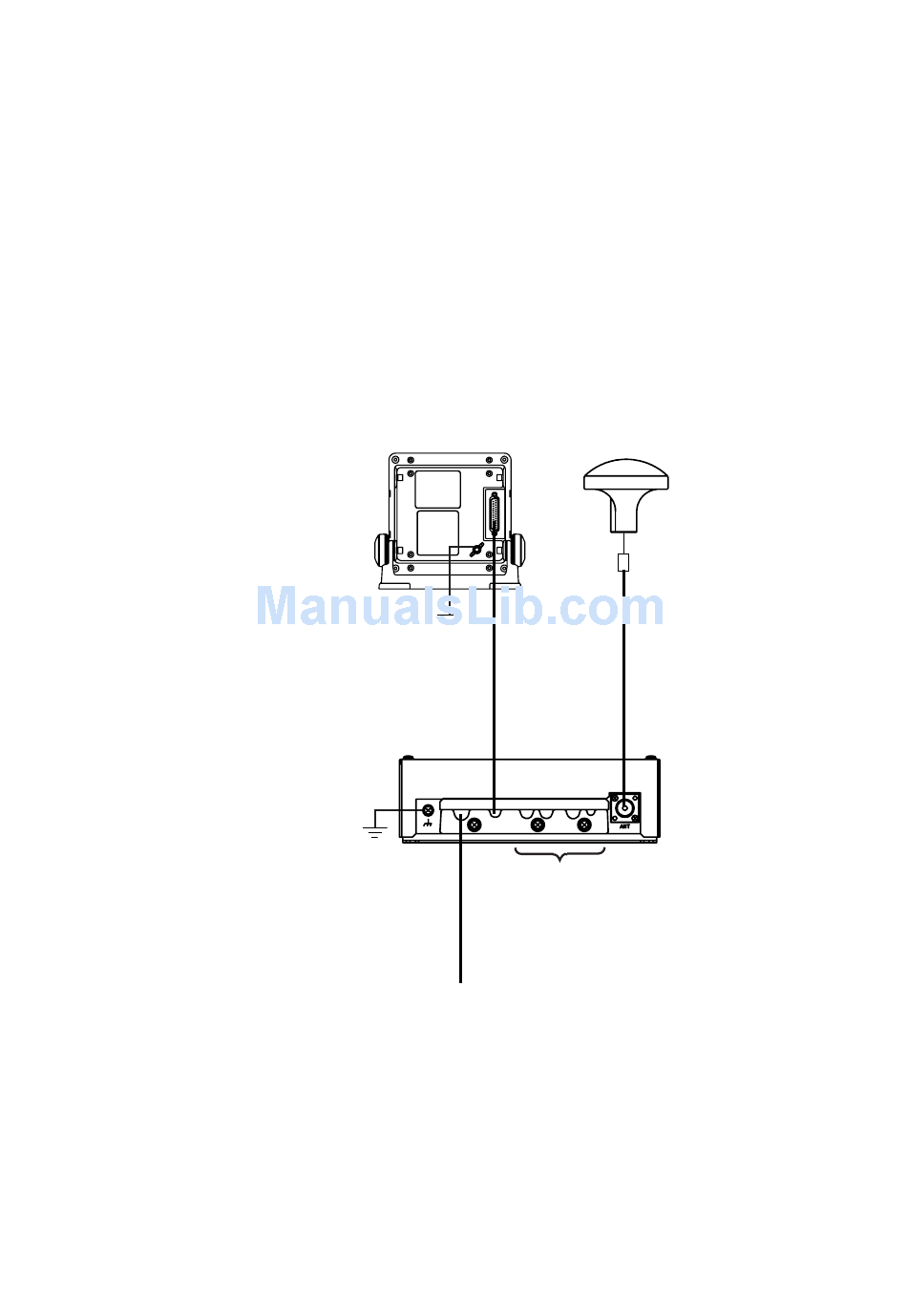

4.5

Wiring

IV-1.25sq (Local supply)
Ground wire
IV-1.25sq (Local supply)
Display unit
NX-700A or B
Ground wire
DSUB25P-DSUB25P cable
(3m)
Power cable
DPYC-2.5
(Local supply)
12-24VDC
Antenna ubit
NX-7H
Antenna cable
04S4168 10/20/30/40/50m
Receiver unit
NX-7001
-INS or Navigator
-Printer (for NX-700B only)
-Alarm
4. INSTALLATION
4-5
