Step 5

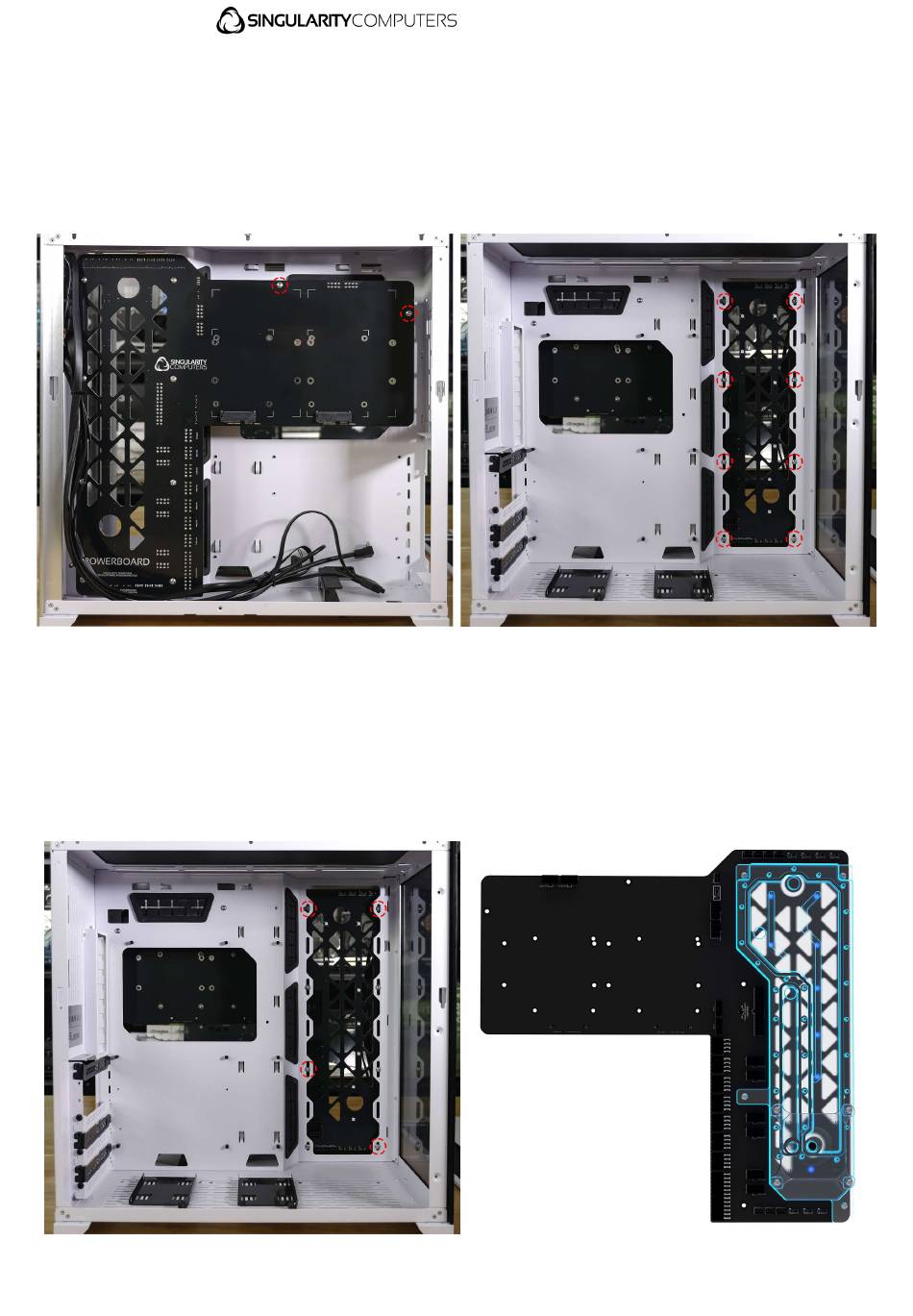

Attach the PowerBoard to the case using 10x M4 x 6mm Button Head Hex Stainless Steel
Fasteners in the positions marked in the images below. The Front IO cables will need to be
managed so that the PowerBoard can easily fit into position, they may need to be cable tied back
out of the way.
Step 6
Optionally you can install the SC PowerBoard PC-O11D Distribution Plate which is available
separately. To install it you need to first remove the fasteners marked in image below. Then
install onto the same marked mounting holes using the 4x M4 x 12mm Button Head Hex Stainless
Steel which came included with the SC PowerBoard PC-O11D. (Do not over tighten fasteners on
acrylic).
