SINGULARITY COMPUTERS PowerBoard PC-011D Installation Manual page 6

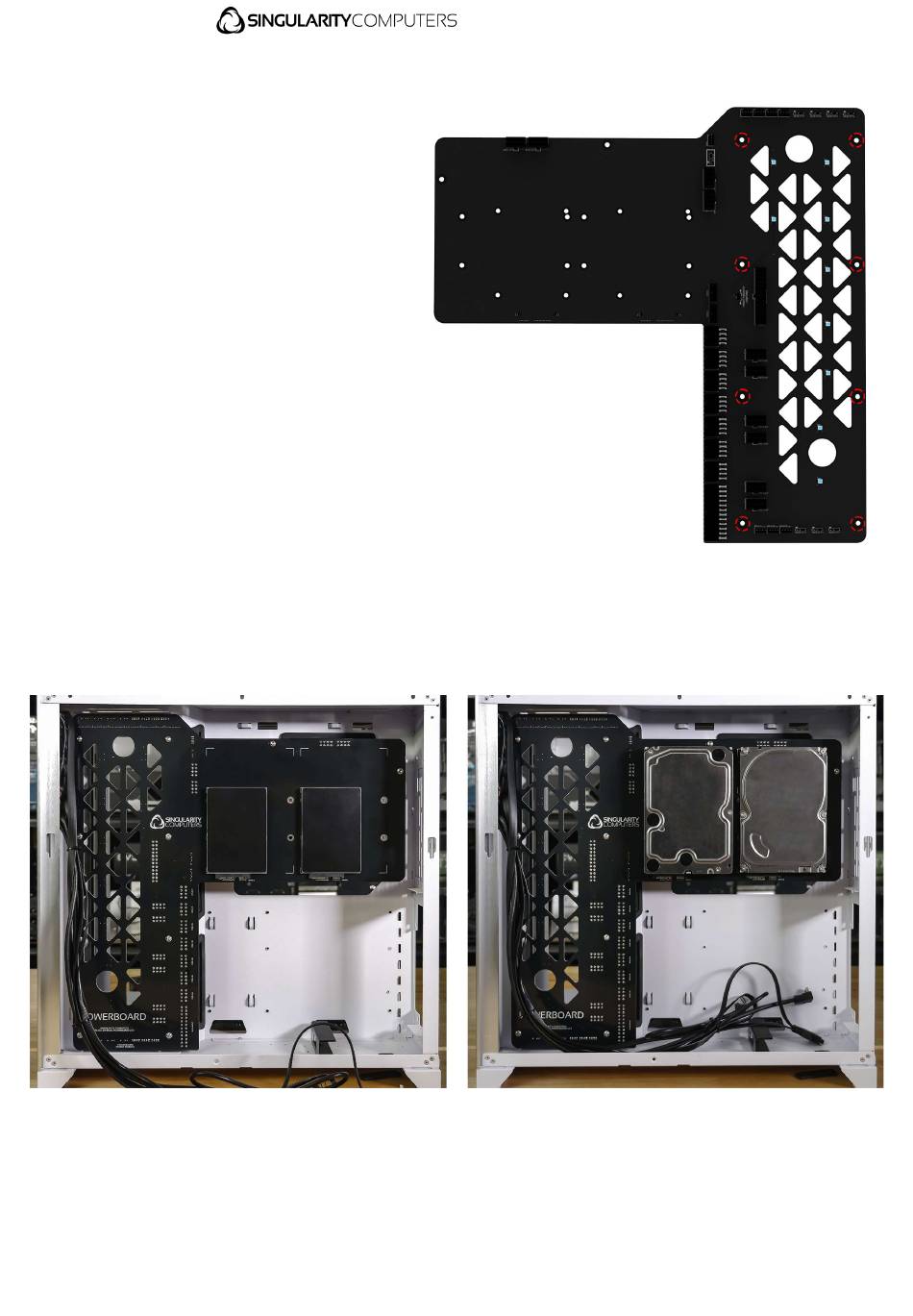

Step 3
Attach the 8x M4 Female Stand Off Brass
10mm front of the PowerBoard (the side
with the majority of the connectors).
Attach to the holes marked in the image
beside using 8x M4 x 6mm Button Head
Hex Stainless Steel Fasteners.
Step 4
Optionally you can use the 8x M3 x 4mm Button Head Hex Stainless Steel to install 2.5" drives or
SSDs. Or the 8x 6-32 x 0.25" Button Head Hex Black Steel to install 3.5" HDDs as shown in the
images below.
