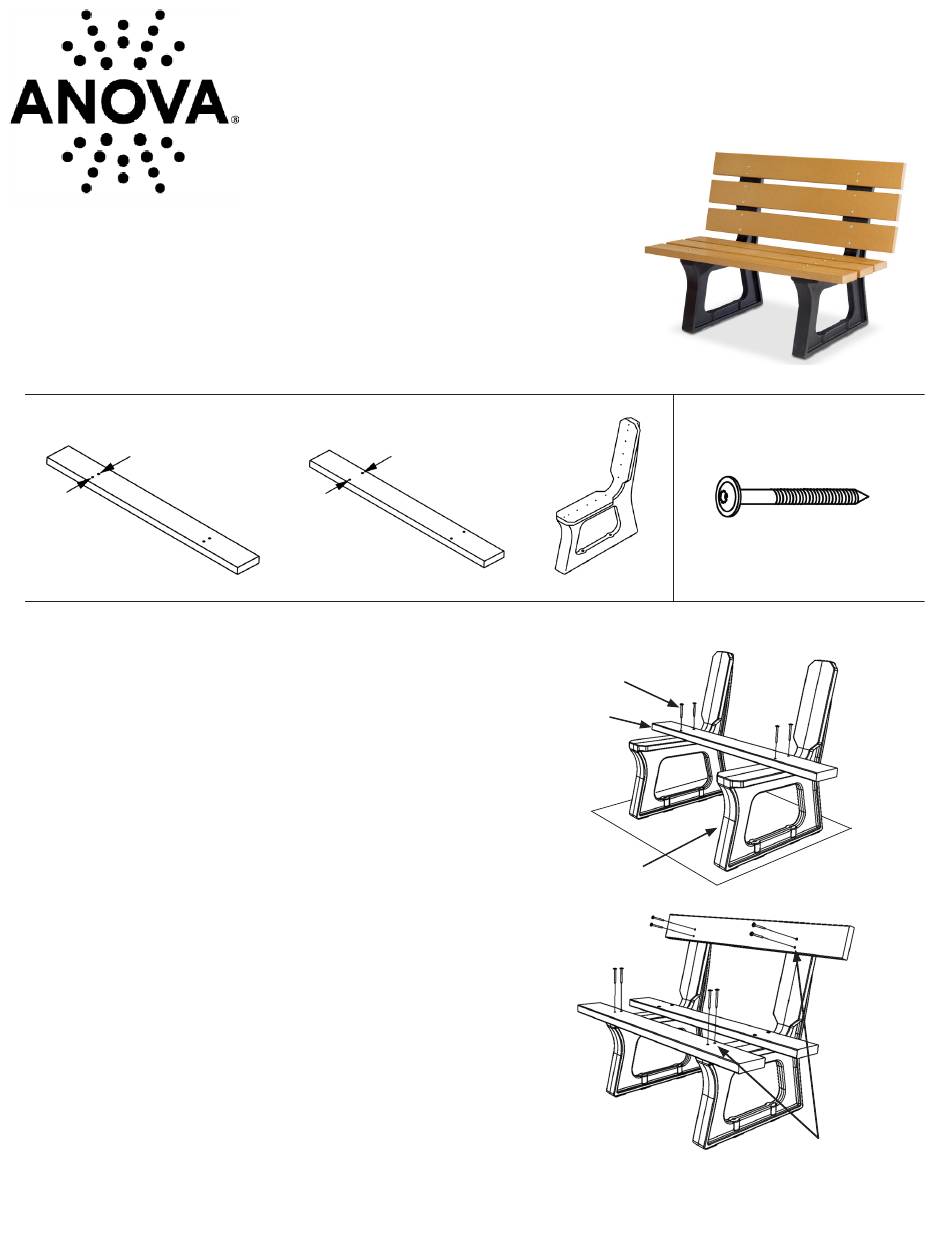

Anova RCPTC4 Assembly Instructions

anovafurnishings.com
888.535.5005 tel

TOOLS NEEDED:

• 18 Volt (or higher) Drill
• T30 Torx Bit

BENCH COMPONENTS:

1 1/2" between holes
(2) 2" X 6" Edge Planks

ASSEMBLY:

The assembly is a two-person operation
1. Inspect the shipping container contents for damage and to
determine that all components and hardware are present.
2. Lay all parts on a soft work surface or on the shipping
packaging to prevent damage to finish.
3. Locate one of the 2" x 6" inner planks and position the plank over
the innermost sets of predrilled holes in the bench supports. Make
sure the clearance holes in the plank align with the pilot holes in the
bench supports. Using the 18 volt drill and the T30 Torx bit, drive
one of the 1/4" X 3" washer head screws through the clearance hole
at one end of the plank and into the corresponding pilot hole in the
bench support until tight.
Align one clearance hole in the other end of the plank with the
appropriate pilot hole in the other bench support and install a
washer head screw in the same manner.
Install screws into the other two clearance holes in the plank in the
same manner.
4. Locate one of the edge planks and align the clearance holes in the
plank with the uppermost pairs of pilot holes in the bench supports.
Be sure to align the plank so that the pilot holes are closer to the
lower edge of the plank. Use the 18 volt drill and the Torx T30 bit to
drive four screws through the clearance holes into the pilot holes.
5. Locate the other edge plank and align the clearance holes in the
plank with the outermost pair of pilot holes in the bench support and
install four screws. Be sure to align the plank so that the pilot holes
are closer to the inner edge of the plank.
Assembly Instructions
Recycled
RCPTC4 - Recycled Plastic 4' Wide Plank Bench
4 1/2" between holes
(4) 2" X 6" Inner Planks
1/4" X 3" Torx Washer
Recycled Plastic 4' Wide Plank Bench
(2) Bench Supports
Head Screw
2" X 6"Inner Plank
Bench Support

ASSEMBLY HARDWARE:

(24) 1/4" X 3" Torx
Washer Head Screw
Orient the edge
planks with screws
toward the inside
of the bench
1
