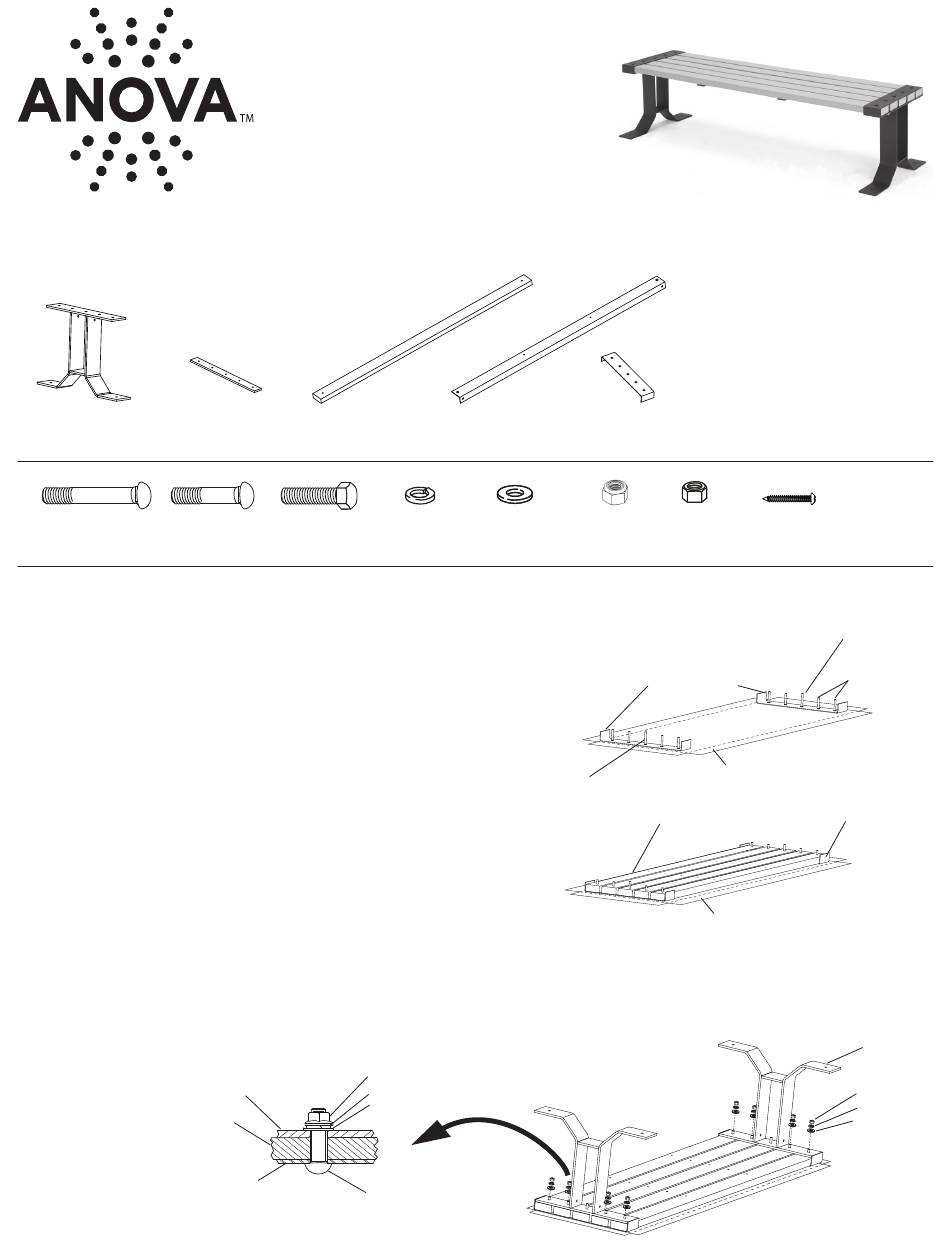

Anova RCPWF6 Assembly Instructions

anovafurnishings.com
888.535.5005 tel

bencH comPonents:

2 x
Bench Support Seat Brace

Assembly HArdwAre:

2 x
3/8" X 3.00" 3/8" X 2.25"
Carriage Bolt Carriage Bolt

Assembly:

The assembly is a two-person operation.
1. Inspect the shipping container contents for damage and to determine that all components and hardware are present.
2. Locate the two Seat End Caps and place them about 6 ft apart on the
packaging cardboard or other soft surface to avoid scratching the product.
Insert a 3" Carriage Bolt through the center hole in each End Cap.
Insert 2.25" Carriage Bolts through the other 4 holes in each of the End
Caps.
3. Place the five Seat Planks across the two Seat End Caps allowing the
Carriage Bolts to pass through the predrilled mounting holes.
NOTE: When laying out the Planks, make sure the face of the Planks with
the predrilled pilot holes faces upward.
4. Place a Bench Support over each end of the Planks allowing the carriage bolts to pass through the mounting holes.
Install a Flat Washer, Lock Washer, and Nut on each of the 2.25" Bolts. Tighten the hardware finger tight so adjustments can be
made later.
Bench Support
Seat Plank
Seat End Cap
Assembly InstructIons
rcPwf6

tools needed:

• 9/16" Open-end or Box-end Wrench
• Ratchet with 9/16" Socket
• 18v (or more) Driver with No. 3 Phillips Head Bit
2 x 5 x
Seat Plank
8 x 2 x
3/8" X 1.25"
Hex Head Bolt
Nylock Nut
Lock Washer
Flat Washer
2.25" long
Carriage Bolt
6 ft Flat Bench
1 x
Seat Support
8 x 14 x
3/8" 3/8"
Lock Washer Flat Washer
3" Long
Carriage Bolt
2 x
Seat End Cap
2 x 10 x
3/8-16 3/8-16 Phillips Head Screw
Nylock Nut Nut
Seat End Cap
packaging cardboard
or other soft surface
Seat Plank
packaging cardboard
or other soft surface
10 x
3.0" long
Carriage Bolt
2.25" long
Carriage Bolts
Seat End Cap
Bench
Support
Nylock Nut
Lock Washer
Flat Washer
