ADLINK Technology MECS-6110 User Manual

1u edge server with intel xeon d processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

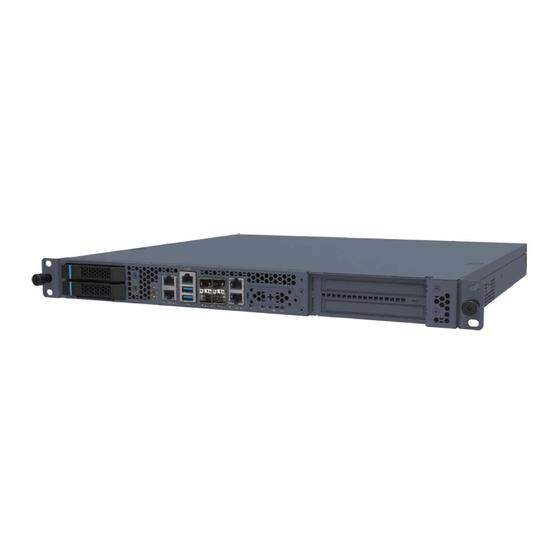

MECS-6110/6111
1U Edge Server
with Intel® Xeon® D Processor
User's Manual
Manual Rev.:
Revision Date:
Part No.:
Rev. 1.2
February 21, 2022
50M-00037-1020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MECS-6110 and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology MECS-6110

Summary of Contents for ADLINK Technology MECS-6110

  • Page 1 MECS-6110/6111 1U Edge Server with Intel® Xeon® D Processor User’s Manual Manual Rev.: Rev. 1.2 Revision Date: February 21, 2022 Part No.: 50M-00037-1020...

  • Page 2: Preface

    MECS-6110 Preface Copyright © 2022 ADLINK Technology, Inc. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 3 MECS-6110 Conventions Information to prevent minor physical injury, component damage, data loss, and/or program corruption when trying to complete a task. Informations destinées à prévenir les blessures corporelles mineures, les dommages aux composants, la perte de données et/ou la corruption mise en garde de programme lors de l'exécution d'une tâche.

  • Page 4: Table Of Contents

    Introduction ..........................6 Block Diagram.......................... 7 Mechanical Overview ....................... 8 1.3.1 MECS-6110 Front Panel........................8 1.3.2 MECS-6111 Front Panel ........................8 1.3.3 MECS-6110 Rear Panel ........................9 1.3.4 MECS-6111 Rear Panel........................9 1.3.5 MECS-6110 Internal Layout ......................10 1.3.6 MECS-6111 Internal Layout......................11 Mechanical Dimensions ......................12 2 Specifications ........................
  • Page 5 MECS-6110 5 BIOS Setup........................51 BIOS Setup Menu ........................51 5.1.1 Menu Selection Bar .........................51 5.1.2 Menu Conventions...........................52 Main Menu ..........................52 5.2.1 BIOS Information ..........................53 5.2.2 System Information..........................53 Advanced Menu ........................54 5.3.1 Sub-Menu: Trusted Computing......................55 5.3.2 Sub-Menu: AST2500 Super IO Configuration .................56 5.3.3...

  • Page 6: Overview

    1 Overview 1.1 Introduction The ADLINK MECS-6110 is a 1U 19" rackmount edge computing server with Intel® Xeon® processor System-on-Chip. The MECS-6110 features an IO intensive architecture with up to 2x PCIe x16 FHFL interfaces, 2x 2.5’’ SATA drive bays, 4x SFP+ ports. It also features IEEE 1588v2 Precision Time Protocol (PTP) and is an ideal platform for 5G mobile edge computing infrastructure deployment.

  • Page 7: Block Diagram

    MECS-6110 1.2 Block Diagram Intel® Xeon® D‐2100 PE1[15:0] PCIe 3.0 x16 Slot SATA 3.0 Flexible IO M.2 (M‐Key) 12,13 PCIe 3.0 x2 PCIe 3.0 x16 Slot PE2[15:0] SATA 3.0 M.2 (M‐Key) Flexible IO PCIe 3.0 x2 14,15 OCP PCIe x8...

  • Page 8: Mechanical Overview

    MECS-6110 1.3 Mechanical Overview 1.3.1 MECS-6110 Front Panel Console SATA Bay x2 Port 1PPS/TOD Port LEDs PCIe Expansion Slots x2 Power RJ45 x2 Button LEDs SFP+ x4 USB x2 Reset Button 1.3.2 MECS-6111 Front Panel Console Port 1PPS/TOD Port PCIe Expansion Slots x2...

  • Page 9: Mecs-6110 Rear Panel

    MECS-6110 1.3.3 MECS-6110 Rear Panel Grounding Redundant Fans Power Supply Stud 1.3.4 MECS-6111 Rear Panel Grounding Fans Stud...

  • Page 10: Mecs-6110 Internal Layout

    MECS-6110 1.3.5 MECS-6110 Internal Layout DDR4 DIMM x4 Fans PCIe 12V Power Conn. x2 M.2 SATA Slot PCIe x16 Gen3 FHFL x2 SATA Drive M.2 SATA Bay x2 Slot See 3.1 Removing the Chassis Cover on page 15 for instructions on removing the cover.

  • Page 11: Mecs-6111 Internal Layout

    MECS-6110 1.3.6 MECS-6111 Internal Layout DDR4 DIMM x4 Fans PCIe 12V Power Conn. x2 M.2 SATA Slot PCIe x16 Gen3 FHFL x2 M.2 SATA Slot See 3.1 Removing the Chassis Cover on page 15 for instructions on removing the cover.

  • Page 12: Mechanical Dimensions

    MECS-6110 1.4 Mechanical Dimensions Units: mm...

  • Page 13: Specifications

    MECS-6110 2 Specifications 2.1 MECS-6110 Specifications Main System Intel® Xeon® D-2177NT Processor 1.90GHz (14C/28T, 105W) Intel® Xeon® D-2183IT Processor 2.20GHz (16C/32T, 100W) Intel® Xeon® D-2187NT Processor 2.00GHz (16C/32T, 110W) Integrated on Intel® Xeon® D SoC Chipset 4x DDR4-2666 1DPC RDIMM sockets, ECC, REG, up to 256GB...
  • Page 14 MECS-6110 Storage 2x 2.5” hot-swappable SATA 6Gb/s (MECS-6110 only) Drive Bays 2x onboard M.2 NVME/SATA socket, 2242/2280 M Key Internal Mechanical & Environmental 1U 19’’ rackmount 438mm x 44mm x 420mm (WxHxD) Form Factor 6 fans, adaptive speed Fans 450W/600W 1+1 redundant PSUs...

  • Page 15: Getting Started

    MECS-6110 3 Getting Started 3.1 Removing the Chassis Cover Follow the instructions below to remove the chassis top cover. All installation procedures are restricted to skilled personnel. Toutes les procédures d'installation sont réservées au personnel qualifié. mise en garde 1. Loosen the two captive screws at the rear of the cover (arrows).

  • Page 16: Installing Memory Modules

    MECS-6110 3.2 Installing Memory Modules There are no limitations on installing memory modules in this device. Each slot can accept a memory module up to 64GB. All installation procedures are restricted to skilled personnel. Toutes les procédures d'installation sont réservées au personnel qualifié.

  • Page 17: Pcie Card Installation

    MECS-6110 3.3 PCIe Card Installation Sample installation instructions for FHFL PCIe expansion cards are described below. For detailed information on the specific installation procedures for your cards, please contact your ADLINK representative. All installation procedures are restricted to skilled personnel.
  • Page 18 MECS-6110 3. Remove the PCIe bracket blanking plates. 4. Loosen the two screws to remove the internal PCIe bracket used to secure the PCIe cards inside the chassis. The diagram shows the position of the bracket for full-length cards. Bracket mounting...
  • Page 19 MECS-6110 5. First install the lower PCIe expansion card. Align the tab on the bracket with the opening on the rear I/O panel (A), and insert the PCIe connector into the slot on the riser card (B). Make sure the connector is fully inserted into the PCIe slot.
  • Page 20 MECS-6110 6. Then install the upper PCIe expansion card, if required...
  • Page 21 MECS-6110 7. Replace the internal PCIe bracket, insert the PCIe cards into the slots (arrows), and tighten the two screws (circles) to secure the cards inside the chassis.
  • Page 22 MECS-6110 8. Replace the bracket to secure the PCIe I/O brackets to the chassis. 9. Secure the bracket with two screws as shown.

  • Page 23: Pcie Slot Secondary Power Supply

    MECS-6110 3.4 PCIe Slot Secondary Power Supply The MECS-6110 is equipped with two 4-pin ATX-type 12V power connectors on the mainboard (see 1.3.5 MECS-6110 Internal Layout on page 10) to provide secondary power for PCIe expansion cards if required. Two adapter cables are included. The pin definitions of the connectors and cables are described below.

  • Page 24: Rails Assembly And Rack Installation

    MECS-6110 3.5 Rails Assembly and Rack Installation...
  • Page 25 MECS-6110...
  • Page 26 MECS-6110...
  • Page 27 MECS-6110...

  • Page 28: Remove The Chassis From The Rack

    MECS-6110 3.6 Remove the Chassis from the Rack...

  • Page 29: Connecting The System To Ground

    3.7 Connecting the System to Ground AC Version The MECS-6110 is connected to ground by the ground pin of the 3-prong IEC power cord. Please use the power cord provided with the system for your region. A grounding stud (M4 size) is provided on the rear of the chassis for additional connection to ground.

  • Page 30: System Power Cable Installation

    MECS-6110 3.8 System Power Cable Installation AC PSU Input 3-prong IEC power cord DC PSU Input DC Negative: connect to -36V to -72V DC Positive: connect to RTN...

  • Page 31: Login To The Bmc Via Console Port

    Use the included RJ-45 to DB-9 console port adapter cable to connect the PC to the RJ-45 console port of the MECS-6110 (see 1.3.1 MECS-6110 Front Panel on page 8). See 4.4 Dual USB 3.0 and RJ-45 Console Port on page 45 for the adapter cable pin definition.
  • Page 32 MECS-6110 Step 3 Open a serial port console tool (such as PuTTY), choose the higher COM port (it may be different depending on the computer), then set the baud rate to 115200. Step 3 Input the user name “sysadmin” and password “superuser” to login to the system.

  • Page 33: Login To The Bmc Via Network

    MECS-6110 3.10 Login to the BMC via Network Step 1 Use a LAN cable to connect either eth0 or eth1 of the MECS-6110 to the PC; eth1 eth0 Step 2 Open a serial port console tool (such as PuTTY) enter the IP address, and open a...
  • Page 34 MECS-6110 Step 3 Input the user name “sysadmin” and password “superuser” to login to the system.

  • Page 35: Bmc Eth0 Default And Static Ip Settings

    MECS-6110 3.11 BMC eth0 Default and Static IP Settings The default IP setting is DHCP. Users can login to the BMC to modify the IP. Static IP Settings: Show the current LAN setting ipmitool lan print 1 • Set the IP source to static ipmitool lan set 1 ipsrc static •...

  • Page 36: Bmc Eth1 Default And Static Ip Settings

    MECS-6110 3.12 BMC eth1 Default and Static IP Settings The default IP setting is DHCP. Users can login to the BMC to modify the IP. Static IP Settings: Show the current LAN setting ipmitool lan print 8 • Set the IP source to static ipmitool lan set 8 ipsrc static •...

  • Page 37: Bios Update

    3. Copy the BMC FW package “BMC_MECS-6110_Release_Vx.xx” to the debug PC; Upgrade Procedure: 1. Check the IP of the BMC of MECS-6110. Power on the MECS-6110, boot the BMC to Linux (username: sysadmin; Passwd: superuser), and type “ifconfig” check its IP address.

  • Page 38: Updating Bios Via Host With Bios Tool

    MECS-6110 3.13.2 Updating BIOS via Host with BIOS Tool 1. Boot/Login to Shell 2. Update the BIOS over host with the following commands. Example: AfuEfix64 BIOS.ROM /p /b /n /x (to update BIOS without ME) AfuExfi64 BIOS.BIN /p /b /n /x /me (to update the entire BIOS)

  • Page 39: Bmc Firmware Update Via Network

    3. Copy the BMC FW package “BMC_MECS-6110_Release_Vx.xx” to the debug PC; Upgrade Procedure: 1. Check the IP of the BMC of MECS-6110. Power on the MECS-6110, boot the BMC to Linux (username: sysadmin; Passwd: superuser), and type “ifconfig” check its IP address.

  • Page 40: Bmc Firmware Update Via Host With Yafuflash

    MECS-6110 3.15 BMC Firmware Update via Host with Yafuflash The MECS-6110 supports a BMC Chassis Management firmware, IPMI v2.0 compliant. To update the BMC firmware via host with Yafuflash, perform the following steps. 1. Login to the OS with root user permission.

  • Page 41: Enter Bios Setup

    3.16 Enter BIOS Setup To enter the BIOS setup screen, follow these steps: 1. Power on the MECS-6110. Press the <Delete> or <ESC> key on your keyboard when you see the following text prompt: “Press DEL or ESC to enter Setup”.

  • Page 42: System Interfaces

    MECS-6110 4 System Interfaces Console Port UID Button and LED 1PPS/TOD Ports Power LED Alert LED HDD LED USB x2 SFP+ x4 GbE x2 Power Reset Health Button Button Behavior 4.1 Status LEDs Power LED (green) The Power LED will light when the system is booted up (S0 state).

  • Page 43: Lan Ports

    MECS-6110 4.2 LAN Ports Pin # Signal MDI_P0 MDI_N0 MDI_P1 MDI_N1 MDI_P2 MDI_N2 MDI_P3 MDI_N3 LED1 LED2 LAN LED Behaviour The LAN LEDs are integrated into the RJ-45 connector. Their behavior is as follows: The LED1 (Speed) indicates the speed of the LAN connection.

  • Page 44: Sfp+ Ports

    MECS-6110 4.3 SFP+ Ports Signal Name TX_FAULT TX_DSBL MOD_ABS RX_,OS VCCR VCCT SFP+ LED Behaviour Link Link Status Activity The LEDs point to the respective port. Status Behavior Link up Yellow (steady) Link Status Link down Active Green (blinking) Link Activity...

  • Page 45: Dual Usb 3.0 And Rj-45 Console Port

    4.4 Dual USB 3.0 and RJ-45 Console Port Signal Name COM_TXD COM_RXD USB2_N USB2_P SSRX_N SSRX_P SSTX_N SSTX_P USB2_N USB2_P SSRX_N SSRX_P SSTX_N SSTX_P The MECS-6110 comes with an RJ-45 to DB-9 console port adapter cable. DB-9 Pin Signal — —...

  • Page 46: 1Pps/Tod Connector

    MECS-6110 4.5 1PPS/TOD Connector Signal Signal Pin # (Upper) (Lower) 1PPS_TXD_N 1PPS_RXD_N 1PPS_TXD_P 1PPS_RXD_P TOD_TXD_N TOD_RXD_N TOD_TXD_P TOD_RXD_P...

  • Page 47: Hdd/User Led Jumper

    MECS-6110 4.6 HDD/User LED Jumper The HDD/User LED Jumper (CN39) can be used to set the function of the Drive Activity LED (default is Drive Activity). CN25 Setting SATA Drive Activity (default) User Defined 4.7 User LED Commands 4.7.1 OEM ADLINK Set LED Status...

  • Page 48: Oem Adlink Get Led Status

    MECS-6110 4.7.2 OEM ADLINK Get LED Status NetFn=2Eh, Cmd=11h Byte Data Field ADLINK Manufacturer ID – 005F13h, LS byte first. LED ID: 01h= UID LED (blue, UID led) 02h = USR LED (yellow, HDD shared) 03h = Alert LED (red)

  • Page 49: Board Layout

    MECS-6110 4.8 Board Layout CN44 CN45 CN43 CN32 FAN6 FAN5 FAN3 FAN4 PC342 PC19 PC23 PC114 PU19 PC108 PR301 PU18 PTC23 PR305 PL17 PC373 PC370 PTC1 PTC3 PTC4 PTC6 PC377 PC369 PC375 PC372 MECS-6110 51-31824-0A20 BIOS_CN2 CN52 PCIE1 CN49 CN50...
  • Page 50 DDR4 Socket 1 Primary BIOS SPI Flash DDR4 Socket 2 Secondary BIOS SPI Flash Debug Port (Port 80) OCP Connectors BMC/MECS-6110 LAN RJ-45 PCIe x32 Connector Console Port RJ-45 + USB 3.0 1PPS+TOD Ports M.2 Slot Clear CMOS Jumper (CN25)

  • Page 51: Bios Setup

    MECS-6110 5 BIOS Setup 5.1 BIOS Setup Menu The BIOS setup utility is invoked by pressing <ESC> or <DEL> keys. User can change BIOS settings during setup utility runs. A system reset is required for new settings to take effect.

  • Page 52: Menu Conventions

    MECS-6110 5.1.2 Menu Conventions The appearance of the setup menu listed in this chapter is a sample to describe the item list. It is shown on a VT100 terminal via serial console. The menu conventions are as follows. Using color The mandatory BIOS setup fields are in black.

  • Page 53: Bios Information

    MECS-6110 5.2.1 BIOS Information BIOS Item Options Description BIOS Vendor Display vendor name of system BIOS. Info-only. American Megatrends BIOS Version Display version of booting BIOS. Info-only. x.yy.zz Build Date It shows the date that BIOS was built. Info-only. MM/DD/YYYY...

  • Page 54: Advanced Menu

    MECS-6110 5.3 Advanced Menu This menu contains the settings for most of the user interfaces in the system. BIOS Item Options Description Trusted Computing For TPM setting Sub-Menu AST2500 Super IO For System Super IO configuration Sub-Menu Configuration For configuring serial console.

  • Page 55: Sub-Menu: Trusted Computing

    MECS-6110 5.3.1 Sub-Menu: Trusted Computing BIOS Item Options Description Security Device Disabled Enable or Disable security device, such as TPM Enabled...

  • Page 56: Sub-Menu: Ast2500 Super Io Configuration

    MECS-6110 5.3.2 Sub-Menu: AST2500 Super IO Configuration BIOS Item Options Description Serial Port Disabled To enable or disable serial Port. Enabled Device Settings Show serial port IO address and Info-only IRQ source Change Settings Auto Select optimal resource for SIO IO=3F8h;...

  • Page 57: Sub-Menu: Serial Port Console Redirection

    MECS-6110 5.3.3 Sub-Menu: Serial Port Console Redirection BIOS Item Options Description Console Redirection Enable or disable serial port Enabled Disabled console redirection function. Console Redirection For configuring serial port settings Sub-Menu Settings when console redirection function is enabled.
  • Page 58 MECS-6110 BIOS Item Options Description Terminal Type VT100 Configure the type of console VT100+ emulation. VT-UTF8 Emulation: ANSI: Extended ASCII char set. ANSI VT100: ASCII char set. VT100+: Extends VT100 to support color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes.

  • Page 59: Sub-Menu: Pci Subsystem Settings

    MECS-6110 5.3.4 Sub-Menu: PCI Subsystem Settings BIOS Item Options Description Above 4G Decoding Disabled To enable or disable decoded in above 4G address Spacd. Enabled SR-IOV Support Enable or disable Single Root IO Disabled Enabled virtualization support BME DMA Mitigation...

  • Page 60: Sub-Menu: Network Stack Configuration

    MECS-6110 5.3.5 Sub-Menu: Network Stack Configuration BIOS Item Options Description Network Stack To enable or disable network stack. Disabled Enabled...

  • Page 61: Sub-Menu: Csm Configuration

    MECS-6110 5.3.6 Sub-Menu: CSM Configuration BIOS Item Description Options CSM Support Disabled To enable or disable CSM Support. Enabled CSM16 Module Version To show CSM module version Info Only Boot option filter Controls Legacy/UEFI Roms priority UEFI and Legacy Legacy only...

  • Page 62: Sub-Menu: Nvme Configuration

    MECS-6110 5.3.7 Sub-Menu: NVMe Configuration...

  • Page 63: Sub-Menu: Oem Ipmi Settings

    MECS-6110 5.3.8 Sub-Menu: OEM IPMI Settings BIOS Item Options Description POST Watchdog Timer Disabled Enable or Disable POST watchdog timer Enabled POST Watchdog 3 minutes Select the time value for POST Timeout 4 minutes watchdog timer Expiration value 5 minutes...

  • Page 64: Sub-Menu: Intel(R) I210 Gigabit Network Connection

    MECS-6110 5.3.9 Sub-Menu: Intel(R) I210 Gigabit Network Connection This setup page is shown when “Network” setting in Boot page is set to “UEFI”. When the BIOS boots the system, it will launch the onboard Ethernet I210 controller’s UEFI driver. The driver provides a setup page for configuring Ethernet parameters and shows information about Ethernet controller.

  • Page 65: Sub-Menu: Intel(R) Ethernet Connection X722 For 10Gbe

    MECS-6110 5.3.10 Sub-Menu: Intel(R) Ethernet Connection X722 for 10GbE BIOS Item Options Description Firware Image View device firmware version As below Properties NIC Configuration For configuring link speed and wake function.

  • Page 66: Chipset Menu

    MECS-6110 5.4 Chipset Menu 5.4.1 System Agent (SA) Configuration...

  • Page 67: Sub-Menu: Cpu Configuration

    MECS-6110 5.4.2 Sub-Menu: CPU Configuration BIOS Item Options Description CPU string To show CPU info Info only Hyper-Threading [ALL] To enable or disable logical processor Disable Enable threads Intel Virtualization To enable or disable Intel Virtualization Enable Technology Disable Technology...

  • Page 68: Sub-Menu: Memory Configuration

    MECS-6110 5.4.3 Sub-Menu: Memory Configuration BIOS Item Options Description Memory Frequency To select maximum memory frequency Auto 1000 1066 1200 ..Attempt Fast Boot To enable or disable skip memory Auto Disable reference code on warm boots, Auto is Enable...
  • Page 69 MECS-6110 5.4.3.1. Sub-Menu: Memory Topology BIOS Item Options Description SocketX.ChX.DimmX To show channel /dimm spd info Info only 5.4.3.2. Sub-Menu: Memory Timings Override BIOS Item Options Description XMP Profile To enable or disable Intel Extreme Disable Enable Memory Profiles to support memory...

  • Page 70: Sub-Menu: Iio Configuration

    MECS-6110 5.4.4 Sub-Menu: IIO Configuration...
  • Page 71 MECS-6110 5.4.4.1. Sub-Menu:Socket0 Configuration BIOS Item Options Description IOU0 (IIO PCIe Br1) X4x4x4x4 Selects PCIe port bifurcation for riser X4x4x8 card upstream port ,auto is x16 X8x4x4 X8x8 Auto IOU0 (IIO PCIe Br2) X4x4x4x4 Selects PCIe port bifurcation for riser...
  • Page 72 MECS-6110 5.4.4.2. Socket0 PcieBrxDxxx BIOS Item Options Description PCI-E Port To enable or disable PCI-E Port, Auto Auto Disable is enable Enable Link Speed Choose Link Speed ,Auto is Gen3 Auto Gen 1 (2.5 GT/s) Gen 2 (5 GT/s) Gen 3 (8 GT/s)

  • Page 73: Sub-Menu: Intel(R) Vt For Directed I/O (Vt-D)

    MECS-6110 5.4.5 Sub-Menu: Intel(R) VT for Directed I/O (vt-d) BIOS Item Options Description Intel. VT for Directed I/O To enable or disable Intel Virtualization Disable (VT-d) Enable Technology for Directed I/O...

  • Page 74: Pch-Io Configuration

    MECS-6110 5.4.6 PCH-IO Configuration 5.4.7 Sub-Menu: PCH Configuration...
  • Page 75 MECS-6110 5.4.7.1. Sub-Menu: PCH Devices BIOS Item Options Description Serial IRQ Mode Quiet Configure Serial IRQ Mode Continuous Exrernal SSC Enable – To enable or disable Spread Spectrum Disable CK420 Enable PCH state after G3 Select S0/S5 power state after a G3...
  • Page 76 MECS-6110 5.4.7.2. Sub-Menu: PCH sSATA Configuration BIOS Item Options Description sSATA Controller For controlling sSATA controller’s Enable Disable enabling/disabling. Configure sSATA as For sSATA operating mode setting. AHCI RAID SATA test mode Enable To Enable/Disable SATA test mode Disable SATA Mode options...

  • Page 77: Sub-Menu: Server Me Information

    MECS-6110 5.4.8 Sub-Menu: Server ME Information...

  • Page 78: Security Menu

    MECS-6110 Security Menu This menu contains the settings for system security. BIOS Item Options Description Administrator Password Configure/Clear Administrator Enter to set Password. password When pressing enter, a menu will be popped up for creating new password. When password installed, press enter without inputting password, it will clear password.

  • Page 79: Boot Menu

    MECS-6110 5.6 Boot Menu This menu contains the settings for bootable devices in the system. BIOS Item Options Description Setup Prompt Timeout Number of seconds to wait for setup activation Bootup NumLock State Quiet Boot Enabled Disabled Boot mode select Legacy Select boot mode, Legacy/UEFI.

  • Page 80: Save & Exit Menu

    MECS-6110 5.7 Save & Exit Menu BIOS Item Options Description Save Changes and Exit Save changed settings and exit BIOS Enter setup utility. Discard Changes and Skip changed setting and exit BIOS Enter Exit setup utility. Save Changes and Save all changed settings and let system...

  • Page 81: Server Mgmt Menu

    MECS-6110 5.8 Server Mgmt Menu BIOS Item Options Description BMC Self Test Status To show BMC self test status Info-only BMC Device ID To show BMC Device ID Info-only BMC Device Revision To show BMC Device Revision Info-only BMC Firmware Revison...

  • Page 82: Sub-Menu: System Event Log

    MECS-6110 5.8.1 Sub-Menu: System Event Log BIOS Item Options Description SEL Components To enable or disable event logging for Enabled Disabled error codes during boot Erase SEL Choose options for erasing SEL Yes, on next reset Yes, on every reset...

  • Page 83: Sub-Menu: Bmc Self-Test Log

    MECS-6110 5.8.2 Sub-Menu: BMC Self-test Log BIOS Item Options Description Log area usage = 00 out Log area usage numbers Read only of 20 logs Erase Log Erase Log Options Yes, on every reset When log is Full Select the action to be taken when log is...

  • Page 84: Sub-Menu: Bmc Network Configuration

    MECS-6110 5.8.3 Sub-Menu: BMC Network Configuration BIOS Item Options Description Configure IPV4 support Read only Configuration Address Select to configure LAN channel Unspecified source Static parameters statically or dynamically(by DynamicBmcDhcp BIOS or BMC). Unspecified option will not DynamicBmcNonDhcp modify any BMC network parameters...

  • Page 85: Sub-Menu: Bmc User Settings

    MECS-6110 5.8.4 Sub-Menu: BMC User Settings BIOS Item Options Description Add User Press <Enter> to Add a User Sub Menu Delete User Press <Enter> to Delete a User Sub Menu Change User Settings Press <Enter> to Change User Settings Sub Menu...
  • Page 86 MECS-6110 5.8.4.1. Sub-Menu: Add User BIOS Item Options Description User Name Enter BMC User Name Enter to set user name User Password Enter BMC User Password Enter to set password User Access Enable/Disable the BMC User's Access Disable Enable Channel No...
  • Page 87 MECS-6110 5.8.4.2. Sub-Menu: Delete User BIOS Item Options Description User Name Enter BMC User Name Enter to set user name User Password Enter BMC User Password Enter to set password...
  • Page 88 MECS-6110 5.8.4.3. Sub-Menu: Change User Setting BIOS Item Options Description User Name Enter BMC User Name Enter to set user name User Password Enter BMC User Password Enter to set password User Access Enable/Disable the BMC User's Access Disable Enable...

  • Page 89: Important Safety Instructions

    MECS-6110 Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. 1. Read these safety instructions carefully. 2. Keep this user’s manual for future reference.
  • Page 90 MECS-6110 9. This equipment is not suitable for use in locations where children are likely to be present. 10. Equipment must be serviced by authorized technicians when: The power cord or plug is damaged; • Liquid has penetrated the equipment;...

  • Page 91: Consignes De Sécurité Importantes

    MECS-6110 Consignes de Sécurité Importantes Pour assurer la sécurité de l’utilisateur, veuillez lire et suivre toutes les directives, ainsi que les AVERTISSEMENTS, MISES EN GARDE et REMARQUES de ce manuel et indiqués sur l’équipement associé avant de manipuler ou utiliser l’équipement.
  • Page 92 MECS-6110 8. Une pile au lithium peut être installée pour assurer l’alimentation de secours ou d’urgence en continu. Risque d'explosion si la batterie est remplacée par une batterie d'un type incorrect. Jetez les piles usagées conformément aux instructions du fabricant.

  • Page 93: Getting Service
